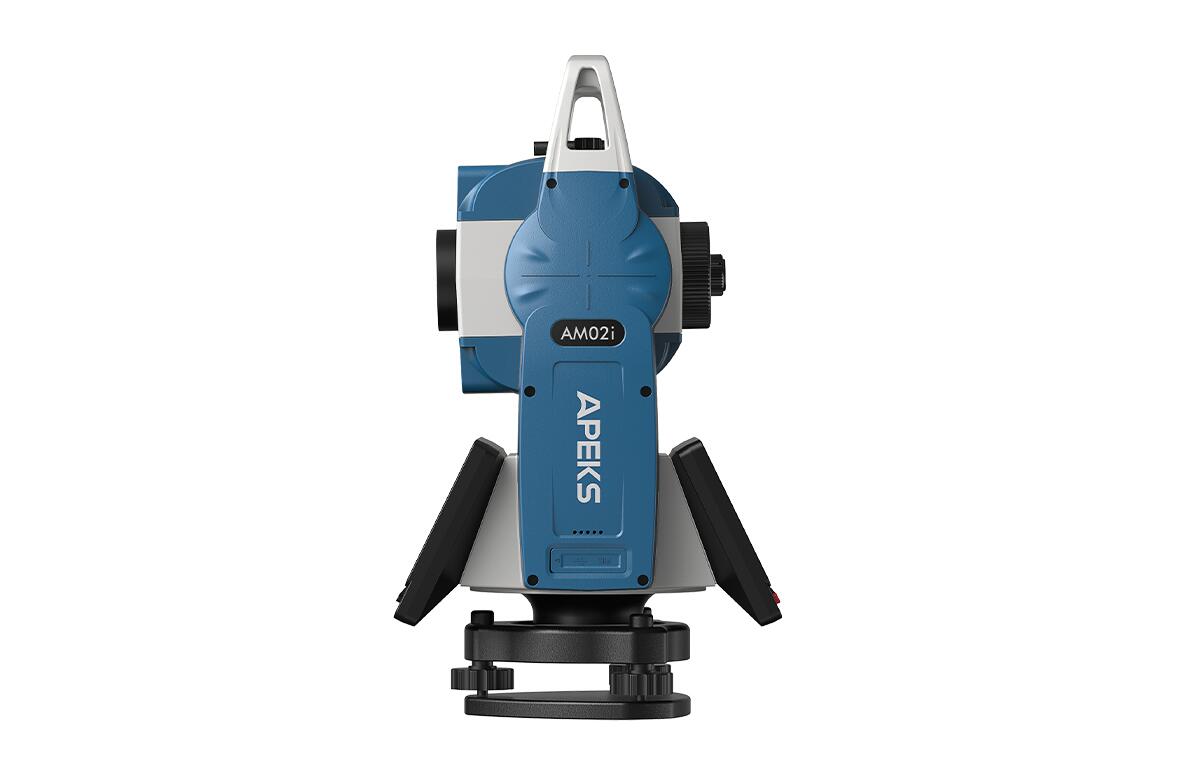

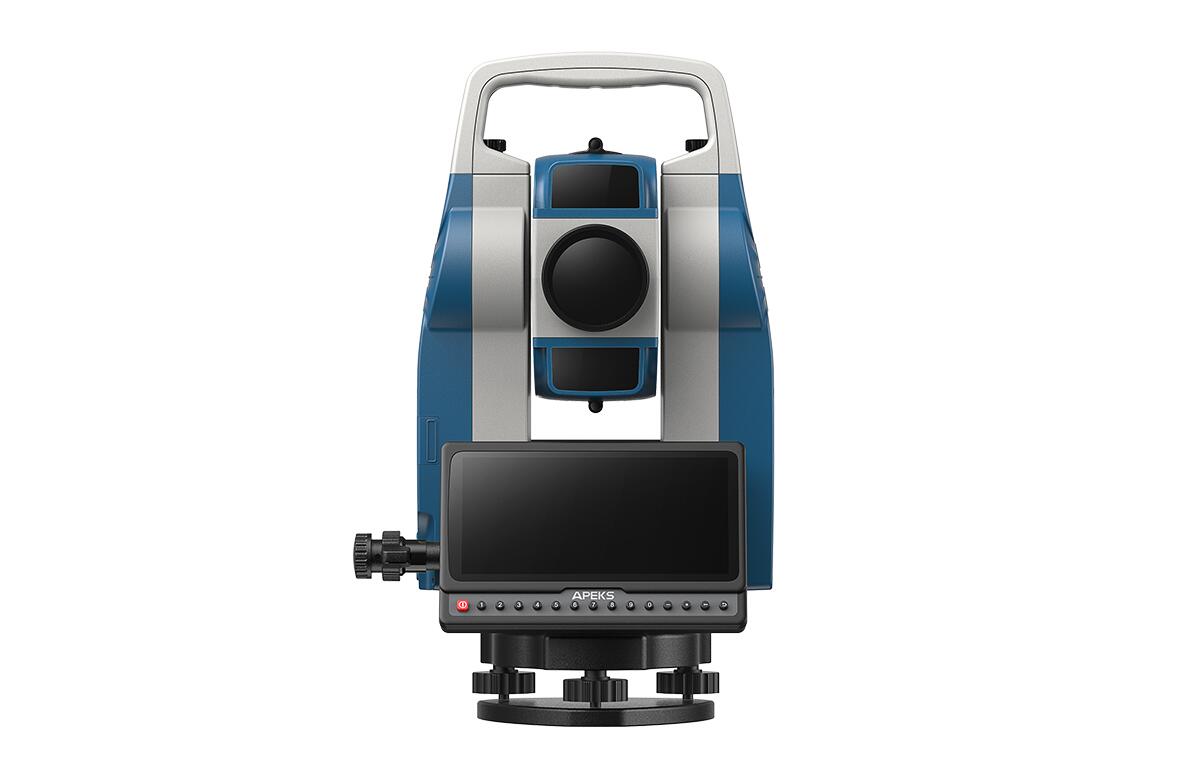

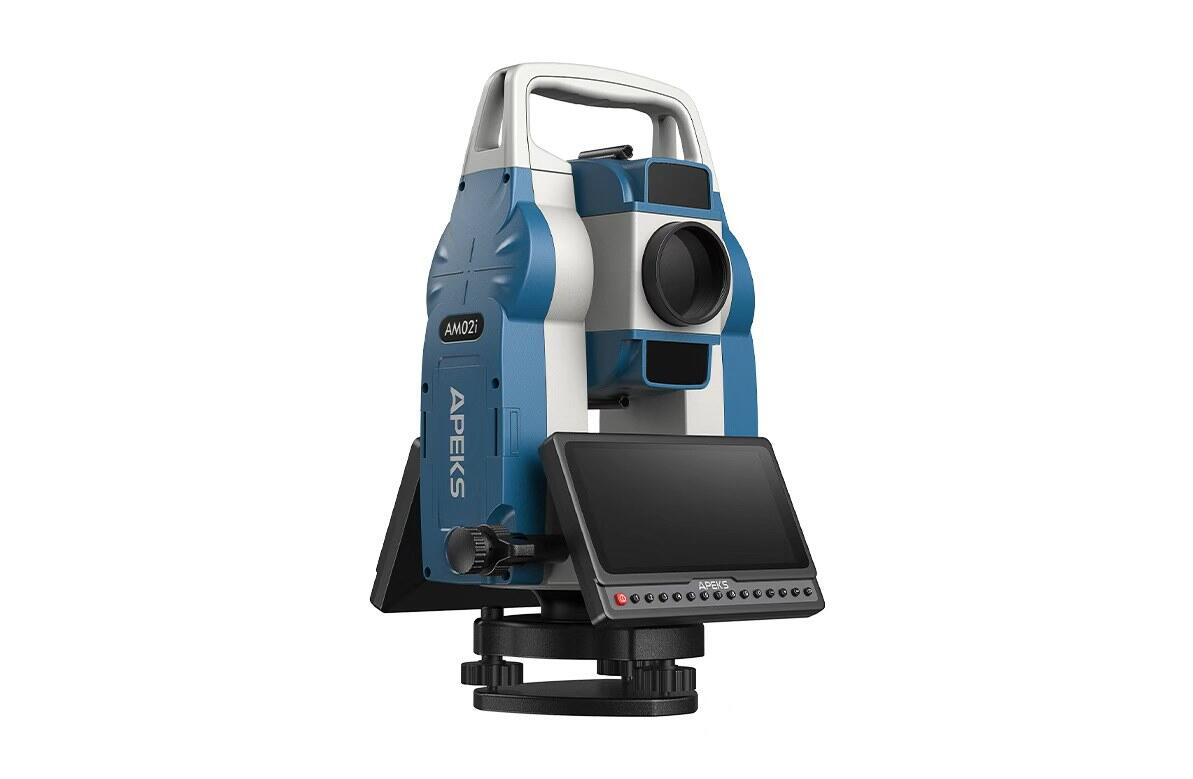

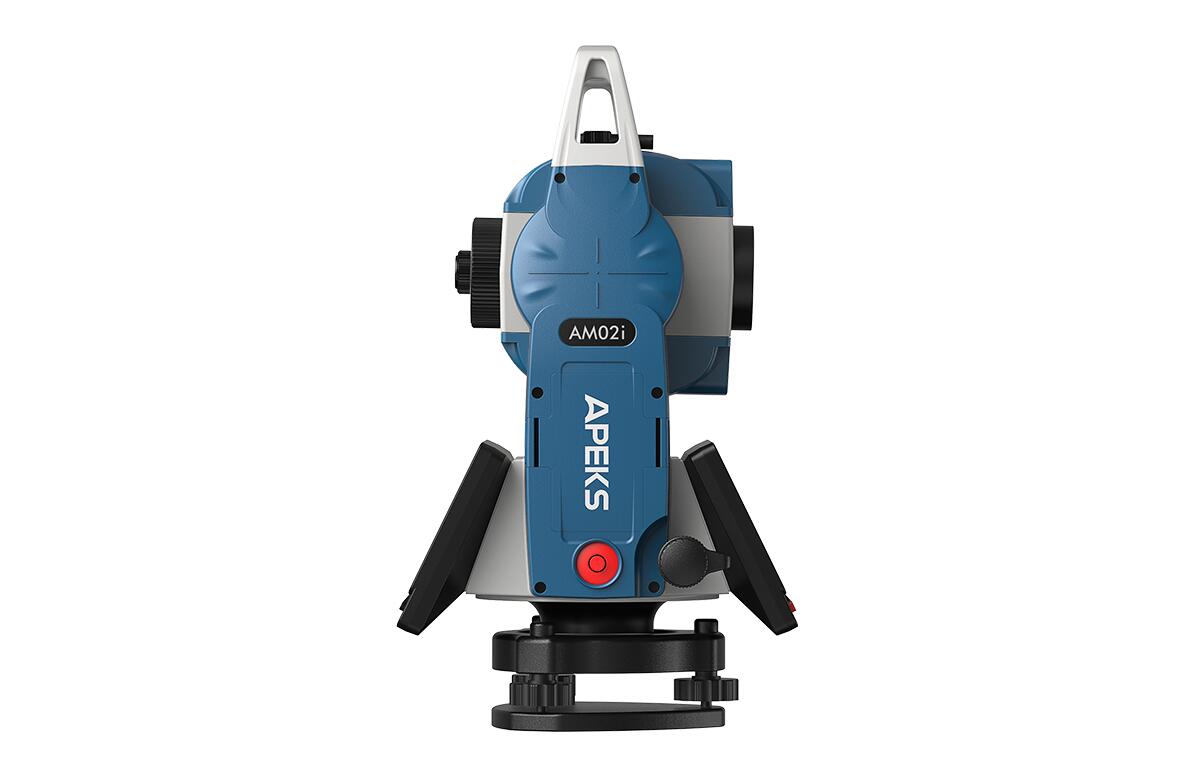

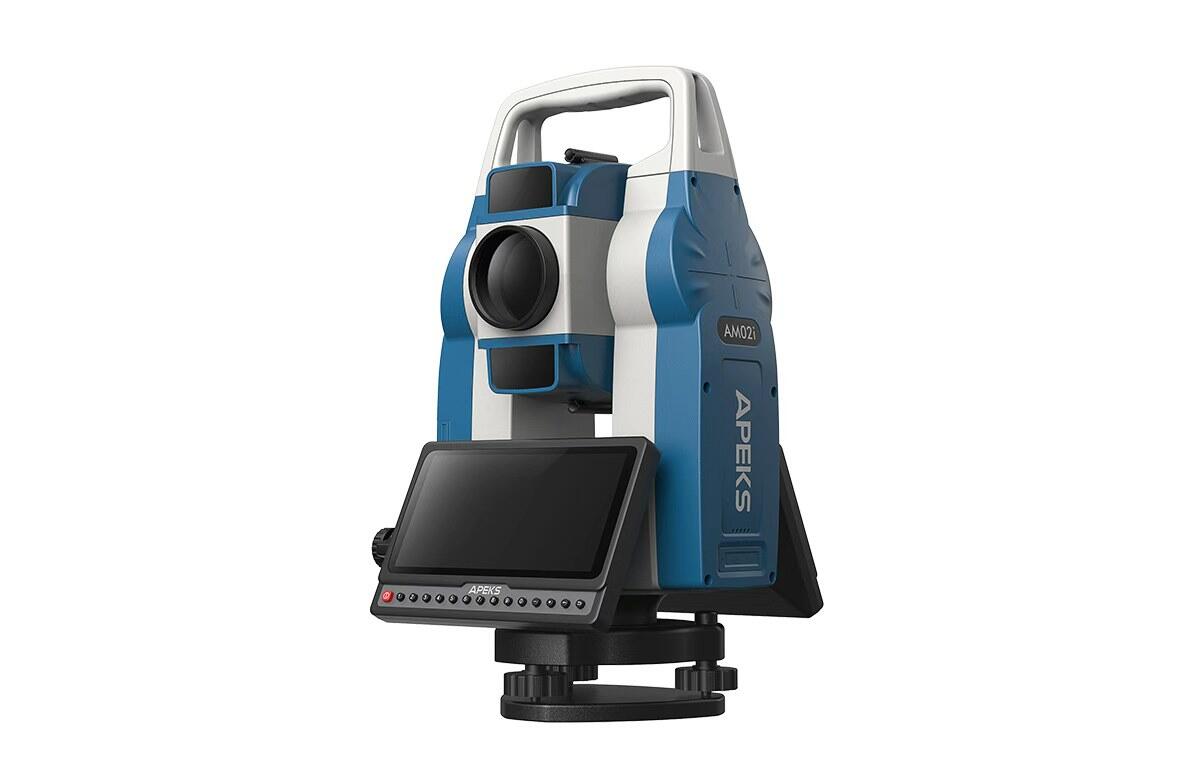

Apeks AM02i Android Total Station 30X Magnification - China Suppliers & Factory, 1000m Non-Prism Surveying Tool
Angle Measurement
Angle Accuracy
2''
Measurement Method
Absolute Encoding
Display Resolution
1″
Distance Measurement
Range
Reflectorless: 1000 m
Reflective sheet: 2000 m
Single prism: 4000 m
Reflective sheet: 2000 m
Single prism: 4000 m
Accuracy
Prism group: ±(2mm+2ppm)
Reflectorless: ±(3mm+2ppm)
Reflective sheet: ±(3mm+2ppm)
Reflectorless: ±(3mm+2ppm)
Reflective sheet: ±(3mm+2ppm)
Measurement Time
Initial fine measurement: < 0.7s
Rapid measurement: < 0.5s
Tracking measurement: < 0.3s
Rapid measurement: < 0.5s
Tracking measurement: < 0.3s
Minimum Display
Measure and track: 0.1mm
Telescope
Erect
Magnification
30X
Field of View
1°30′
Minimum Focus
1.7m
Resolution
2.8''
Compensator & Vial
System
Dual-Axis Compensation
Comp. Range
±4'
Setting Precision
±6''
Trigger
Under battery house
Tube Level
30″ / 2 mm
Circular Vial
8′ / 2 mm
Laser Plummet
Red laser 635nm
Communication
OS / CPU
Android 14 / MT6769
Storage
4GB RAM + 64GB ROM
Interface
1x Nano sim slot, 1x Type-C, 1x USB2.0
Bluetooth / Wifi
BT5.0 BLE
WLAN 1×1 802.11a/b/g/n/ac (Dual Band 2.4 & 5GHz)
WLAN 1×1 802.11a/b/g/n/ac (Dual Band 2.4 & 5GHz)
Network Bands
GSM: 850/900/1800/1900
WCDMA: B1/B2/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28/B66
WCDMA: B1/B2/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28/B66
Display & Battery
Display Type
Dual-side LCD graphic touch screen
Size & Res
6'' / 1280*720
Graphic Display
Max: 99999999.999 m
Min: 0.1 mm
Min: 0.1 mm
Battery Capacity
Rechargeable Li-ion battery
7.2V (DC) / 7000mAh
7.2V (DC) / 7000mAh
Working Hours
10 hours
Environment, Size & Weight
Operating Temp.
-20℃ ~+50℃ (-4℉ to +122℉)
Storage Temp.
-40℃ ~+50℃ (-40℉ to + 122℉)
Temp & Press
Auto correction
Dust & Waterproof
IP55, 95%, non-condensing
Dimensions
200 x 200 x 355 mm
(7.68 x 7.28 x 14.37 in)
(7.68 x 7.28 x 14.37 in)
Weight
5.6kg
Frequently Asked Questions
What is the measurement range and accuracy of this instrument?
The instrument features a long-range distance measurement capability: up to 1000 meters reflectorless, 2000 meters with a reflective sheet, and up to 4000 meters using a single prism. The measurement accuracy is ±(2mm+2ppm) for a prism group, and ±(3mm+2ppm) for both reflectorless and reflective sheet measurements.
How fast can the device perform distance measurements?
The device offers ultra-fast measurement times. The initial fine measurement takes less than 0.7 seconds, rapid measurements take less than 0.5 seconds, and continuous tracking measurements take less than 0.3 seconds.
What operating system and hardware specifications does it have?
The instrument is powered by Android 14 running on an MT6769 CPU. It comes equipped with 4GB RAM + 64GB ROM storage for processing and saving geographic and measurement data.
What are the display and interface capabilities?
It features a dual-side 6-inch LCD graphic touch screen with a 1280*720 resolution. For connectivity, it supports Bluetooth 5.0 BLE, Dual-Band Wi-Fi (2.4 & 5GHz), and cellular networks (2G/3G/4G LTE) via a Nano SIM slot. It also includes Type-C and USB 2.0 interface ports.
What is the battery life and environmental durability rating?
Equipped with a rechargeable 7.2V / 7000mAh Li-ion battery, the device provides up to 10 hours of continuous working time. It has an IP55 dust and water protection rating and operates reliably in temperatures ranging from -20℃ to +50℃.
