Navigate with Precision Efficiency Meets Affordability

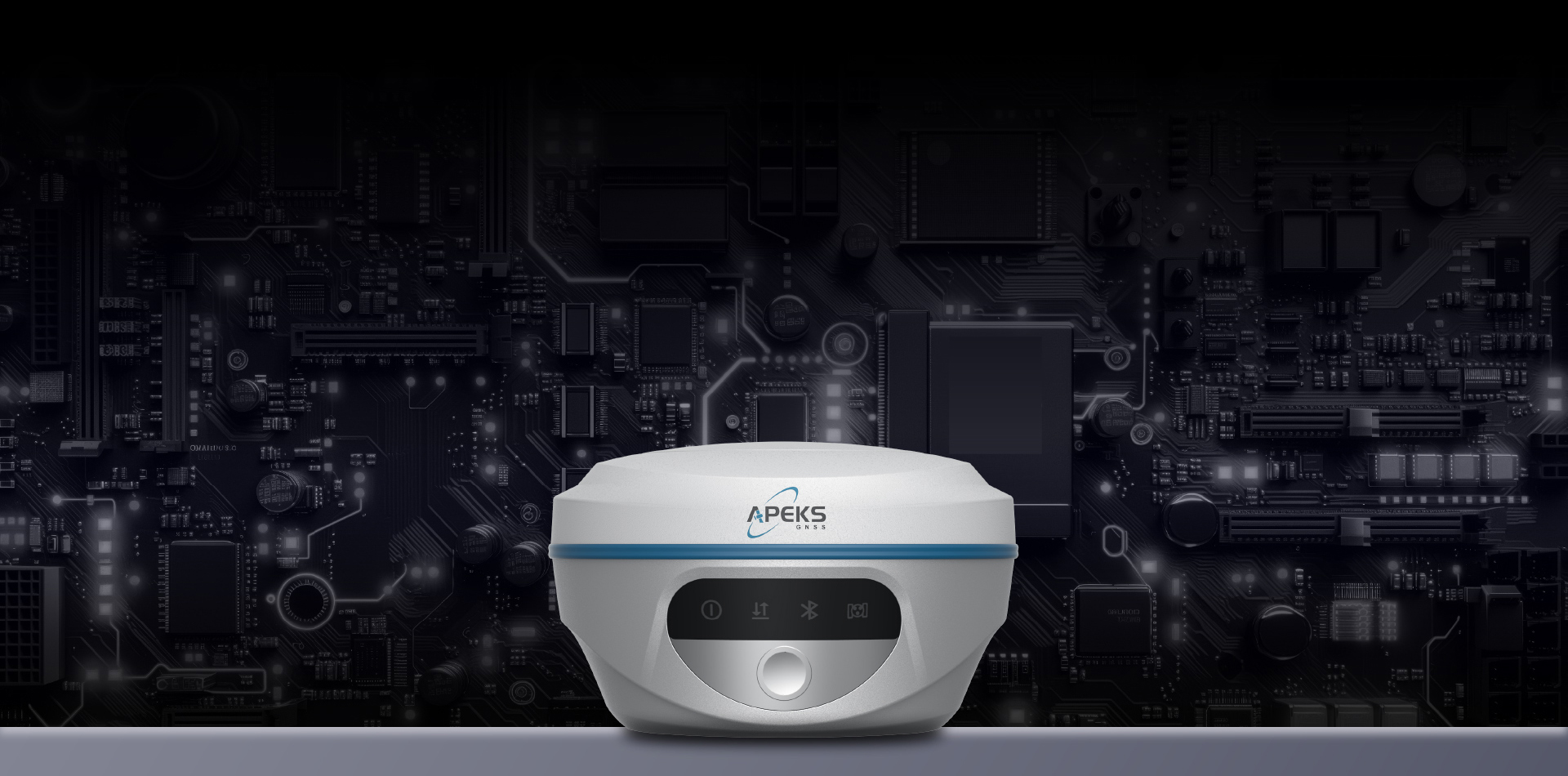

AP10 GNSS is a powerful and cost-effective GNSS receiver. It is a highly productive rtk for surveying and stakeout in any topographic, mapping or construction site applications.
1408 channels GNSS
Up to120° IMU
Rugged and Durable Design

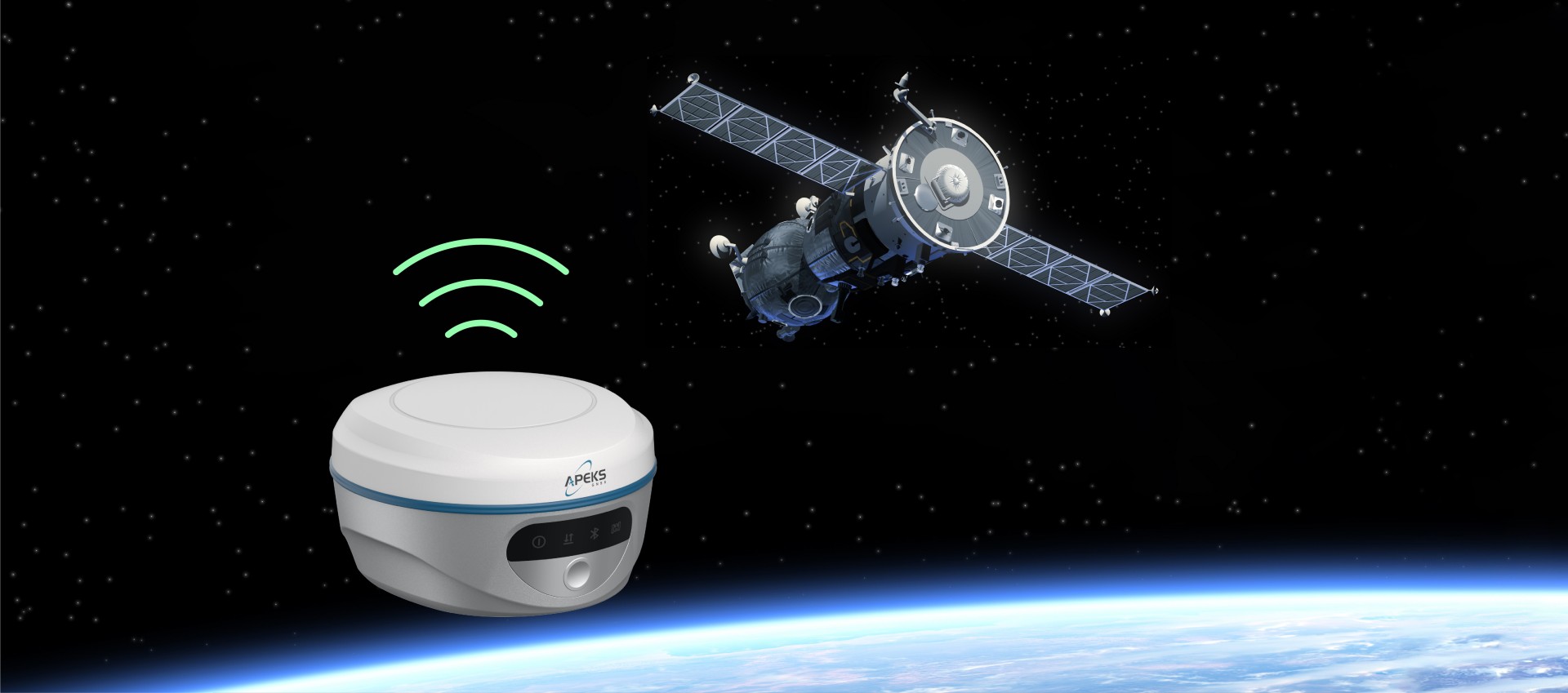

1408 channels GNSS
With advanced 1408-channel "GNSS technology, supports GPS, GLONASS, Galleo, BelDou, QZSS and SBAS constellations tracking to achieve" reliable centimeter-level positioning accuracy, in challenging envronments.

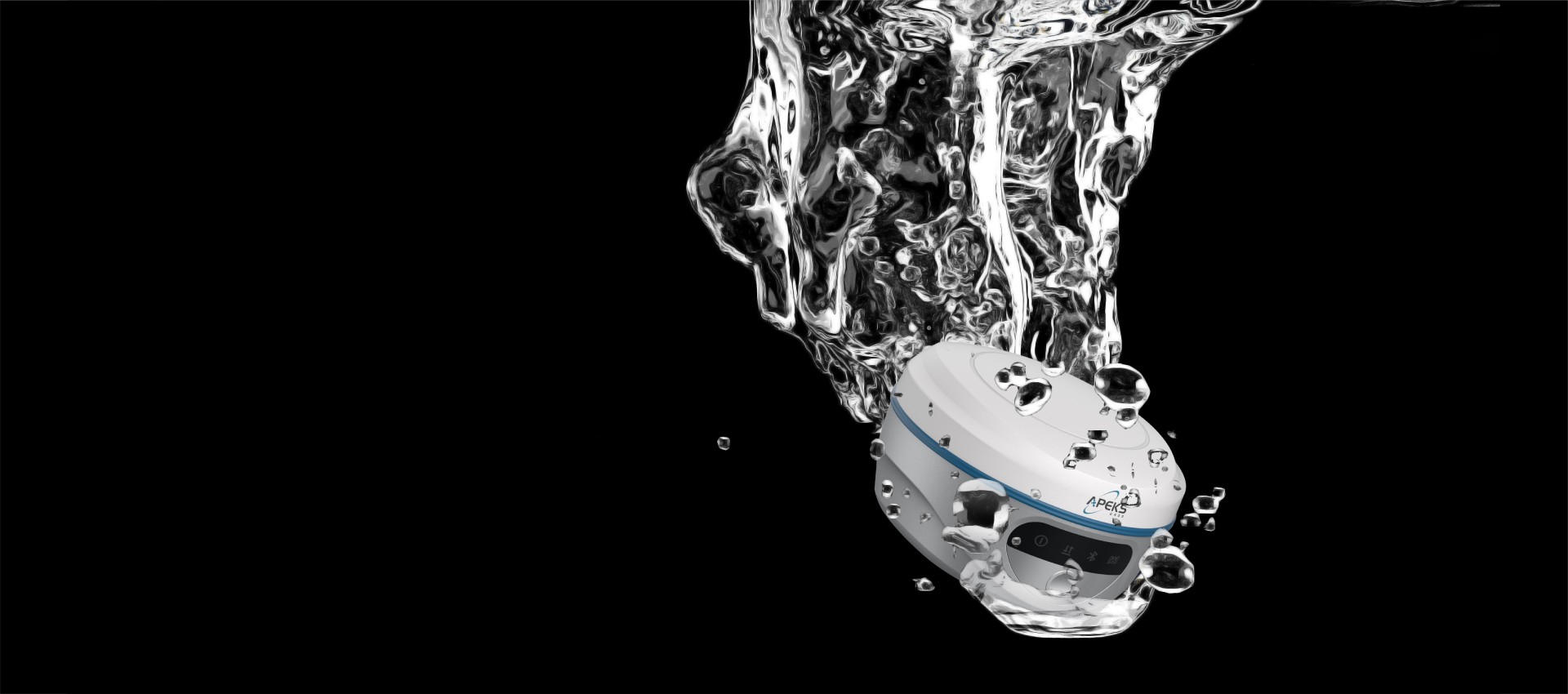

Rugged and Durable Design
IP67 and IK08 for dust, water, shock, and vibration resistance, alloy body ensures durability and reliable performance in tough field conditions. Making your surveying in harsh environments with confidence.
Up to 120° IMU
With calibration-free IMU sensor, AP10 is free from magnetic interference and accurate direction, no need for calibration, no need for initialization and improves by 30% in its measurement accuracy. AP10 uses the 4.0 IMU can get fixed up to 120° to meet more complex environments.
2W UHF Rx/Tx radio
The built-in integrated radio transceiver can cover a range of 8-15km, It performs as well as the extemal large radio station. AP10 operates as both a base and rover and when connect to a GNSS RTK network, It is an efficient NTRIP rover.
Versatile Connectivity
The GNSS device supports WiFi, Bluetooth, NFC, USB and a SIM card slot, providing versatile connectivity options for seamless data transfer, real-time updates, and remote communication. This multi-interface design enhances flexibility

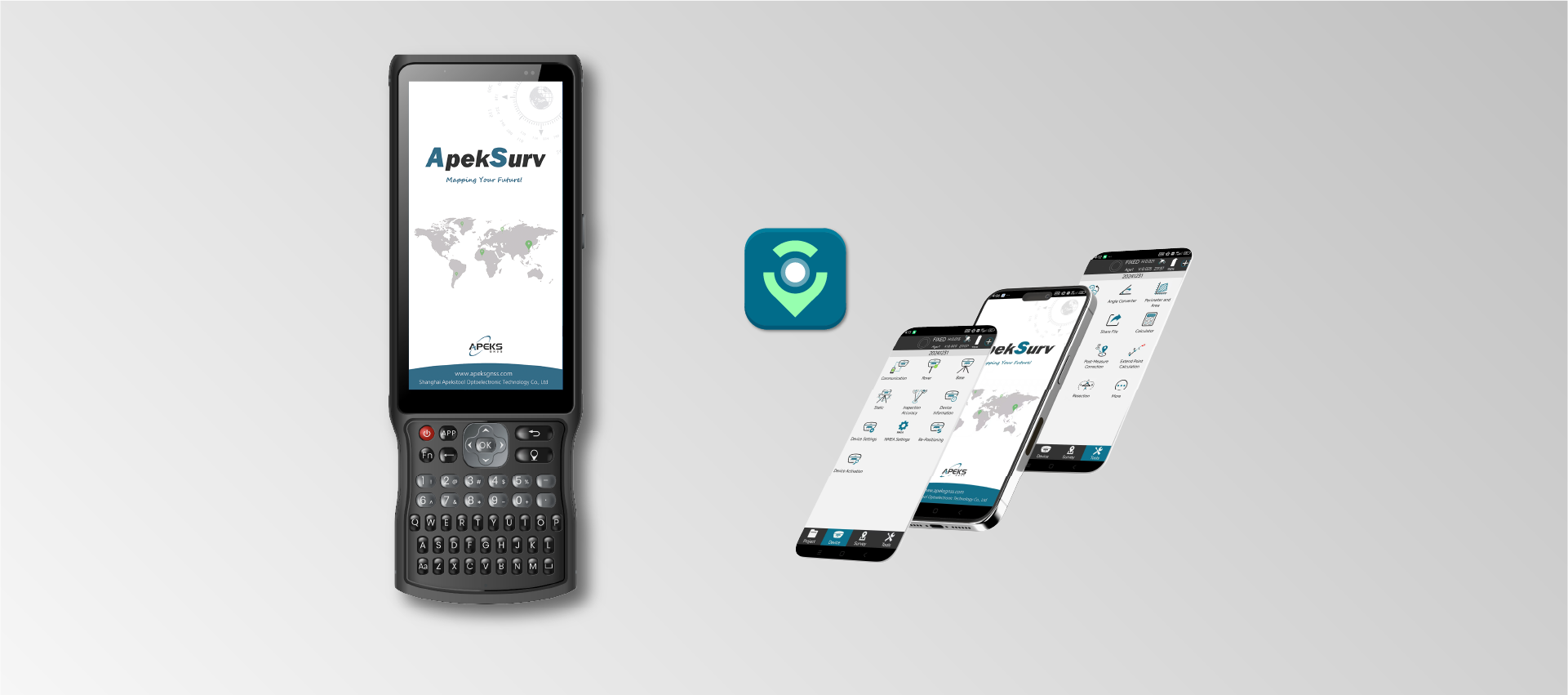

Land Surveying and Mapping Field Software
| SATELLITES TRACKING | |
| Channels | 1408 |
| GPS | L1C/A, L2C, L2P(Y),L5 |
| GLONASS | L1,L2,L3* |
| Galileo | E1, E5a, E5b, E6* |
| BDS | B11, B21, B3l, B1C, B2a, B2b* |
| QZSS | L1C/A, L1C, L2C, L5 |
| NavIC/IRNSS | L5 |
| SABAS | L1,L5* |
| PPP | B2B-PPP/E6-HAS |
| ACCURACY | |
| Real time kinematics (RTK) | H: 8 mm + 1 ppm RMS V: 15 mm+ 1 ppm RMS Initialization time:<5s(typical) Initialization reliability:>99.9% |
| Post-processing kinematics (PPK) | H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS |
| PPP | H: 10cm RMS|V: 20cm RMS |
| DGPS | H: 0.4 m RMS|V: 0.8 m RMS |
| Single Point | H: 1.5 m RMS|V: 2.5 m RMS |
| Position Frequency | 1HZ 2HZ 5HZ 10HZ 20HZ 50HZ |
| Time to first fix | Cold start<45s Hot start<10s Signal re-acquisition< 1 s |
| IMU tilt angle | 0-120° |
| IMU tilt survey accuracy | ≤2cm within 60° tilt angle |
| COMMUNICATION | |
| UHF radio | 2W Tx/Rx, 410-470 MHz Working range is 8-15km in ideal environments |
| Protocal | TT450,TRIMMARK3,SOUTH,SATEL Link rate :9600bps to 19200bps |
| Wifi | 802.11b/g/n/ac Hotspot/Data Link |
| Bluetooth | Bluetooth 5.2 classical/BLE proprietary dual-mode |
| NFC | NFC touch pairing |
| WebUI | Accessible via Wi-Fi |
| 4G Cellular | Integrated full frequency multi band 4G modem supports LTE-TDD/LTEFDD/WCDMA/CDMA2000/UMTS/HSPA+/GSM/GPRS/EDGE |
| I/O port | 1xUSB Type-C port (Data download / Charging) |
| 1xAntenna port(UHF antenna interface) | |
| 1xSim card slot (Supports Nano-sim) | |
| Data formats | RTCM 2.X, RTCM 3.X, RINEX, NMEA 0183 output, NTRIP |
| Data storage | 32GB high speed memory |
| ELECTRICAL | |
| Battery | Internal Li-on Battery 7.4V 7000mAh |
| Charging specs | USB Type-C fast charging |
| Operation time | Rover mode:18 hours Base mode :7 hours Static mode :20 hours |
| HARDWARE | |
| Size | 129mm(W) 77mm (H) 5inch(W) 3inch(H) |
| Weight | 800g(1.76Ib) |
| Front panel | 1x Data Link, 1x Satellite, 1x Bluetooth, 1xPower |
| ENVIRONMENTS | |
| Working temperature | -45°C to +75°C |
| Storage temperature | -55°C to +85°C |
| Humidity | 100% non-condensation |
| Waterproof & Dustproof | IP67 |
| Drop | Survive a 2-meter pole-drop |
| Vibration | IK08 |
