1408 channels GNSS
With advanced 1408-channel "GNSS technology,
supports GPS, GLONASS, Galleo, BelDou, QZSS and SBAS constellationstracking to achieve" reliable centimeter-level positioning accuracy, in challenging envronments.
Rugged and Durable Design
IP67 and IK08 for dust, water, shock, and vibration resistance, alloy body
ensures durability and reliable performance in tough field conditions.
Making your surveying in harsh environments with confidence.

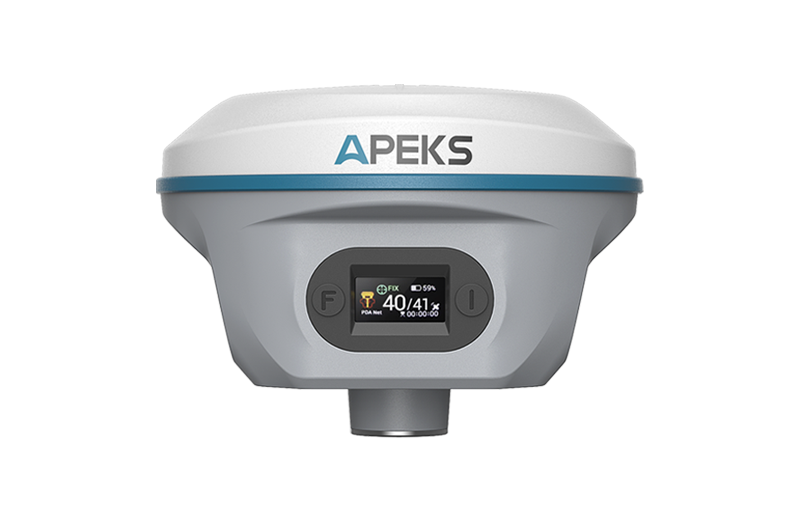

OLED Color Display
The upgraded 0.96" OLED color screen that provides clear, easy-to-read information at a glance. DualLED physical buttons allow quick switching between modes and data link control, no need controller. This intuitive interface enhances user experience and ensures efficient operation even in challenging field conditions.
2W UHF Rx/Tx radio
The built-in integrated radio transceiver cancover a range of 8-15km, It performs as well as the extemal large radio station.AP10 operates as both a base and rover and when connect to a GNSS RTK network, It is an efficient NTRIP rover.
Up to 120° IMU
Equipped with a calibration-free 4.0 IMU sensor, AP20 delivers accurate, interference-free orientation without the need for calibration or initialization. Its tilt Capability of up to120° enhances measurement efficiency by up to 50%， making it ideal for complex surveying environments.
Versatile Connectivity
The GNSS device supports WiFi, Bluetooth, NFC, USB and a SIM card slot, providing versatile connectivity options for seamless data transfer, real-time updates, and remote communication. This multi-interface design enhances flexibility
Land Surveying and Mapping Field Software
| SATELLITES TRACKING | |
| Channels | 1408 |
| GPS | L1C/A, L2C, L2P(Y),L5 |
| GLONASS | L1,L2,L3* |
| Galileo | E1, E5a, E5b, E6 |
| BDS | B1l, B2l, B3l, B1C, B2a, B2b* |
| QZSS | L1C/A, L1C, L2C, L5 |
| NavIC/IRNSS | L5 |
| SBAS | L1,L5* |
| L-Band | B2B-PPP & E6-HAS |
| ACCURACY | |
| Real time kinematics (RTK) |
H: 8 mm + 1 ppm RMS V: 15 mm+ 1 ppm RMS Initialization time:<5s(typical) Initialization reliability:>99.9% |
| Post-processing kinematics (PPK) |
H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS |
| PPP | H: 10cm RMS|V: 20cm RMS |
| DGPS | H: 0.4 m RMS|V: 0.8 m RMS |
| Single Point | H: 1.5 m RMS|V: 2.5 m RMS |
| Position Frequency | 1HZ 2HZ 5HZ 10HZ 20HZ 50HZ |
| Time to first fix | Cold start<45s Hot start<10s Signal re-acquisition< 1 s |
| IMU tilt angle | 0-120° |
| IMU tilt survey accuracy | ≤2cm within 60° tilt angle |
| COMMUNICATION | |
| UHF radio | 2W Tx/Rx, 410-470 MHz Working range is 8-15km in ideal environments |
| Protocal | TT450,TRIMMARK3,SOUTH,LORA Link rate :9600bps to 19200bps |
| Wifi | 802.11b/g/n/ac Hotspot/Data Link |
| Bluetooth | Bluetooth 5.2 classical/BLE proprietary dual-mode |
| NFC | NFC touch pairing |
| WebUI | Accessible via Wi-Fi |
| 4G Cellular | Integrated full frequency multi band 4G modem supports LTE-TDD/LTEFDD/WCDMA/CDMA2000/UMTS/HSPA+/GSM/GPRS/EDGE |
| I/O port | 1xUSB Type-C port (Data download / Charging) |
| 1xAntenna port(UHF antenna interface) | |
| 1xSim card slot (Supports Nano-sim) | |
| 1x5-pin Lemo port (RS-232) | |
| Data formats | RTCM 2.X, RTCM 3.X, RINEX, NMEA 0183 output,VRS,NTRIP |
| Data storage | 32GB high speed memory |
| ELECTRICAL | |
| Battery | Internal Li-on Battery 7.4V 7000mAh |
| Charging specs | USB Type-C fast charging |
| Operation time | Rover mode:18 hours Base mode :7 hours Static mode :20 hours |
| HARDWARE | |
| Size | 125mm(W) 88mm (H) 4.92inch(W) 3.46inch(H) |
| Weight | 800g(1.76Ib) |
| Front panel | 0.96'' OLED color screen display 2 LED light, 2physical buttons (switchable mode, data link) |
| ENVIRONMENTS | |
| Working temperature | -45°C to +75°C |
| Storage temperature | -55°C to +85°C |
| Humidity | 100% non-condensation |
| Waterproof & Dustproof | IP67 |
| Drop | Survive a 2-meter pole-drop |
| Vibration | IK08 |
