AP50 Vision IMU-RTK GNSS receiver integrates the advanced GNSS, lMU, and dual-camera technologies.
From Vision to Location
RTK Imaging Technology at Your Fingertips
1408 channels supports full-constelation signal tracking with advanced anti-interference algorithms.
VISUAL SURVEYING
Apeks advanced photogrammetry technology, AP50 Vision can easily acquiring 3D coordinates for hundreds of points within minutes, by using the front camera to shoot a video or some photos. making it easy to survey hard-to-reach, sianal-obstructed, or hazardous ponts in the field-such as areas under overpasses, eaves, or near power poles.
VISUAL STAKEOUT

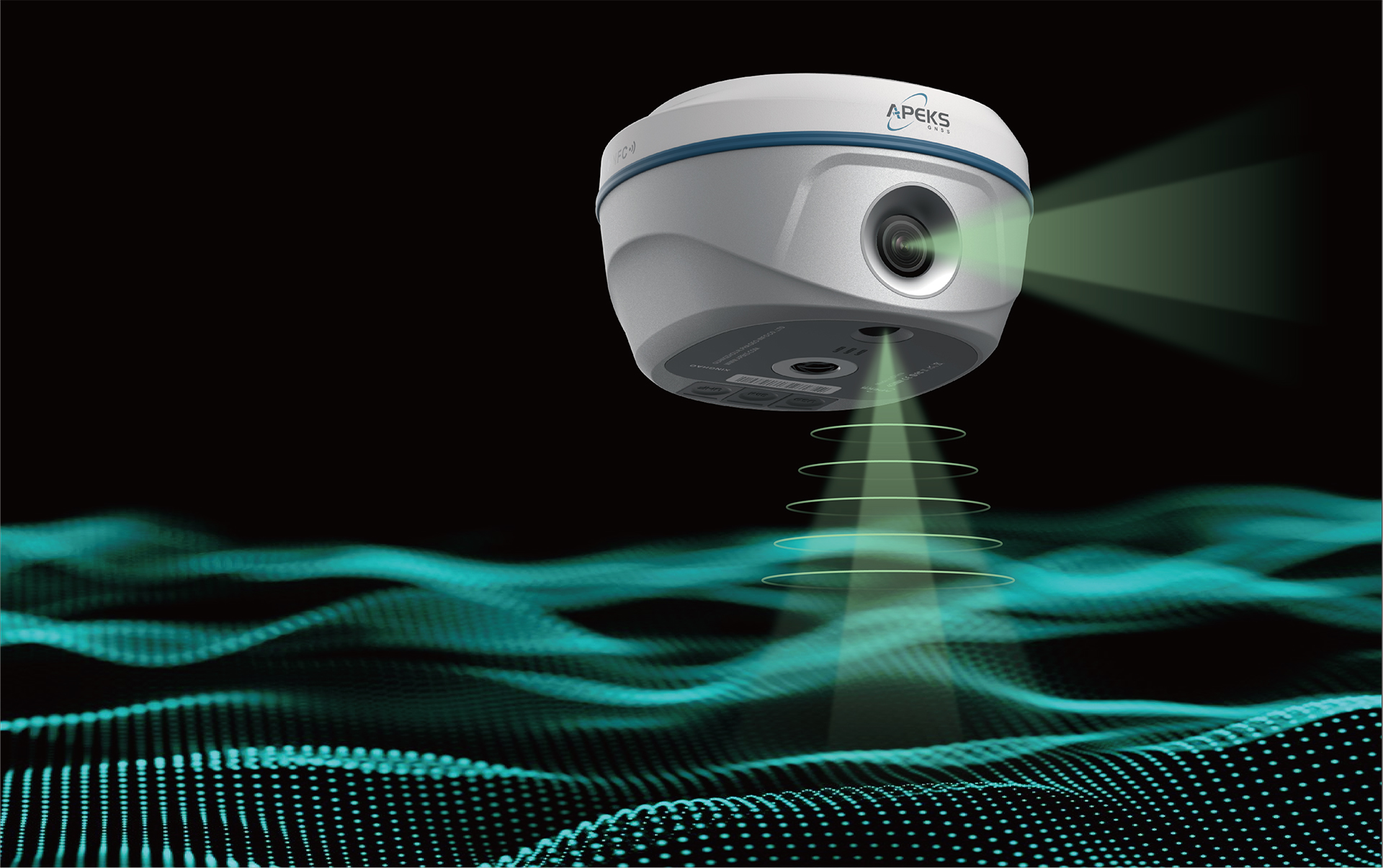

The AP50 Vision dual cameras provide an immersive 3D visual stakeout experience, ApekSurv software will call upon both the GNSS front and bottom camera to capture the real time directional arrow and real-time distance to the stakeout point and lines marked directly on the ground.
3D MODELING
Surveyors can use AP50 Vision get 3D coordinates easily, The data output can be used with standard 3D modeling software (ContextCapture or Agisoft) provides flexibility and convenience. By merging Drone (UAV) data and GNSS data, you can get 3D joint modeling of buildings and facades.
Up to 120°IMU
Satellite navigation + IMU + visual fusion algorithm make AP50 Vision is free from magnetic interference and accurate direction, no need for calibration, no need for initialization and improves by 30% in its measurement accuracy. Using the 4.0 lMU can get fixed up to 120° to meet more complex environments.
2W UHF Rx/Tx radio
The built-in integrated radio transceiver can cover a range of 8-15km, It performs as well as the external large radio station. When AP50 Vision connects to a GNSS RTK network, It is an efficient NTRIP rover.
Versatile Connectivity
The GNSS device supports WiFi, Bluetooth, NFC, USB and a SIM card slot, providing versatile connectivity options for seamless data transfer, real-time updates, and remote communication. This multi-interface design enhances flexibility.
Land Surveying and Mapping Field Software
| SATELLITES TRACKING | |
| Channels | 1408 |
| GPS | L1C/A, L2C, L2P(Y),L5 |
| GLONASS | L1,L2,L3* |
| Galileo | E1, E5a, E5b, E6* |
| BDS | B11, B21, B3l, B1C, B2a, B2b* |
| QZSS | L1C/A, L1C, L2C, L5 |
| NavIC/IRNSS | L5 |
| SABAS | L1,L5* |
| PPP | B2B-PPP/E6-HAS |
| ACCURACY | |
| Real time kinematics (RTK) | H: 8 mm + 1 ppm RMS V: 15 mm+ 1 ppm RMS Initialization time:<5s(typical) Initialization reliability:>99.9% |
| Post-processing kinematics (PPK) | H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS |
| PPP | H: 10cm RMS|V: 20cm RMS |
| DGPS | H: 0.4 m RMS|V: 0.8 m RMS |
| Single Point | H: 1.5 m RMS|V: 2.5 m RMS |
| Visual stakeout | H: 8 mm + 1 ppm RMS V: 15 mm+ 1 ppm RMS |
| Visual survey | Typical 2~4 cm, range 2~15 m (normal lighting conditions) |
| Position Frequency | 1HZ 2HZ 5HZ 10HZ 20HZ 50HZ |
| Time to first fix | Cold start<45s Hot start<10s Signal re-acquisition< 1 s |
| IMU tilt angle | 0-120° |
| IMU tilt survey accuracy | ≤2cm within 60° tilt angle |
| CAMERA | |
| Number of cameras | 2 |
| Pixel | Global shutter 2MP & 5MP |
| Frame rate | 30fps |
| Field of view | 84° |
| Features | 2MP front camera achieve visual measurments 5MP bottom camera achieve AR stakeout |
| COMMUNICATION | |
| UHF radio | 2W Tx/Rx, 410-470 MHz Working range is 8-15km in ideal environments |
| Protocal | TT450,TRIMMARK3,SOUTH,SATEL Link rate :9600bps to 19200bps |
| Wifi | 802.11b/g/n/ac Hotspot/Data Link |
| Bluetooth | Bluetooth 5.2 classical/BLE proprietary dual-mode |
| NFC | NFC touch pairing |
| WebUI | Accessible via Wi-Fi |
| 4G Cellular | Integrated full frequency multi band 4G modem supports LTE-TDD/LTEFDD/WCDMA/CDMA2000/UMTS/HSPA+/GSM/GPRS/EDGE |
| I/O port | 1xUSB Type-C port (Data download / Charging) |
| 1xAntenna port(UHF antenna interface) | |
| 1xSim card slot (Supports Nano-sim) | |
| Data formats | RTCM 2.X, RTCM 3.X, RINEX, NMEA 0183 output, NTRIP |
| Data storage | 32GB high speed memory |
| ELECTRICAL | |
| Battery | Internal Li-on Battery 7.4V 7000mAh |
| Charging specs | USB Type-C fast charging |
| Operation time | Rover mode:18 hours Base mode :7 hours Static mode :20 hours |
| HARDWARE | |
| Size | 129mm(W) 77mm (H) 5inch(W) 3inch(H) |
| Weight | 800g(1.76Ib) |
| Front panel | 1x Data Link, 1x Satellite, 1x Bluetooth, 1xPower |
| ENVIRONMENTS | |
| Working temperature | -45°C to +75°C |
| Storage temperature | -55°C to +85°C |
| Humidity | 100% non-condensation |
| Waterproof & Dustproof | IP67 |
| Drop | Survive a 2-meter pole-drop |
| Vibration | IK08 |
