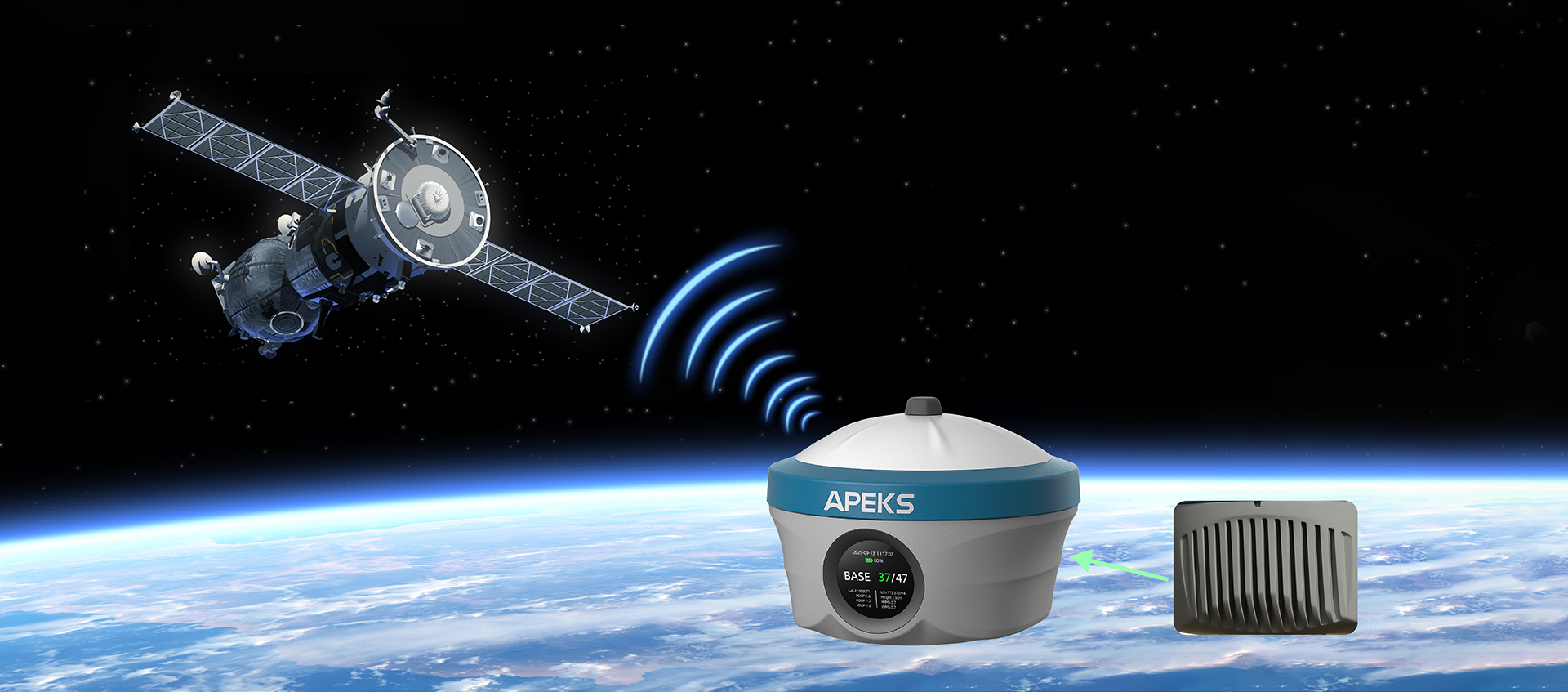

Full satellite tracking
The Max 5 features 1408 channels with IMU tilt and heatsink design, supports GPS, GL ONASS,Galileo, BeiDou; QZSS, SBAS, and PPP for reli-able RTK corrections. It ensures precise mea-surements and stable performance even in challenging environments like urban canyons or dense foliage.

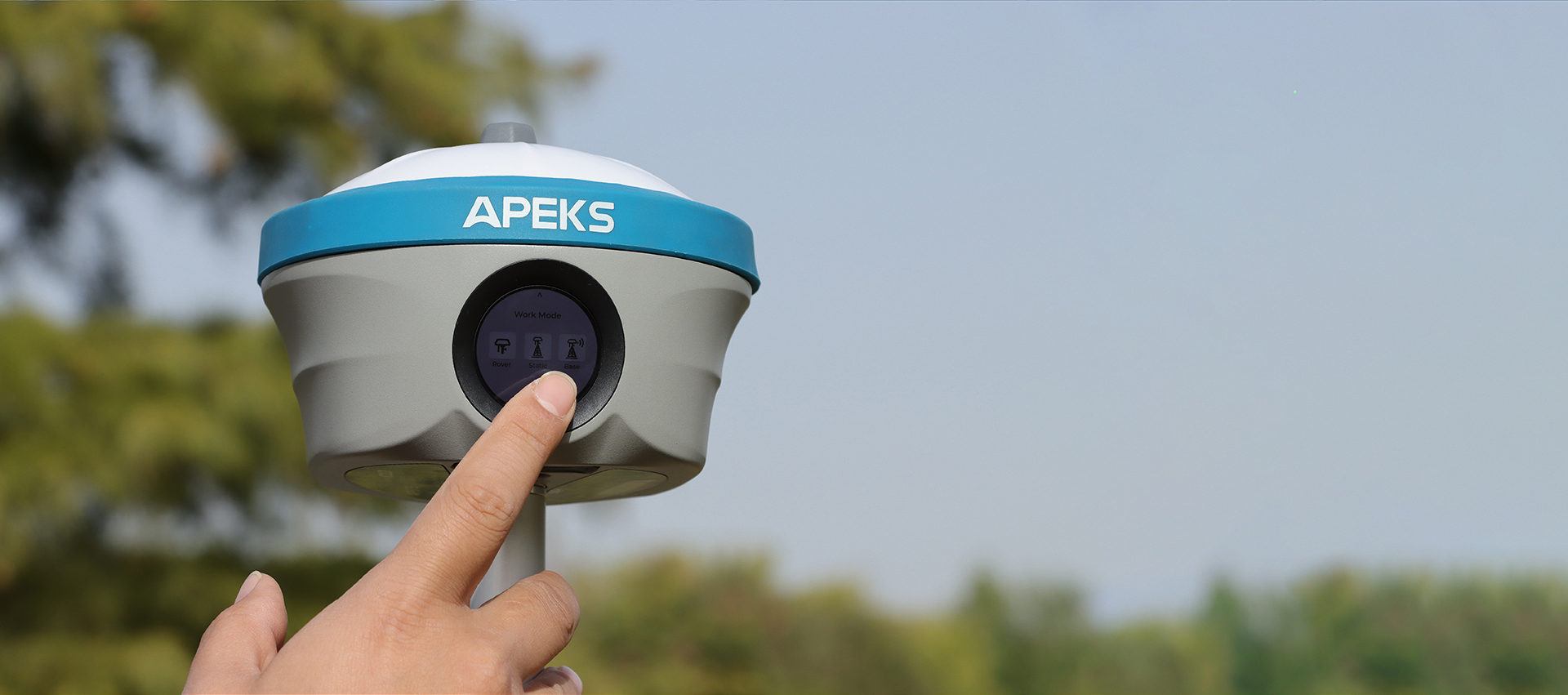

1.39’’ HD touchscreen
The Max 5's 1.39-inch HD touchscreen provides direct access to all functions, enabling real-time status monitoring and on-site parameter adjustments. This intuitive interface reduces setup time and minimizes errors for more efficient and accurate fieldwork.

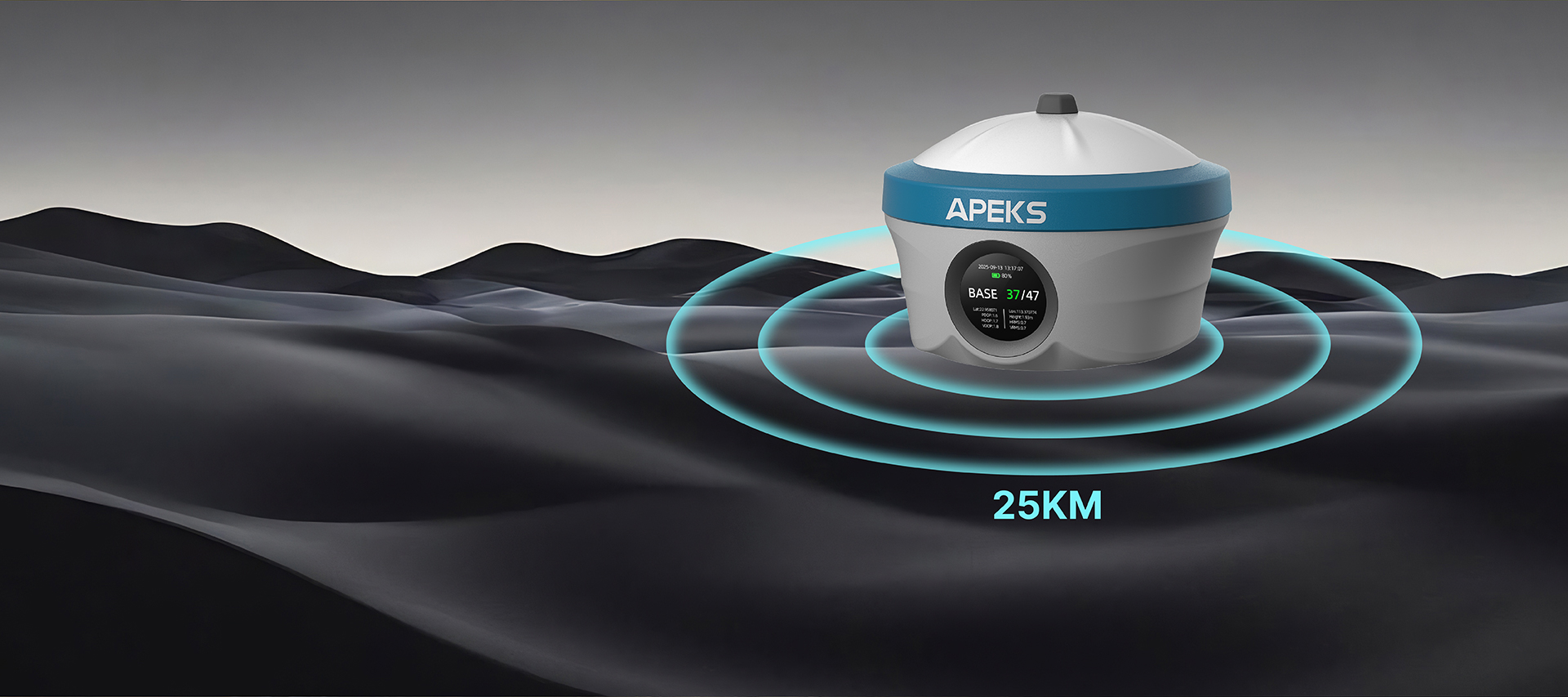

Long range UHF radio
Max5 integrated 5W + LoRa radio module delivers reliable, long-range RTK coverage up to 25 km. It ensures stable base-rover communication in challenging environments, replacing external radios for simpler setup and consistent centimeter-level accuracy.
long battery life
Max 5 built-in 13200mAh battery supports up to 8 hours of base station operation, enabling extended field missions. With optional external battery bar for ultra-long deployments, it ensures uninterrupted power in remote areas, reducing downtime.
Integrated rugged design
The Max 5 integrates all essential GNSS functionalities into a compact,no need external batteries, radios, or connection cables, This simplifies deployment, reduces errors, and enhances portability for faster, more focused fieldwork.
