LASER TECHNOLOGY
In hard-to-reach, signal-obstructed, and dangerous fields, the milimeter-level laser makes surveying and stakeout easier and more stable. It can achieve centimeter-level accuracy at any point within a range of 10 meters. The green laser is visible in the day light and a viable substitute for a Total Station to complete any survey project.

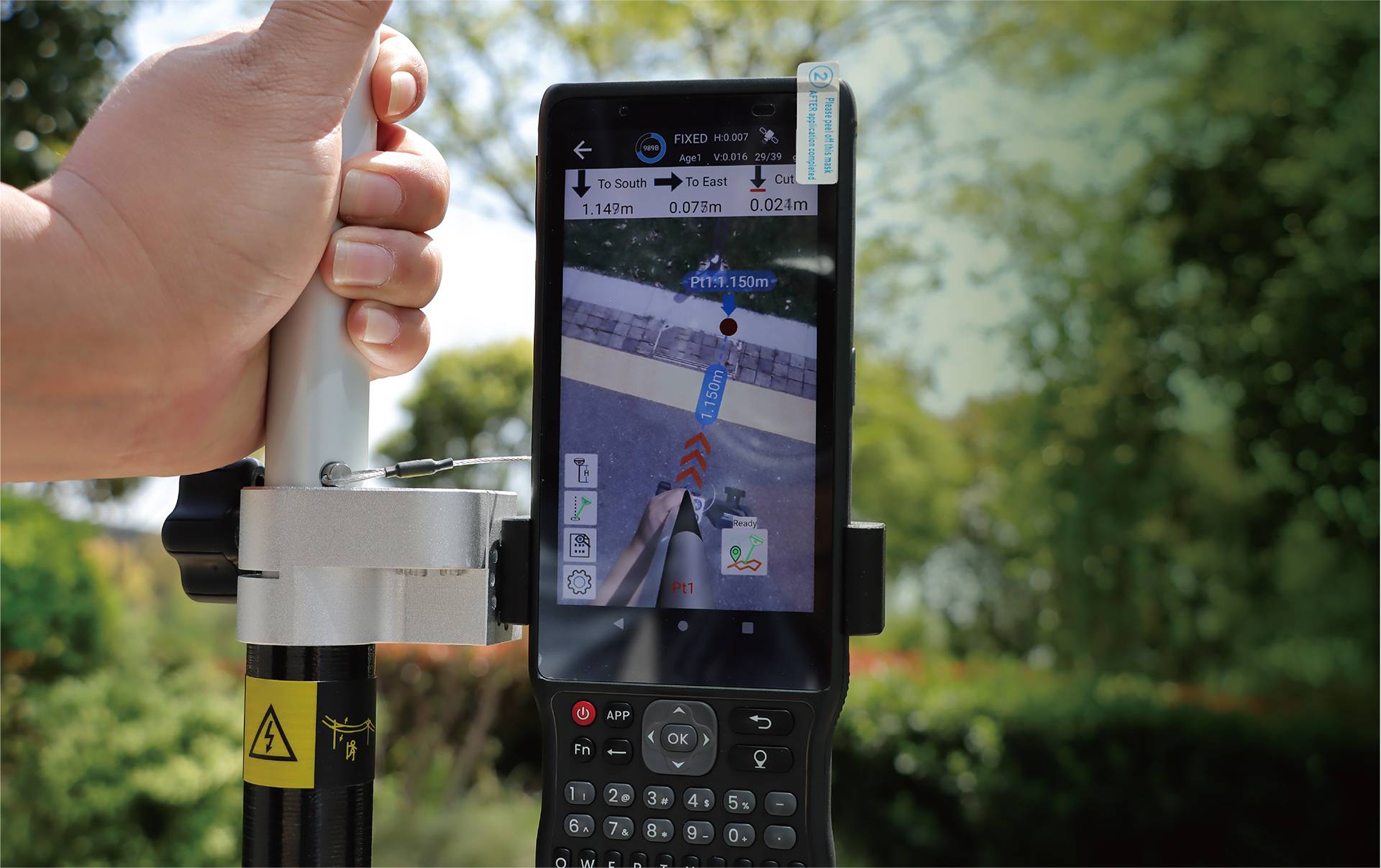

VISUAL STAKEOUT
Visual stakeout, one shot is in the place, no need to move the pole back and forth anymore. Immersive real-life three-dimensional stakeout. The stakeout point is marked directly on the ground. Follow the arrows and you can put it in place with one rod.

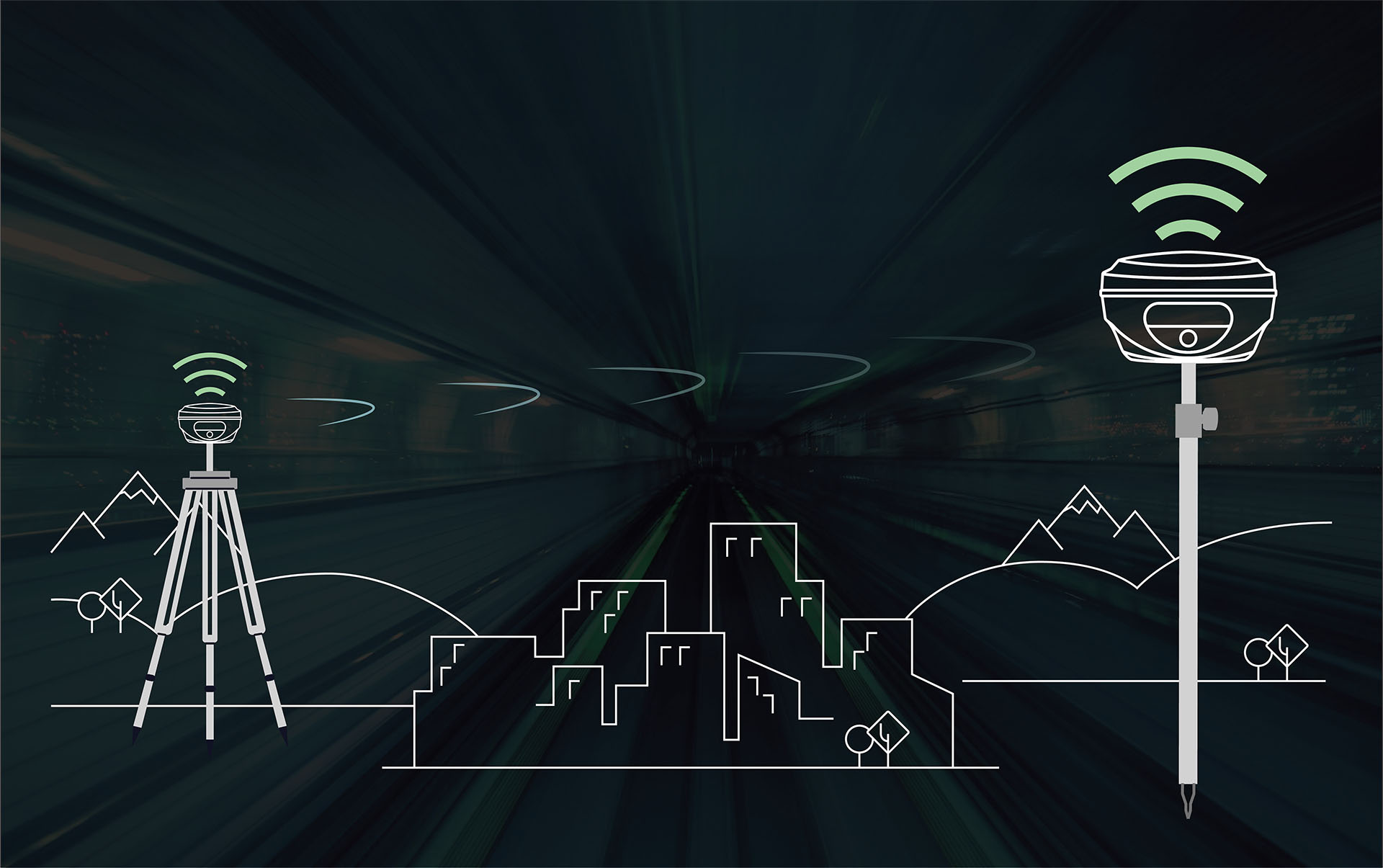

2W UHF Rx/Tx radio
The built-in integrated radio transceiver can cover a range of 8-15km, It performs as well as the external large radio station. AP30 Laser operates as both a base and rover and when connect to a GNSS RTK network, It is an efficient NTRIP rover.

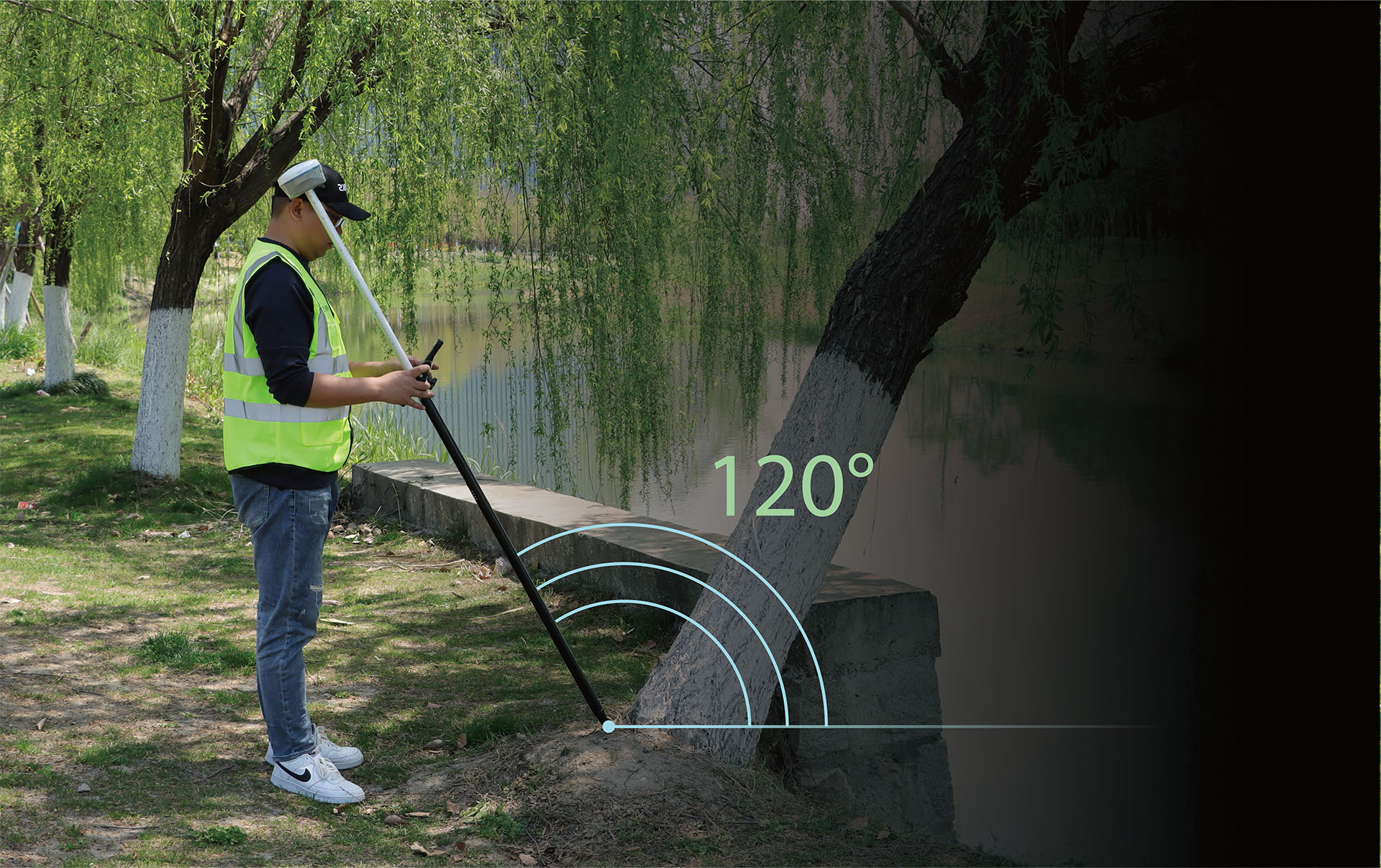

Up to120° MU
Satellite navigation + IMU + visual fusion algorithm make AP30 Laser is free from magnetic interference and accurate direction, no need for calibration, no need for initialization and improves by 30% in its measurement accuracy. AP30 Laser uses the 4.0 IMU can get fixed up to 120° to meet more complex environments.
Versatile Connectivity
The GNSS device supports WiFi, Bluetooth, NFC, USB and a SIM card slot, providing versatile connectivity options for seamless data transfer, real-time updates, and remote com- munication.This multi-interface design enhances flexibility

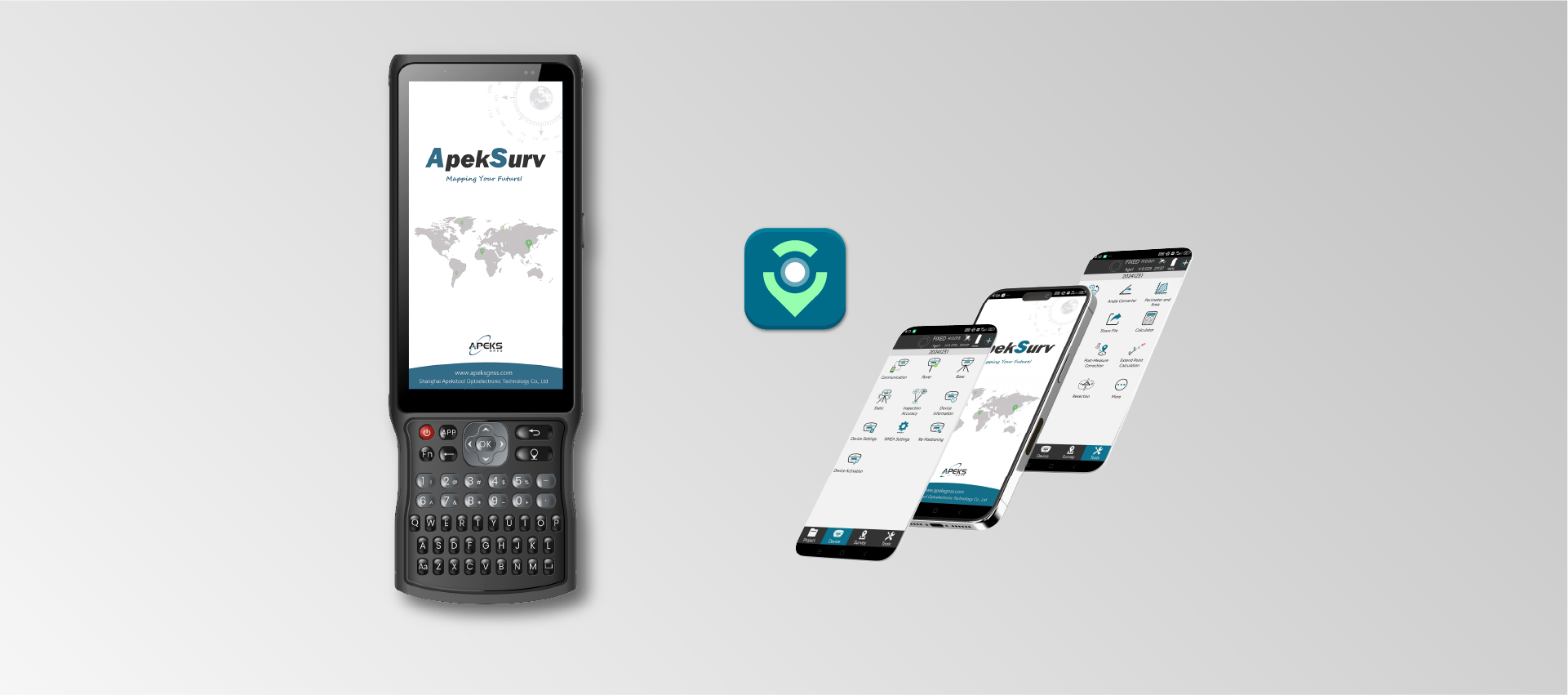

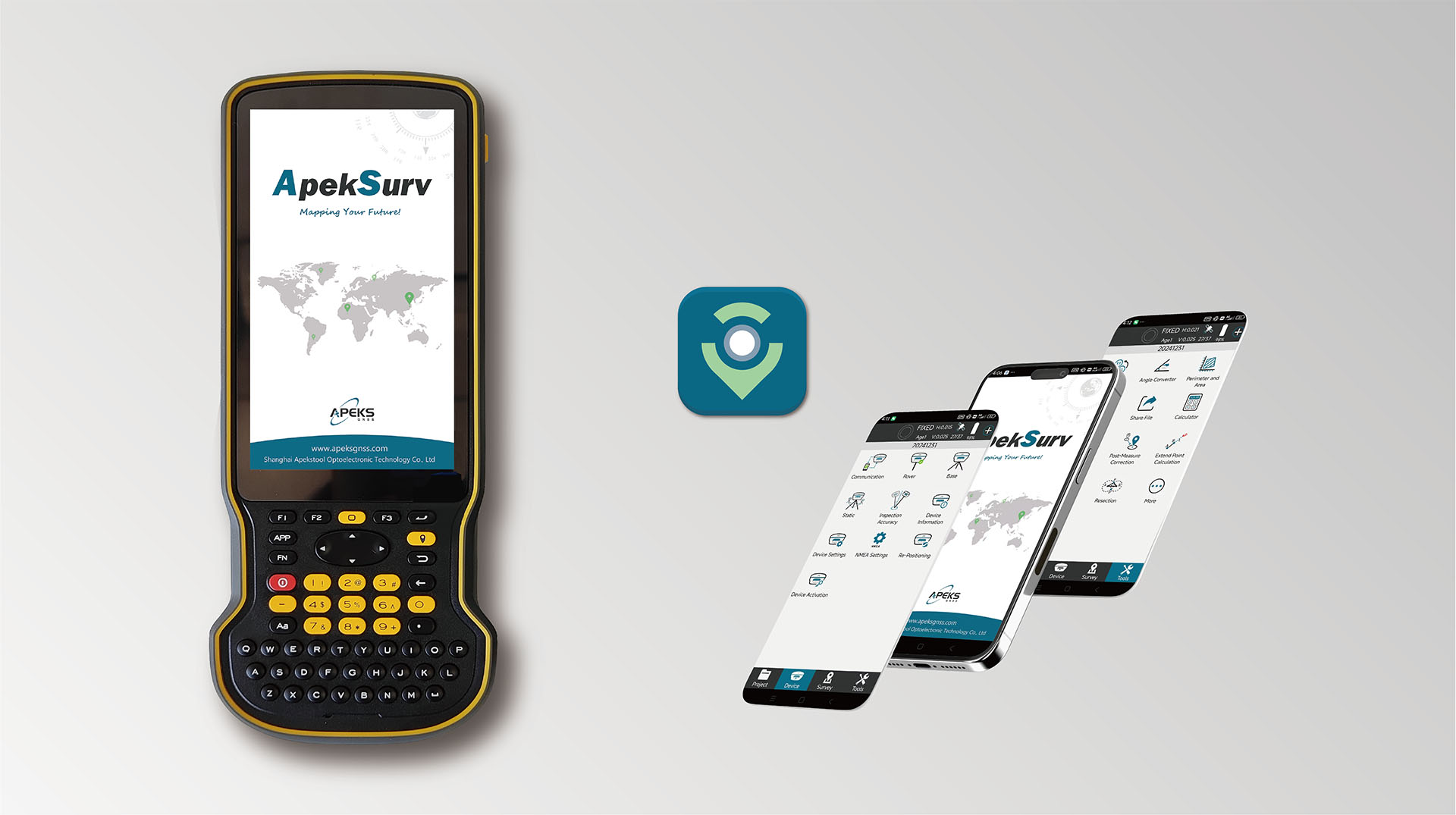

Land Surveying and Mapping Field Software
| SATELLITES TRACKING | |
| Channels | 1408 |
| GPS | L1C/A, L2C, L2P(Y),L5 |
| GLONASS | L1,L2,L3* |
| Galileo | E1, E5a, E5b, E6* |
| BDS | B11, B21, B3l, B1C, B2a, B2b* |
| QZSS | L1C/A, L1C, L2C, L5 |
| NavIC/IRNSS | L5 |
| SABAS | L1,L5* |
| PPP | B2B-PPP/E6-HAS |
| ACCURACY | |
| Real time kinematics (RTK) | H: 8 mm + 1 ppm RMS V: 15 mm+ 1 ppm RMS Initialization time:<5s(typical) Initialization reliability:>99.9% |
| Post-processing kinematics (PPK) | H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS |
| PPP | H: 10cm RMS|V: 20cm RMS |
| DGPS | H: 0.4 m RMS|V: 0.8 m RMS |
| Single Point | H: 1.5 m RMS|V: 2.5 m RMS |
| AR stakeout | H: 8 mm + 1 ppm RMS V: 15 mm+ 1 ppm RMS |
| Position Frequency | 1HZ 2HZ 5HZ 10HZ 20HZ 50HZ |
| Time to first fix | Cold start<45s Hot start<10s Signal re-acquisition< 1 s |
| IMU tilt angle | 0-120° |
| IMU tilt survey accuracy | ≤2cm within 60° tilt angle |
| LASER | |
| Type | Class3.0 Green |
| Range | 10m |
| Laser survey | ±8mm + 5mm/m ( Tilt angle within 30° ) |
| CAMERA | |
| Number of cameras | 2 |
| Pixel | Global shutter with 5MP |
| Frame rate | 30fps |
| Field of view | 84° |
| Features | 5MP bottom camera achieve AR stakeout 5MP front camera auxiliary laser measurement and aiming |
| COMMUNICATION | |
| UHF radio | 2W Tx/Rx, 410-470 MHz Working range is 8-15km in ideal environments |
| Protocal | TT450,TRIMMARK3,SOUTH,SATEL Link rate :9600bps to 19200bps |
| Wifi | 802.11b/g/n/ac Hotspot/Data Link |
| Bluetooth | Bluetooth 5.2 classical/BLE proprietary dual-mode |
| NFC | NFC touch pairing |
| WebUI | Accessible via Wi-Fi |
| 4G Cellular | Integrated full frequency multi band 4G modem supports LTE-TDD/LTEFDD/WCDMA/CDMA2000/UMTS/HSPA+/GSM/GPRS/EDGE |
| I/O port | 1xUSB Type-C port (Data download / Charging) |
| 1xAntenna port(UHF antenna interface) | |
| 1xSim card slot (Supports Nano-sim) | |
| Data formats | RTCM 2.X, RTCM 3.X, RINEX, NMEA 0183 output, NTRIP |
| Data storage | 32GB high speed memory |
| ELECTRICAL | |
| Battery | Internal Li-on Battery 7.4V 7000mAh |
| Charging specs | USB Type-C fast charging |
| Operation time | Rover mode:18 hours Base mode:7 hours Static mode:20 hours |
| HARDWARE | |
| Size | 129mm(W) 77mm (H) 5inch(W) 3inch(H) |
| Weight | 800g(1.76Ib) |
| Front panel | 1x Data Link, 1x Satellite, 1x Bluetooth, 1xPower |
| ENVIRONMENTS | |
| Working temperature | -45°C to +75°C |
| Storage temperature | -55°C to +85°C |
| Humidity | 100% non-condensation |
| Waterproof & Dustproof | IP67 |
| Drop | Survive a 2-meter pole-drop |
| Vibration | IK08 |
