120M Laser technology

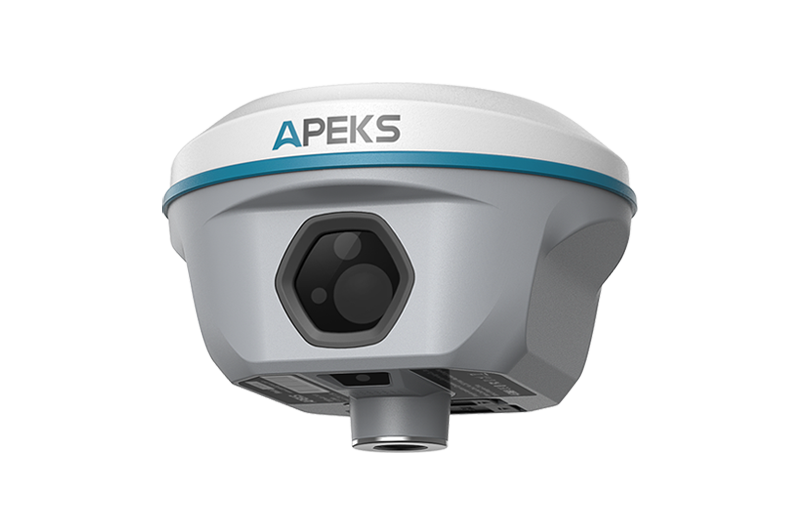

AP40 Laser+ is combining RTK and 120m laser ranging, this gnss delivers millimeter-level precision for non-contact measurement in hazardous or hard-to-reach areas. Its sunlight-visible green laser enables one-person point-and- shoot operation. Offering all-weather performance and ease of use, it is a efficient and safe alternative to traditional total stations.
AR Stakeout
The AP40 laser+ offers an immersive AR stakeout with dual 5MP cameras on the front and rear. Both support real-time AR visualization and seamless switching, enabling precise and direct stakeout without moving the pole back and forth. Stakeout points are marked on the ground with intuitive guiding arrows for fast and accurate positioning. This makes surveying quicker, more precise, and easier to use- even in challenging environments.
OLED Color Display
The upgraded 0.96" OLED color screen that
provides clear, easy-to-read information at a
glance. DualLED physical buttons allow quick
switching between modes and data link control,
no need controller. This intuitive interface
enhances user experience and ensures efficient
operation even in challenging field conditions.
2W UHF Rx/Tx radio
The built-in integrated radio transceiver cancover a range
of 8-15km, It performs as well as the extemal large radio station.
AP10 operates as both a base and rover and when connect to a
GNSS RTK network, It is an efficient NTRIP rover.
Up to 120° IMU
Equipped with a calibration-free 4.0 IMU sensor,
AP20 delivers accurate, interference-free
orientation without the need for calibration or
initialization. Its tilt Capability of up to120°
enhances measurement efficiency by up to 50%，
making it ideal for complex surveying
environments.
Versatile Connectivity
The GNSS device supports WiFi, Bluetooth, NFC, USB and a SIM card slot, providing versatile connectivity options for seamless data transfer, real-time updates, and remote communication. This multi-interface design enhances flexibility
Land Surveying and Mapping Field Software
| SATELLITES TRACKING | |
| Channels | 1408 |
| GPS | L1C/A, L2C, L2P(Y),L5 |
| GLONASS | L1,L2,L3* |
| Galileo | E1, E5a, E5b, E6 |
| BDS | B1l, B2l, B3l, B1C, B2a, B2b* |
| QZSS | L1C/A, L1C, L2C, L5 |
| NavIC/IRNSS | L5 |
| SBAS | L1,L5* |
| L-Band | B2B-PPP & E6-HAS |
| ACCURACY | |
| Real time kinematics (RTK) |
H: 8 mm ± 1 ppm RMS V: 15 mm ± 1 ppm RMS Initialization time:<5s(typical) Initialization reliability:>99.9% |
| Post-processing kinematics (PPK) |
H: 2.5 mm ± 0.5 ppm RMS V: 5 mm ± 0.5 ppm RMS |
| PPP | H: 10cm RMS|V: 20cm RMS |
| DGPS | H: 0.4 m RMS|V: 0.8 m RMS |
| Single Point | H: 1.5 m RMS|V: 2.5 m RMS |
| AR stakeout | H: 8 mm ± 1 ppm RMS V: 15 mm ± 1 ppm RMS |
| Position Frequency | 1Hz 2Hz 5Hz 10Hz 20Hz 50Hz |
| Time to first fix | Cold start<45s Hot start<10s Signal re-acquisition< 1 s |
| IMU tilt angle | 0-120° |
| IMU tilt survey accuracy | ≤2cm within 60° tilt angle |
| LASER | |
| Type | Class3.0 Green |
| Range | 120m |
| Laser survey | ±8mm + 5mm/m ( Tilt angle within 30° ) |
| CAMERA | |
| Number of cameras | 2 |
| Pixel | Global shutter with 5MP |
| Frame rate | 30fps |
| Field of view | 84° |
| Features | 5MP bottom camera achieve AR stakeout 5MP front camera auxiliary laser measure & aiming and AR stakeout |
| COMMUNICATION | |
| UHF radio | 2W Tx/Rx, 450-470 MHz Working range is 8-15km in ideal environments |
| Protocal | TT450,TRIMMARK3,SOUTH,LORA Link rate :9600bps to 19200bps |
| Wifi | 802.11b/g/n/ac Hotspot/Data Link |
| Bluetooth | Bluetooth 5.2 classical/BLE proprietary dual-mode |
| NFC | NFC touch pairing |
| WebUI | Accessible via Wi-Fi |
| 4G Cellular | Integrated full frequency multi band 4G modem supports LTE-TDD/LTEFDD/WCDMA/CDMA2000/UMTS/HSPA+/GSM/GPRS/EDGE |
| I/O port | 1xUSB Type-C port (Data download / Charging) |
| 1xAntenna port(UHF antenna interface) | |
| 1xSim card slot (Supports Nano-sim) | |
| 1x5-pin Lemo port (RS-232) | |
| Data formats | RTCM 2.X, RTCM 3.X, RINEX, NMEA 0183 output,VRS,NTRIP |
| Data storage | 32GB high speed memory |
| ELECTRICAL | |
| Battery | Internal Li-on Battery 7.4V 7000mAh |
| Charging specs | USB Type-C fast charging |
| Operation time | Rover mode:18 hours Base mode:7 hours Static mode:20 hours |
| HARDWARE | |
| Size | 125mm(W) 88mm (H) 4.92inch(W) 3.46inch(H) |
| Weight | 750g(1.65Ib) |
| Front panel | 0.96'' OLED color screen display 2 LED light, 2physical buttons (switchable mode, data link) |
| ENVIRONMENTS | |
| Working temperature | -45°C to +75°C |
| Storage temperature | -55°C to +85°C |
| Humidity | 100% non-condensation |
| Waterproof & Dustproof | IP67 |
| Drop | Survive a 2-meter pole-drop |
| Vibration | IK08 |
