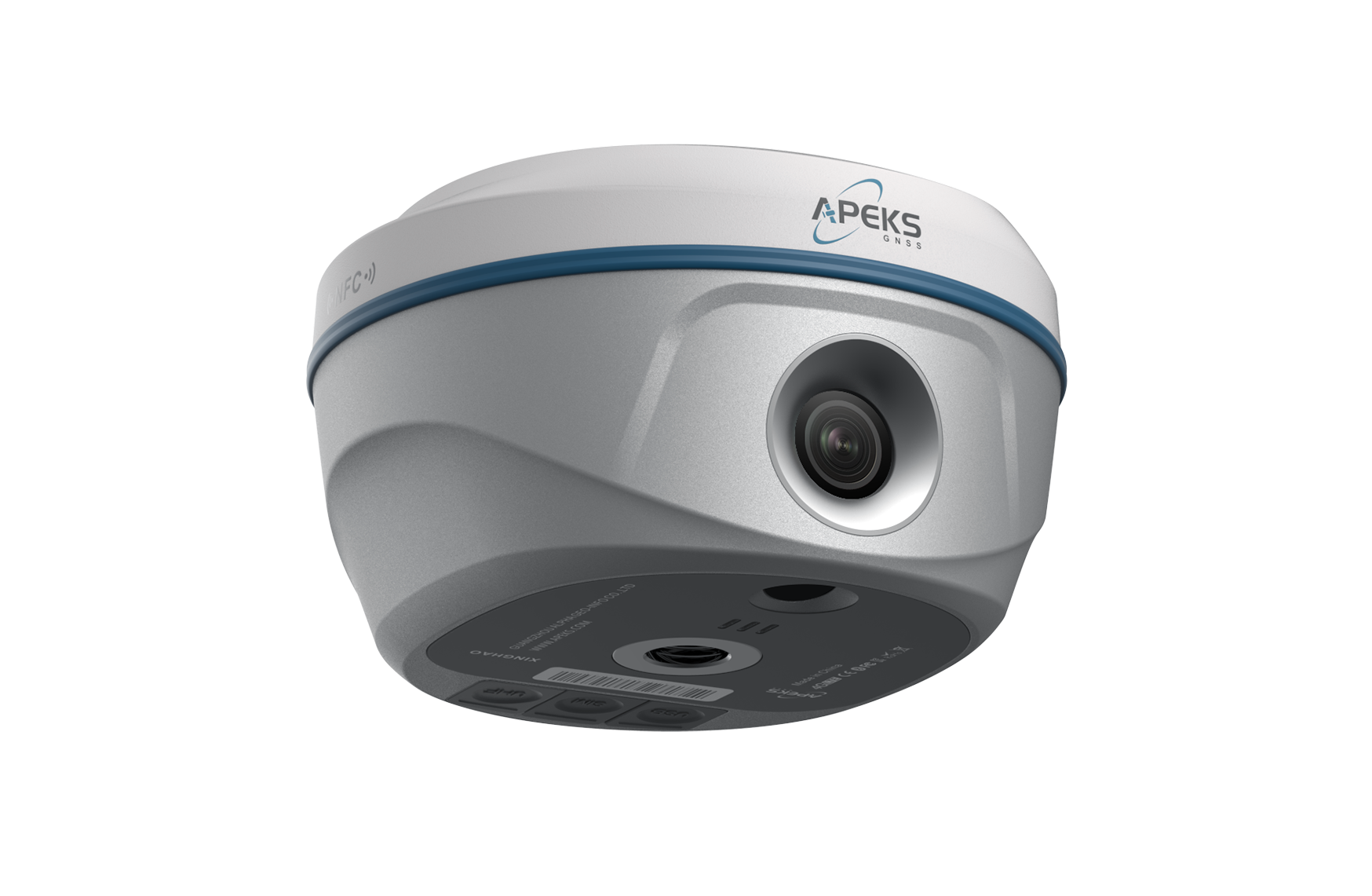

AP50 Vision IMU-RTK GNSS Receiver from China Suppliers | Advanced GNSS, IMU & Dual-Camera Technology Factory
Satellites Tracking
Channels
1408
GPS
L1C/A, L2C, L2P(Y), L5
GLONASS
L1, L2, L3*
Galileo
E1, E5a, E5b, E6*
BDS
B11, B21, B3l, B1C, B2a, B2b*
QZSS
L1C/A, L1C, L2C, L5
NavIC/IRNSS
L5
SABAS
L1, L5*
PPP
B2B-PPP/E6-HAS
Accuracy
Real time kinematics (RTK)
H: 8 mm + 1 ppm RMS
V: 15 mm+ 1 ppm RMS
Initialization time: <5s (typical)
Initialization reliability: >99.9%
V: 15 mm+ 1 ppm RMS
Initialization time: <5s (typical)
Initialization reliability: >99.9%
Post-processing kinematics (PPK)
H: 2.5 mm + 0.5 ppm RMS
V: 5 mm + 0.5 ppm RMS
V: 5 mm + 0.5 ppm RMS
PPP
H: 10cm RMS | V: 20cm RMS
DGPS
H: 0.4 m RMS | V: 0.8 m RMS
Single Point
H: 1.5 m RMS | V: 2.5 m RMS
Visual stakeout
H: 8 mm + 1 ppm RMS
V: 15 mm+ 1 ppm RMS
V: 15 mm+ 1 ppm RMS
Visual survey
Typical 2~4 cm, range 2~15 m (normal lighting conditions)
Position Frequency
1HZ 2HZ 5HZ 10HZ 20HZ 50HZ
Time to first fix
Cold start <45s
Hot start <10s
Signal re-acquisition < 1 s
Hot start <10s
Signal re-acquisition < 1 s
IMU tilt angle
0-120°
IMU tilt survey accuracy
≤2cm within 60° tilt angle
Camera
Number of cameras
2
Pixel
Global shutter 2MP & 5MP
Frame rate
30fps
Field of view
84°
Features
2MP front camera achieve visual measurements
5MP bottom camera achieve AR stakeout
5MP bottom camera achieve AR stakeout
Communication
UHF radio
2W Tx/Rx, 410-470 MHz
Working range is 8-15km in ideal environments
Working range is 8-15km in ideal environments
Protocol
TT450, TRIMMARK3, SOUTH, SATEL
Link rate: 9600bps to 19200bps
Link rate: 9600bps to 19200bps
Wifi
802.11b/g/n/ac
Hotspot/Data Link
Hotspot/Data Link
Bluetooth
Bluetooth 5.2 classical/BLE proprietary dual-mode
NFC
NFC touch pairing
WebUI
Accessible via Wi-Fi
4G Cellular
Integrated full frequency multi band 4G modem
supports LTE-TDD/LTEFDD/WCDMA/CDMA2000/UMTS/HSPA+/GSM/GPRS/EDGE
supports LTE-TDD/LTEFDD/WCDMA/CDMA2000/UMTS/HSPA+/GSM/GPRS/EDGE
I/O port
1xUSB Type-C port (Data download / Charging)
1xAntenna port (UHF antenna interface)
1xSim card slot (Supports Nano-sim)
Data formats
RTCM 2.X, RTCM 3.X, RINEX, NMEA 0183 output, NTRIP
Data storage
32GB high speed memory
Electrical
Battery
Internal Li-on Battery 7.4V 7000mAh
Charging specs
USB Type-C fast charging
Operation time
Rover mode: 18 hours
Base mode: 7 hours
Static mode: 20 hours
Base mode: 7 hours
Static mode: 20 hours
Hardware
Size
129mm(W) 77mm (H)
5inch(W) 3inch(H)
5inch(W) 3inch(H)
Weight
800g (1.76Ib)
Front panel
1x Data Link, 1x Satellite, 1x Bluetooth, 1xPower
Environments
Working temperature
-45°C to +75°C
Storage temperature
-55°C to +85°C
Humidity
100% non-condensation
Waterproof & Dustproof
IP67
Drop
Survive a 2-meter pole-drop
Vibration
IK08
Frequently Asked Questions
Q: How many channels does the receiver support, and which satellite systems does it track?
The receiver features 1408 channels and supports tracking for GPS (L1C/A, L2C, L2P(Y), L5), GLONASS (L1, L2, L3*), Galileo (E1, E5a, E5b, E6*), BDS (B11, B21, B3l, B1C, B2a, B2b*), QZSS (L1C/A, L1C, L2C, L5), NavIC/IRNSS (L5), SABAS (L1, L5*), and PPP (B2B-PPP/E6-HAS).
Q: What is the accuracy of the Visual Survey and Visual Stakeout features?
Visual stakeout accuracy is H: 8 mm + 1 ppm RMS and V: 15 mm + 1 ppm RMS. The visual survey feature offers a typical accuracy of 2 to 4 cm within a range of 2 to 15 meters under normal lighting conditions.
Q: What are the specifications and functions of the dual cameras?
The receiver is equipped with 2 cameras running at 30fps with an 84° Field of View: a 2MP front camera with a global shutter for visual measurements, and a 5MP bottom camera for AR stakeout.
Q: How long does the battery last, and does it support fast charging?
It features an internal 7.4V 7000mAh Li-ion battery that supports USB Type-C fast charging. It provides up to 18 hours of operation in Rover mode, 7 hours in Base mode, and 20 hours in Static mode.
Q: What are the environmental protection ratings of the hardware?
The device is highly durable, designed with an IP67 waterproof and dustproof rating, and IK08 vibration resistance. It can survive a 2-meter pole-drop and operates in temperatures ranging from -45°C to +75°C.
Q: What is the range and capability of the integrated UHF radio?
The integrated 2W Tx/Rx UHF radio operates on the 410-470 MHz frequency range, supporting protocols like TT450, TRIMMARK3, SOUTH, and SATEL. It has a working range of 8-15km in ideal environments with link rates from 9600bps to 19200bps.
