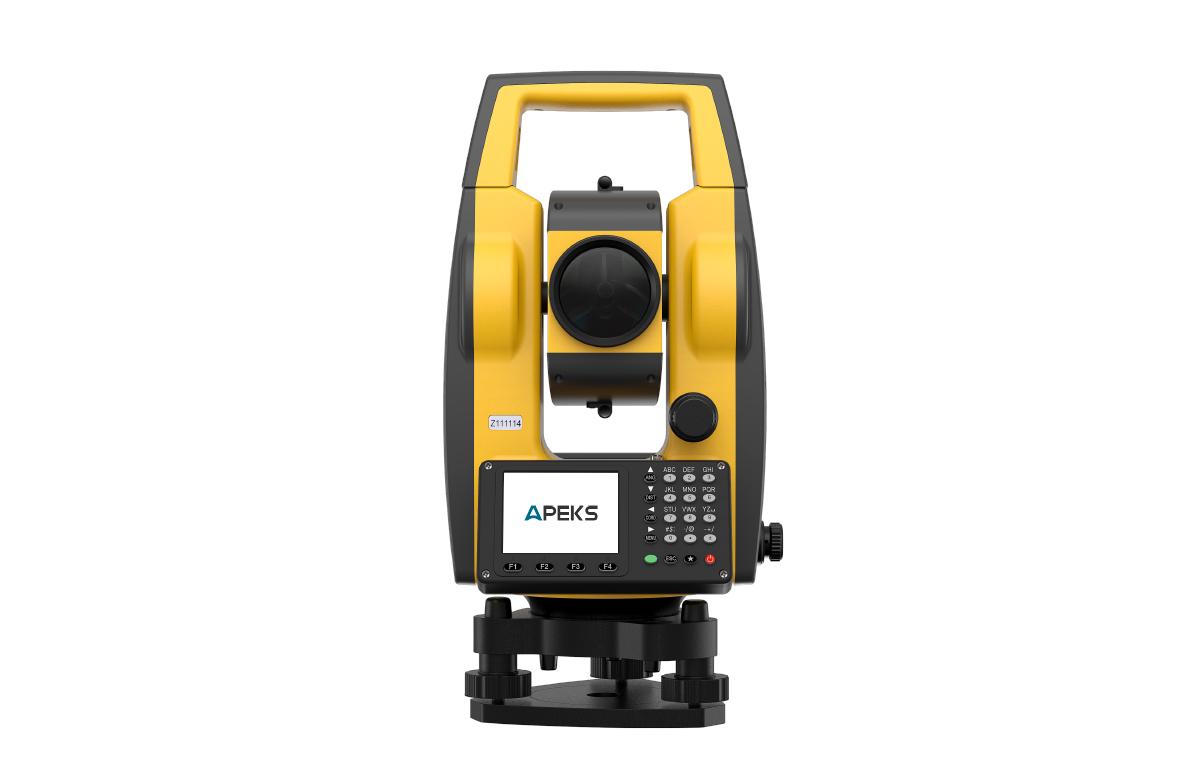

China Suppliers Apeks AM02 2 Accuracy Total Station - 1000m Reflectorless & 5000m Prism Mode Factory Equipment
|
Angle measurement
|
|
| Angle measurement principle | Absolute Encoding |
| Minimum Reading | 1″/5″/10″(0.3mgon/1.5mgon/3mgon) optional |
| Angle Accuracy | 2'' |
|
Distance measurement (Reflectorless)
|
|
| Range | 1000m |
| Accuracy | ±(3mm+2ppm) |
| Measurement time | Approximately 1.5s |
|
Distance measurement (prism mode)
|
|
| Range | 5000m |
| Accuracy | ±(2mm＋2ppm) |
| Measurement time | Repeat/Tracking: 0.8s/0.3s |
|
Telescope
|
|
| Magnification | 30X |
| Field of View | 1°30′ (2.7m at 100m) |
| Minimum Focusing Distance | 1.5m |
| Reticle | illumination |
|
Compensator
|
|
| System | Dual-Axis Compensation |
| Compensation Range | ±3'' |
| Setting precision | 1'' |
|
Communication
|
|
| Internal Data Memory | Approx. 20,000 Points |
| Interface | Standard RS232/SD card⁴ /Micro USB/USB flash drive |
| Wireless communication | Bluetooth |
| Data format | ASCII |
|
Operate
|
|
| Operating System | Real-Time Operating System |
| Display Screen | 2.8'' 240*320 pixel color display screen |
| Keyboard | 2 sides Alphanumeric backlit crystal keyboard |
|
Plummet
|
|
| Type | Laser point, 4 brightness levels adjustment |
| Centering Accuracy | 1mm at 1.5m instrument height |
|
Power Supply
|
|
| Li-ion battery capacity | Rechargeable Li-ion battery 7.4V (DC) / 3000mAh |
| Working hours | 16 hours continuous angle measurement mode with 2 battery |
| Measuring Times | Approx. 12000 times |
|
Environmental conditions
|
|
| Operating Temperature | -20℃ ~+50℃( -4℉ to +122℉) |
| Storage Temperature | -40℃ ~+70℃(-40℉ to + 158℉) |
| Temperature & pressure input | auto correction |
| Dust&Water Proof | IP55,95%, non-condensing |
|
Size & Weight
|
|
| Size | 200 x 200 x 355 mm (7.68 x 7.28 x 14.37 in) |
| Weight | 5.6kg |
What is the angle accuracy of this instrument?
The instrument features an angle accuracy of 2'' with absolute encoding measurement principles and optional minimum readings of 1″, 5″, or 10″.
What is the maximum distance range for reflectorless measurement?
In reflectorless mode, the measuring range is up to 1000m with an accuracy of ±(3mm+2ppm) and a measurement time of approximately 1.5 seconds.
How far can it measure using the prism mode?
With the prism mode, the distance measurement range extends up to 5000m with a high accuracy of ±(2mm＋2ppm). The tracking measurement time is as fast as 0.3 seconds.
What is the battery life and working hours?
It uses a rechargeable 7.4V (DC) / 3000mAh Li-ion battery, providing up to 16 hours of continuous angle measurement mode when using 2 batteries, which is equivalent to approximately 12,000 measuring times.
Does it support wireless data transmission?
Yes, it features Bluetooth wireless communication alongside standard physical interfaces including RS232, SD card slot, Micro USB, and USB flash drive support utilizing the ASCII data format.
What are the environmental protection ratings?
The device is rated IP55 for dust and water proof protection (95% non-condensing) and can operate in temperatures ranging from -20℃ to +50℃ (-4℉ to +122℉).
