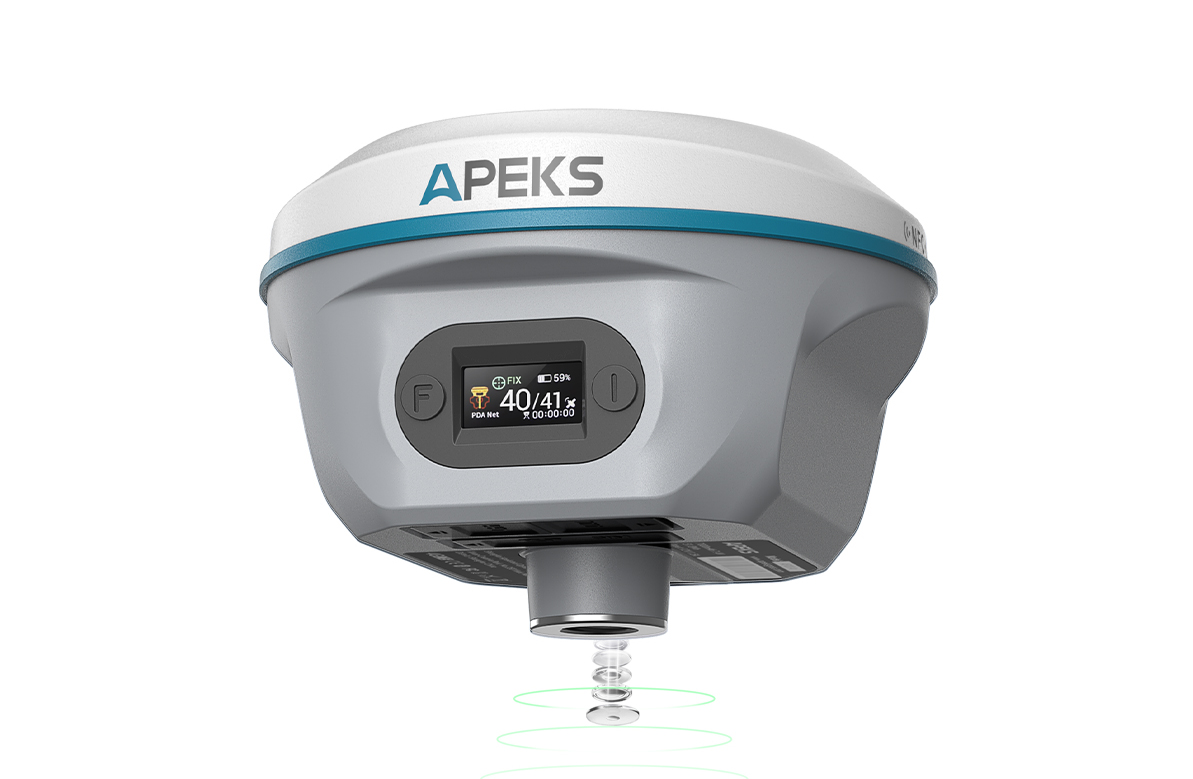

High-Quality AP20AR from Reliable China Suppliers and Factory - Product Brochure EN
Satellites Tracking
| Channels | 1408 |
| GPS | L1C/A, L1C, L2C, L2P(Y), L5 |
| GLONASS | L1, L2, L3* |
| Galileo | E1, E5a, E5b, E6 |
| BDS | B1I, B2I, B3I, B1C, B2a, B2b |
| QZSS | L1C/A, L1C, L2C, L5, L6 |
| NavIC/IRNSS | L5 |
| SBAS | L1C/A |
| L-Band | B2B-PPP & E6-HAS |
Accuracy
| Real Time Kinematics (RTK) |
Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS Initialization time: <5s (typical) Initialization reliability: >99.9% |
| Post-Processing Kinematics (PPK) |
Horizontal: 3 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS |
| Static |
Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS |
| PPP | Horizontal: 10cm RMS | Vertical: 20cm RMS |
| DGPS | Horizontal: 0.4 m RMS | Vertical: 0.8 m RMS |
| Single Point | Horizontal: 1.5 m RMS | Vertical: 2.5 m RMS |
| AR Stakeout |
Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS |
| Position Frequency | 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz |
| Time to First Fix |
Cold start: <45s Hot start: <10s Signal re-acquisition: <1s |
| IMU Tilt Angle | 0-120° |
| IMU Tilt Survey Accuracy | ≤2cm within 60° tilt angle |
Camera
| Number of Cameras | 1 |
| Pixel | Global shutter with 5MP |
| Frame Rate | 30fps |
| Field of View | 84° |
| Features | Achieve AR stakeout |
Communication
| UHF Radio |
2W Tx/Rx, 410-470 MHz Working range is 8-15km in ideal environments |
| Protocol |
TT450, TRIMMARK3, SOUTH, LORA Link rate: 9600bps to 19200bps |
| Wifi |
802.11b/g/n/ac Hotspot / Data Link |
| Bluetooth | Bluetooth 5.2 classical/BLE proprietary dual-mode |
| NFC | NFC touch pairing |
| WebUI | Accessible via Wi-Fi |
| 4G Cellular |
Integrated full frequency multi band 4G modem Supports LTE-TDD/LTE-FDD/WCDMA/CDMA2000/UMTS/HSPA+/GSM/GPRS/EDGE |
| I/O Port |
1x USB Type-C port (Data download / Charging) 1x Antenna port (UHF antenna interface) 1x SIM card slot (Supports Nano-SIM) 1x 5-pin Lemo port (RS-232) |
| Data Formats | RTCM 2.X, RTCM 3.X, RINEX, NMEA 0183 output, VRS, NTRIP |
| Data Storage | 32GB high speed memory |
Electrical
| Battery | Internal Li-ion Battery 7.4V 7000mAh |
| Charging Specs | USB Type-C fast charging |
| Operation Time |
Rover mode: 18 hours Base mode: 7 hours Static mode: 20 hours |
Hardware & Environments
| Size | 125mm(W) × 88mm(H) (4.92" W × 3.46" H) |
| Weight | 800g (1.76 lbs) |
| Front Panel |
0.96'' OLED color screen display 2 LED lights, 2 physical buttons (switchable mode, data link) |
| Working Temp. | -45°C to +75°C |
| Storage Temp. | -55°C to +85°C |
| Humidity | 100% non-condensation |
| Water/Dustproof | IP67 |
| Drop Resistance | Survive a 2-meter pole-drop |
| Vibration | IK08 |
Frequently Asked Questions
How many channels does this GNSS receiver support?
The receiver features 1408 channels and supports tracking for GPS, GLONASS, Galileo, BDS, QZSS, NavIC/IRNSS, SBAS, and L-Band (B2B-PPP & E6-HAS).
What is the camera spec and how does it assist in surveying?
The receiver is equipped with a 5MP global shutter camera operating at 30fps with an 84° field of view, specifically designed to achieve AR stakeout functionality.
What is the accuracy and range of the IMU tilt sensor?
The IMU tilt sensor supports a tilt angle range of 0-120° and delivers a tilt survey accuracy of ≤2cm within a 60° tilt angle.
How long does the internal battery last on a single charge?
The internal 7.4V 7000mAh Li-ion battery provides up to 18 hours of operation in Rover mode, 7 hours in Base mode, and 20 hours in Static mode. It supports fast charging via USB Type-C.
What are the environmental protection ratings for this device?
The device is rated IP67 waterproof and dustproof, has an IK08 vibration resistance rating, and is built to survive a 2-meter pole-drop. It operates in temperatures ranging from -45°C to +75°C.
What are the communication protocols and ranges supported by the UHF radio?
The integrated 2W Tx/Rx UHF radio operates within the 410-470 MHz frequency range with a working distance of 8-15km in ideal environments. It supports TT450, TRIMMARK3, SOUTH, and LORA protocols with link rates from 9600bps to 19200bps.
