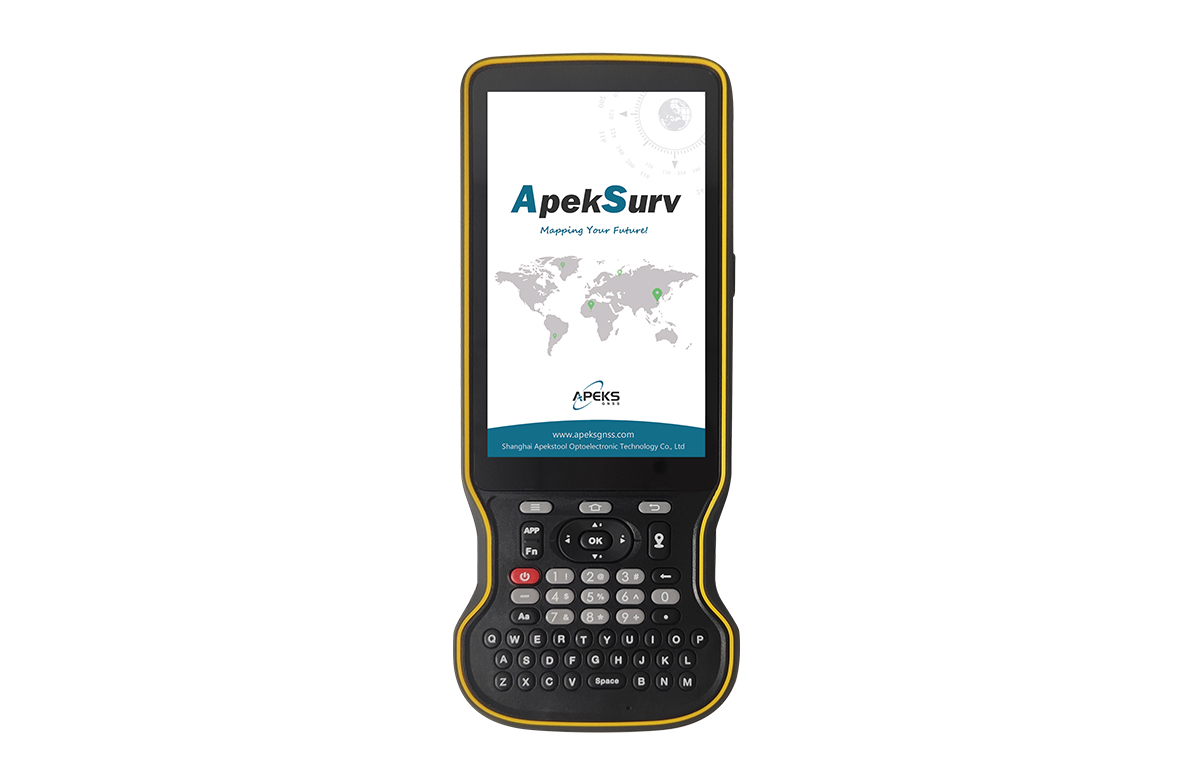

China Suppliers CS5i Rugged Surveying Controller - Durable, High-Performance Factory Solution
System Specifications
| Operating system | Android 12 |
| CPU | Qualcomm SDM 662 octa-core 2.0 GHz |
| RAM | 4 GB |
| Flash memory | 64 GB |
| Memory card | MicroSDHC up to 128 GB |
Physical Specifications
| Size (L×W×H) | 228 mm × 96 mm × 21 mm |
| Weight | 420g with battery |
| Environment | Operating: -20℃ to +65℃ (-4°F to +149°F) Storage: -30℃ to +70℃ (-22°F to +158°F) |
| Dust and water proof | IP68 |
| Humidity | 5%~95% (non-condensing) |
| Shock and vibration | 1.2m (4 ft) fall on concrete |
| Display | 5.5" IPS LTPS LCD capacitive multi-touch 1920×1080 pixels HD+ 401 ppi Brightness 500 nit |
| Keypad | QWERTY full keyboard |
Communications
| SIM Card Type | Nano-SIM card |
| Network modem | GSM: 850/900/1800/1900 WCDMA: B1/B2/B4/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B28 |
| Wi-Fi | 802.11 a/b/g/n/ac, access point mode (2.4G/5G) |
| Bluetooth | V5.0 |
| USB | Type C, OTG supported |
| NFC | Support |
Electrical & Accessories
| Li-ion battery capacity | 9000 mAh |
| Operating time | 22 hours |
| Charging time | 4 hours (typical) |
| Standard Accessories | AVC charger, USB cable, Stylus, Handstrap |
| Certifications | CE, FCC |
Frequently Asked Questions (FAQ)
What operating system and processor power this device?
The device runs on Android 12 and is powered by a high-performance Qualcomm SDM 662 octa-core 2.0 GHz processor, supported by 4 GB of RAM and 64 GB of flash memory.
Is the device dustproof and waterproof?
Yes, the device features an IP68 dust and water proof rating. It is also designed to withstand extreme environments, operating in temperatures from -20℃ to +65℃, and is built to survive a 1.2m (4 ft) fall onto concrete.
What are the display specifications?
The device features a 5.5-inch IPS LTPS LCD capacitive multi-touch display. It offers a high-definition resolution of 1920×1080 pixels (HD+ 401 ppi) and a brightness level of 500 nits for outdoor readability.
What is the battery capacity and runtime?
It is equipped with a large-capacity 9000 mAh Li-ion battery that provides up to 22 hours of operating time. The typical charging time is approximately 4 hours.
What network connectivity and SIM cards are supported?
The device supports a Nano-SIM card and is compatible with global network bands including GSM, WCDMA, LTE-TDD, and LTE-FDD. It also supports Wi-Fi 802.11 a/b/g/n/ac (2.4G/5G), Bluetooth V5.0, and NFC.
What accessories come standard with the device?
The standard accessories package includes an AVC charger, a USB cable, a stylus, and a handstrap.
