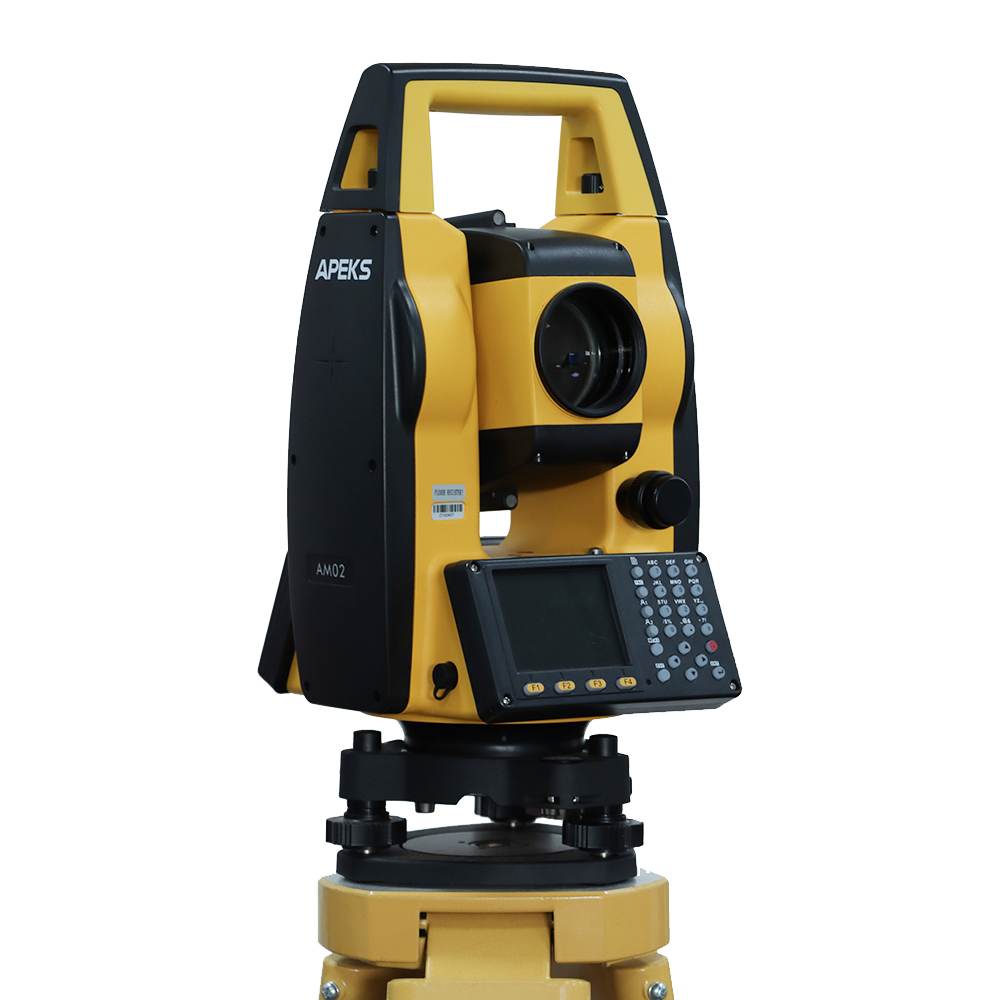

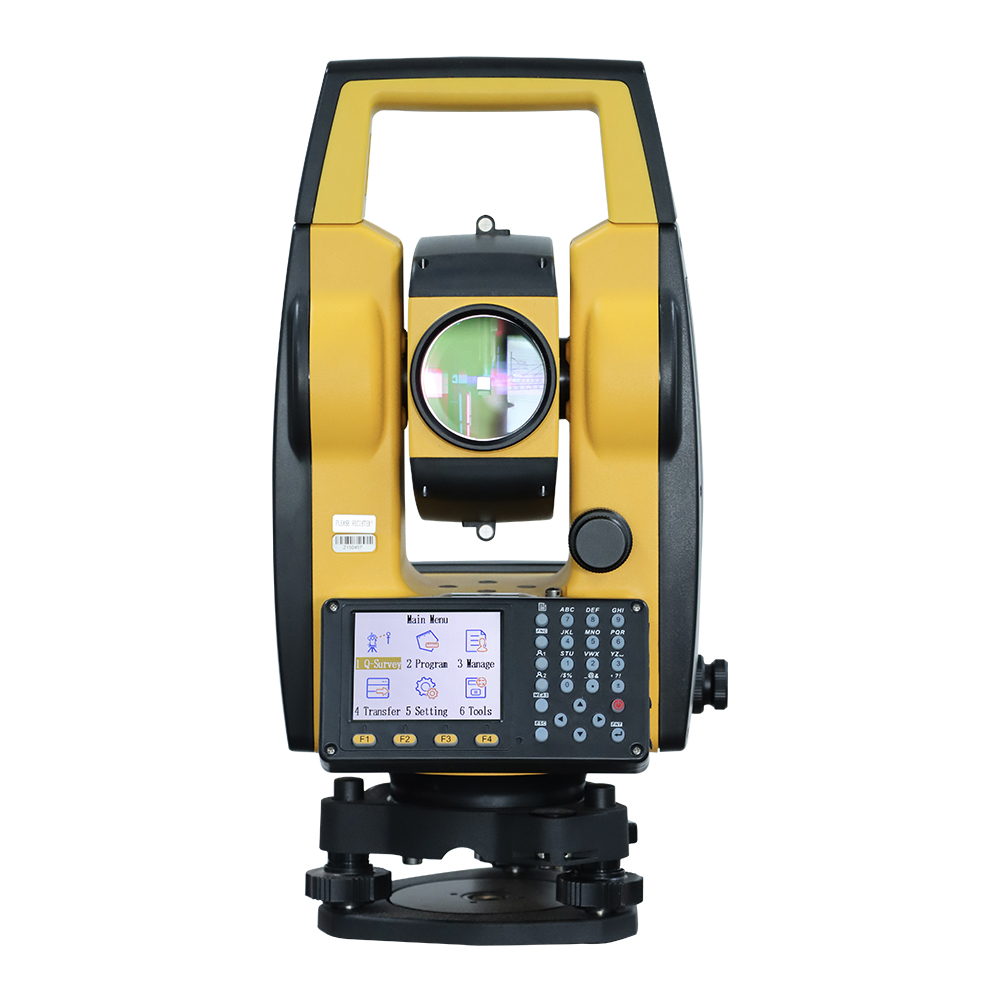

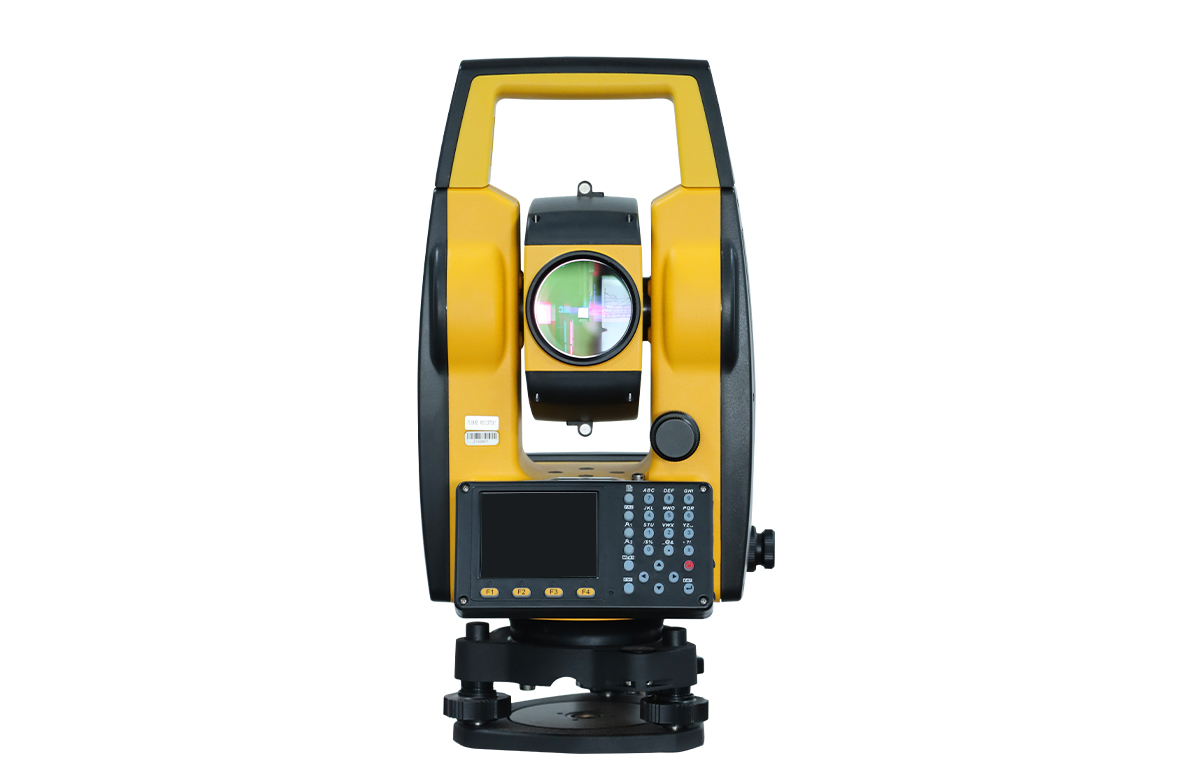

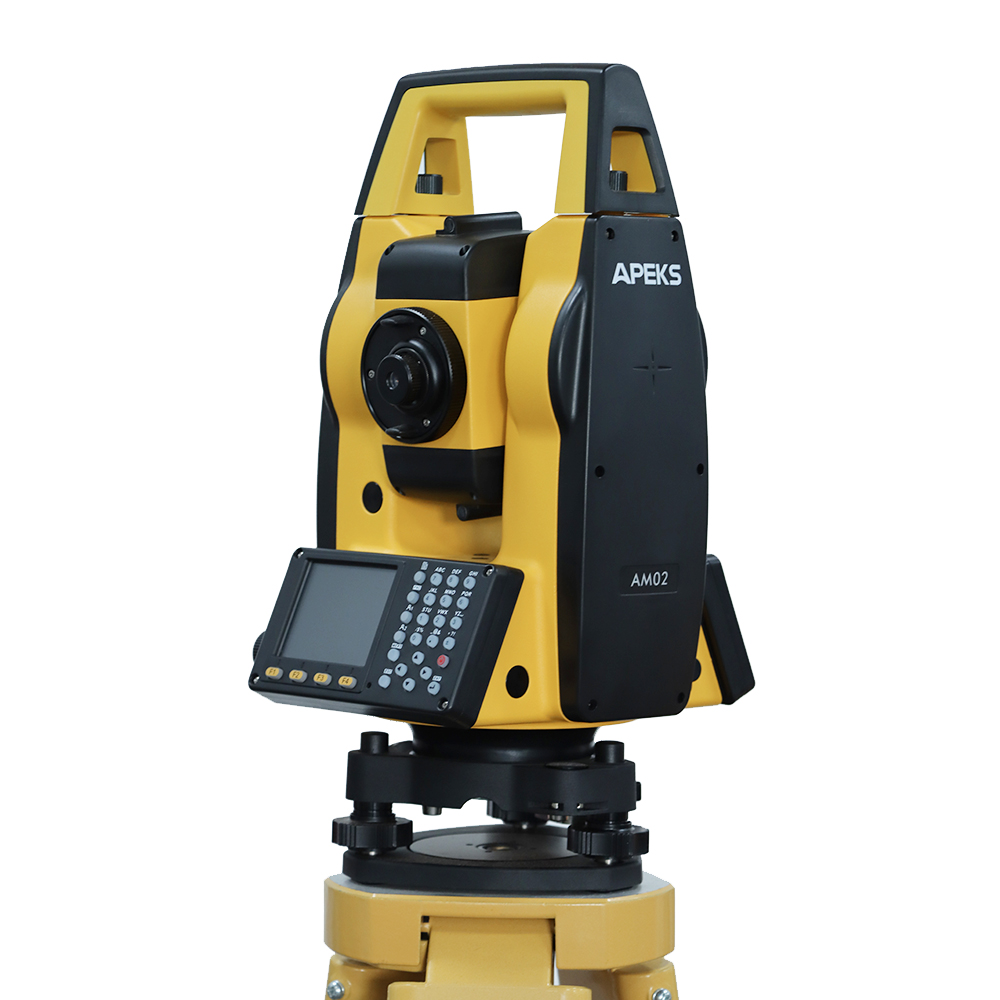

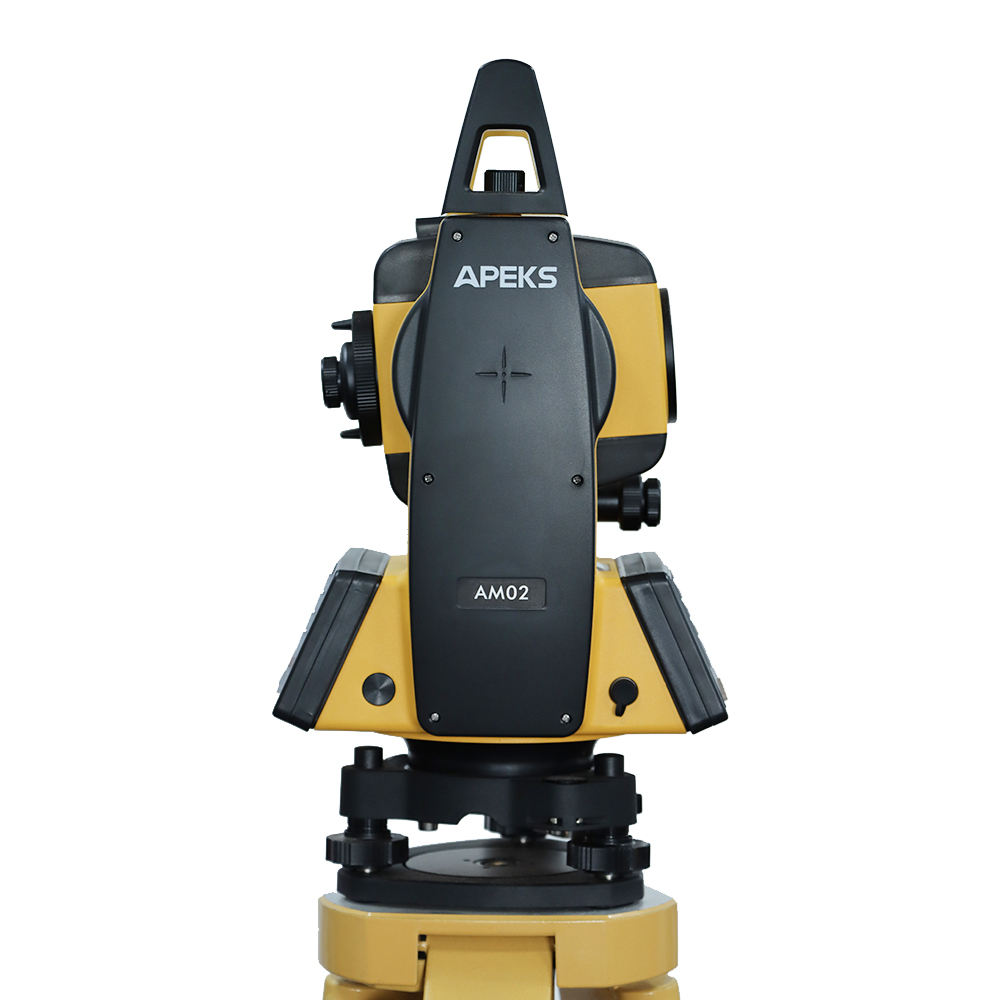

China Apeks AM02 Total Station - 2 Accuracy, 1000M Reflectorless & 5000M Prism Mode | Suppliers & Factory Direct
Angle Measurement
| Principle | Absolute Encoding |
| Minimum Reading | 1″ / 5″ / 10″ (0.3mgon / 1.5mgon / 3mgon) optional |
| Angle Accuracy | 2″ |
Distance (Reflectorless)
| Range | 1000m |
| Accuracy | ±(3mm + 2ppm) |
| Measurement Time | Approximately 1.5s |
Distance (Prism Mode)
| Range | 5000m |
| Accuracy | ±(2mm + 2ppm) |
| Measurement Time | Repeat/Tracking: 0.8s / 0.3s |
Telescope
| Magnification | 30X |
| Field of View | 1°30′ (2.7m at 100m) |
| Min Focusing Distance | 1.5m |
| Reticle | Illumination |
Compensator
| System | Dual-Axis Compensation |
| Compensation Range | ±3′ |
| Setting Precision | 1″ |
Communication
| Internal Memory | Approx. 20,000 Points |
| Interface | RS232 / SD card⁴ / Micro USB / USB Drive |
| Wireless | Bluetooth |
| Data Format | ASCII |
Operation
| Operating System | Real-Time Operating System |
| Display Screen | 2.8″ 240*320 Color Display |
| Keyboard | 2 sides Alphanumeric Backlit Crystal |
Plummet
| Type | Laser Point (4 brightness levels) |
| Centering Accuracy | 1mm at 1.5m instrument height |
Power Supply
| Battery Capacity | Li-ion 7.4V (DC) / 3000mAh |
| Working Hours | 16 hours continuous (with 2 batteries) |
| Measuring Times | Approx. 12,000 times |
Environment & Dimensions
| Operating Temp | -20℃ to +50℃ (-4℉ to +122℉) |
| Storage Temp | -40℃ to +70℃ (-40℉ to +158℉) |
| Protection Rating | IP55, 95% non-condensing |
| Correction | Auto Temp & Pressure input |
| Dimensions | 200 x 200 x 355 mm |
| Weight | 5.6 kg |
Frequently Asked Questions (FAQ)
What is the maximum measuring range in prism and reflectorless modes?
The device supports long-range measurements up to 5,000 meters in prism mode with an accuracy of ±(2mm + 2ppm), and up to 1,000 meters in reflectorless mode with an accuracy of ±(3mm + 2ppm).
What is the angle measurement precision and optical magnification?
It features an absolute encoding angle measurement system with 2″ angle accuracy (selectable reading of 1″, 5″, or 10″) paired with a 30X optical magnification illuminated reticle telescope.
How long does the battery last in the field?
Powered by rechargeable 7.4V / 3000mAh Li-ion batteries, it provides up to 16 hours of continuous angle measurement mode (using 2 batteries) and roughly 12,000 total measuring cycles.
What data transfer and communication options are available?
Data can be exported in standard ASCII format via Bluetooth wireless connectivity, RS232 serial interface, SD card, Micro USB, or standard USB flash drive. It stores approximately 20,000 internal memory points.
Is the unit protected against harsh weather conditions?
Yes, it features an IP55 dust and waterproof rating, operational within extreme temperature ranges of -20℃ to +50℃ (-4℉ to +122℉) along with automatic temperature and pressure correction.
What type of plummet and leveling compensation does it use?
The instrument utilizes a dual-axis compensator with a ±3′ range (1″ precision) and a 4-level brightness-adjustable laser plummet with 1mm centering accuracy at a 1.5m height.
