RTK GNSS for Pipeline & Utility Corridor Survey: 2026 Field Guide
Linear infrastructure projects — pipelines, transmission corridors, and utility routes — present a unique surveying challenge: unlike a single job site, errors at the starting control point compound across the entire route, sometimes hundreds of kilometres long. RTK GNSS solves this by giving every point along the corridor an independent, absolute coordinate rather than relying on chained traverse measurements. This approach has been field-verified on a 400km HDPE and steel pipeline project in Tanzania, where primary control point verification at Nyangokolwa preceded alignment staking along the full corridor length.
- 1. Why Linear Infrastructure Survey Is Different
- 2. Field Case: 400km Pipeline Survey in Tanzania
- 3. The Control-Point-First Workflow
- 4. Core Survey Tasks Along a Pipeline Corridor
- 5. Equipment Requirements for Long Linear Projects
- 6. When Base+Rover Beats Network RTK on Long Corridors
- 7. Recommended Equipment
- 8. FAQ
1. Why Linear Infrastructure Survey Is Different
Linear infrastructure projects — such as oil and gas pipelines, water mains, high-voltage transmission lines, and road corridors — operate under different surveying principles than compact, bounded construction sites.
In conventional optical traverse surveys, angular and distance measurement errors accumulate sequentially along the traverse line. On a corridor extending over hundreds of kilometres, a minor angular discrepancy at the starting control point compounds into significant systematic offset downstream.
RTK GNSS eliminates error chaining by delivering independent, absolute geodetic coordinates for every survey point along the route. Every stakeout position references satellite constellations and validated base benchmarks directly, ensuring zero cumulative drift from origin to terminus.
2. Field Case: 400km Pipeline Survey in Tanzania

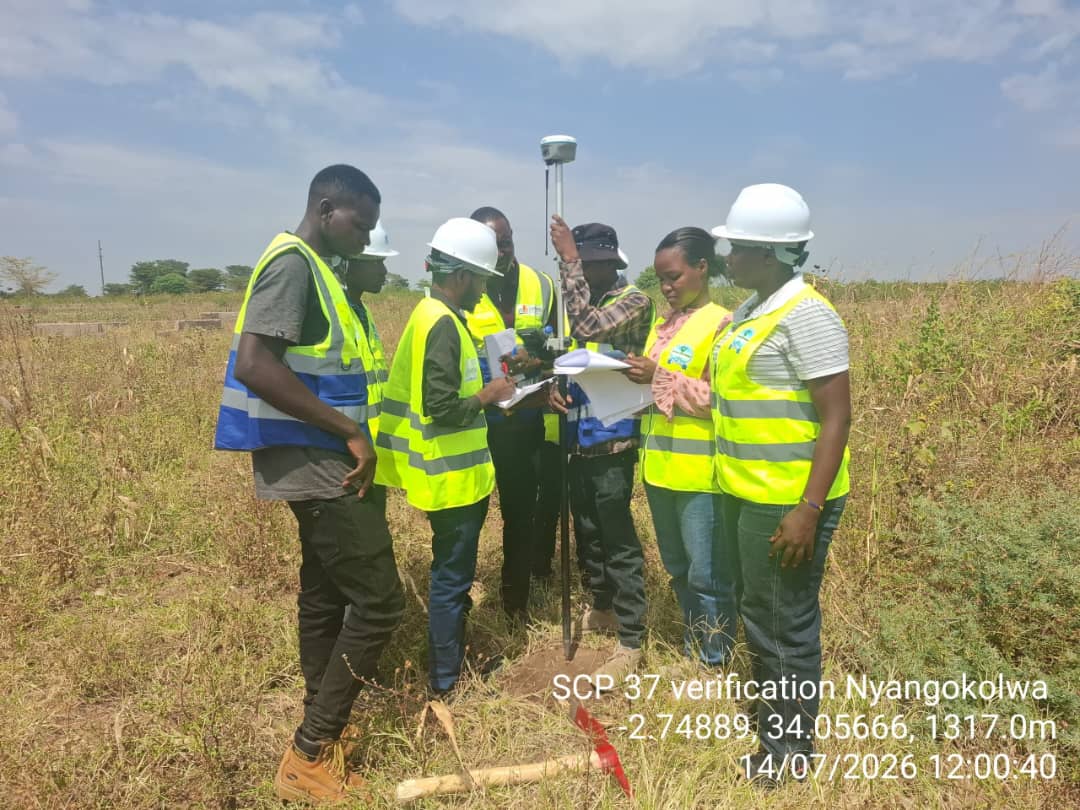

A 400km HDPE and steel pipeline project in Tanzania relied on RTK GNSS for primary survey control verification and alignment staking along the entire corridor. Before staking out the pipeline centerline, field teams verified primary control points — including reference point SCP37 near Nyangokolwa — ensuring every downstream measurement along the route tied back to a confirmed, accurate baseline.
Establishing absolute control at key regional monuments prevents local grid distortion when transitioning between different construction sectors along long pipeline routes.
👉 Read the complete project report: APEKS GNSS Tanzania 400km Pipeline Survey Case Study
3. The Control-Point-First Workflow
Before commencing alignment setting-out, occupy and re-verify established primary geodetic control monuments (such as SCP37 in Nyangokolwa). Confirm baseline coordinate precision and datum transformation parameters before extending survey operations.
Set up a high-power base station over verified control monuments to anchor downstream layout teams, establishing an independent differential correction link across active corridor sectors.

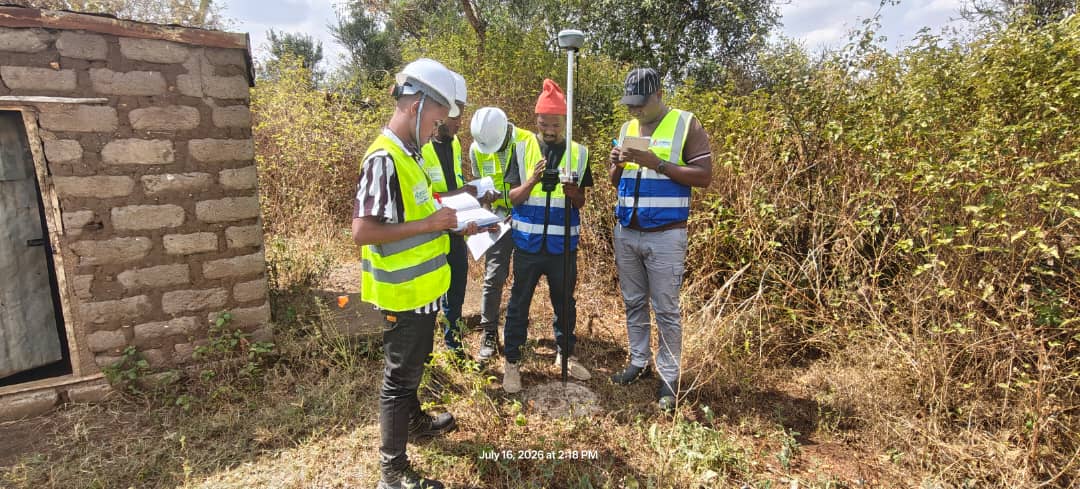

Stake out pipeline centerlines in planned working sections. Log as-staked coordinates in real time to create an audited digital trail for engineering inspection and trenching crews.
At planned corridor intervals, perform check shots on secondary control benchmarks to detect localized land movement, base setup displacement, or datum configuration errors early.
4. Core Survey Tasks Along a Pipeline Corridor
Linear infrastructure projects encompass several distinct surveying phases throughout construction:
- Primary Control Verification & Datum Establishment: Occupying national or regional geodetic monuments to establish a verified baseline framework for the entire corridor.
- Centerline Setting-Out: Staking the exact trench centerlines, offset markers, and right-of-way (ROW) boundaries for excavation machinery.
- Node & Feature Positioning: High-precision stakeout of valve chambers, pumping stations, pressure-regulating stations, and inspection manholes.
- Crossing Surveys: Executing detailed topo-profile surveys at critical intersections, including major highways, riverbeds, and railway crossings.
- As-Built Documentation: Recording exact pipe invert elevations, weld joint coordinates, and backfill depths prior to trench covering for GIS archive ingestion.
5. Equipment Requirements for Long Linear Projects
Executing long-corridor surveys places specific hardware demands on GNSS receivers beyond basic positioning accuracy:
Field Operational Uptime: Equipment must operate reliably across multi-week remote deployments under dusty, high-vibration field conditions without hardware degradation.
Self-Contained Correction Links: Linear routes routinely cross remote regions lacking cellular tower coverage, requiring independent Base+Rover radio communication links.
Multi-Constellation Satellite Tracking: Full-constellation receivers (such as 1408-channel units) maintain stable RTK Fixed solutions when crossing challenging topography, including deep river valleys, dense forest belts, and hilly terrain.
6. When Base+Rover Beats Network RTK on Long Corridors
Symptom: Network RTK connections drop frequently or fail to initialize as survey crews move along extended pipeline alignments.
Cause: Linear infrastructure spans hundreds of kilometres across urban, rural, and wilderness zones where municipal CORS networks or 4G cellular data coverage are inconsistent.
Fix: Deploy an independent local Base+Rover kit as the primary correction source. Standalone base stations like the MAX5 (featuring 5W LoRa radio transmission with up to 25 km range) allow sectional corridor progress with minimal base relocations.
7. Recommended Equipment
| Receiver Model | Core Feature Highlight | Linear Corridor Application |
|---|---|---|
| AP40 Laser+ | 120m green laser + 120° IMU | Control point verification and steep river/slope crossing stakeout. |
| AP20 AR | 120° IMU + AR visual stakeout | Standard pipeline centerline setting-out and rapid ROW pin marking. |
| MAX5 | 5W LoRa base station with 25km range | Standalone base support for remote corridor sections lacking CORS coverage. |
| APS1 | UM980 board with PPP/HAS support | Pipeline route reconnaissance and rapid GIS data collection (~$450 entry cost). |
8. FAQ
Why is control point verification critical before pipeline staking?
Verifying origin control points ensures that all downstream pipeline centerline staking references a confirmed geodetic baseline. Unverified starting points can introduce systematic coordinate shifts that compound across long distances, leading to boundary disputes or misalignment at tie-in points.
How does RTK GNSS reduce error accumulation on long linear projects?
Unlike optical traverse surveying where angular errors compound sequentially over distance, RTK GNSS provides independent, absolute coordinates for every measured point. Each stakeout point references satellite constellations directly, preventing error propagation along the route.
What equipment works best when CORS coverage is inconsistent along a corridor?
When cellular or CORS coverage is unreliable, deploying a high-power local Base+Rover setup (such as the APEKS MAX5 base station with 5W LoRa radio) provides an independent 25 km UHF/LoRa correction link that functions without internet or cellular connectivity.
Has RTK GNSS been field-tested on large-scale pipeline projects?
Yes. APEKS RTK GNSS equipment was deployed on a 400km HDPE and steel pipeline project in Tanzania, successfully executing primary control point verification (SCP37 at Nyangokolwa), centerline setting-out, and real-time data logging along the full route.
