APEKS AP10 GNSS in Thailand: Rubber Plantation RTK Survey
Surveying in Southeast Asia presents extreme challenges for RTK GNSS receivers: dense rubber plantations cause severe signal multipath, deep earthwork trenches restrict sky visibility, and remote hilly terrains lack cellular CORS coverage. The APEKS AP10 GNSS receiver overcomes these obstacles without requiring a premium price tag. Utilizing a 1408-channel processing core, it maintains a ±8mm Fixed status under heavy tropical canopy. For restricted-sky trenches, its 120° calibration-free IMU allows extreme pole tilt, while the internal 2W UHF radio ensures reliable Base-Rover communication up to 15km in off-grid hills. It is the ultimate cost-effective solution for tropical topographic and cadastral surveying.
- 1. The Challenges of Surveying in Tropical Environments
- 2. Scene A: Overcoming Multipath in Dense Rubber Plantations
- 3. Scene B: Restricted Sky View in Deep Trench Earthworks
- 4. Scene C: Base & Rover Setup in Off-Grid Hilly Terrain
- 5. Why AP10 is the Cost-Effective Choice for SE Asia
- 6. Key Specifications
- 7. Field Results from Thailand
- 8. Risk Warning: Tropical Heat & Humidity
- 9. FAQ
1. The Challenges of Surveying in Tropical Environments
Surveying in Southeast Asia (such as southern Thailand) is highly hostile to RTK technology. Field crews constantly battle three major signal killers:
- Rubber & Palm Plantations: The dense, broad-leaf canopies are highly saturated with moisture. This not only blocks satellite signals but creates intense multipath effects, causing older RTK models to frequently drop their Fixed status.
- Infrastructure Deep Trenches: When excavating deep red-dirt trenches for road bases or pipe networks, surveyors must climb down into the excavation. This creates a "restricted sky view," severely compressing the receiver's visibility to orbiting satellites.
- Off-Grid Hilly Terrain: Remote undulations and deep rural hills lack both 4G cellular signal and access to public CORS network infrastructure, rendering network rovers useless.
2. Scene A: Overcoming Multipath in Dense Rubber Plantations
Cadastral and boundary surveying across Thailand frequently routes field crews directly through massive commercial rubber plantations.

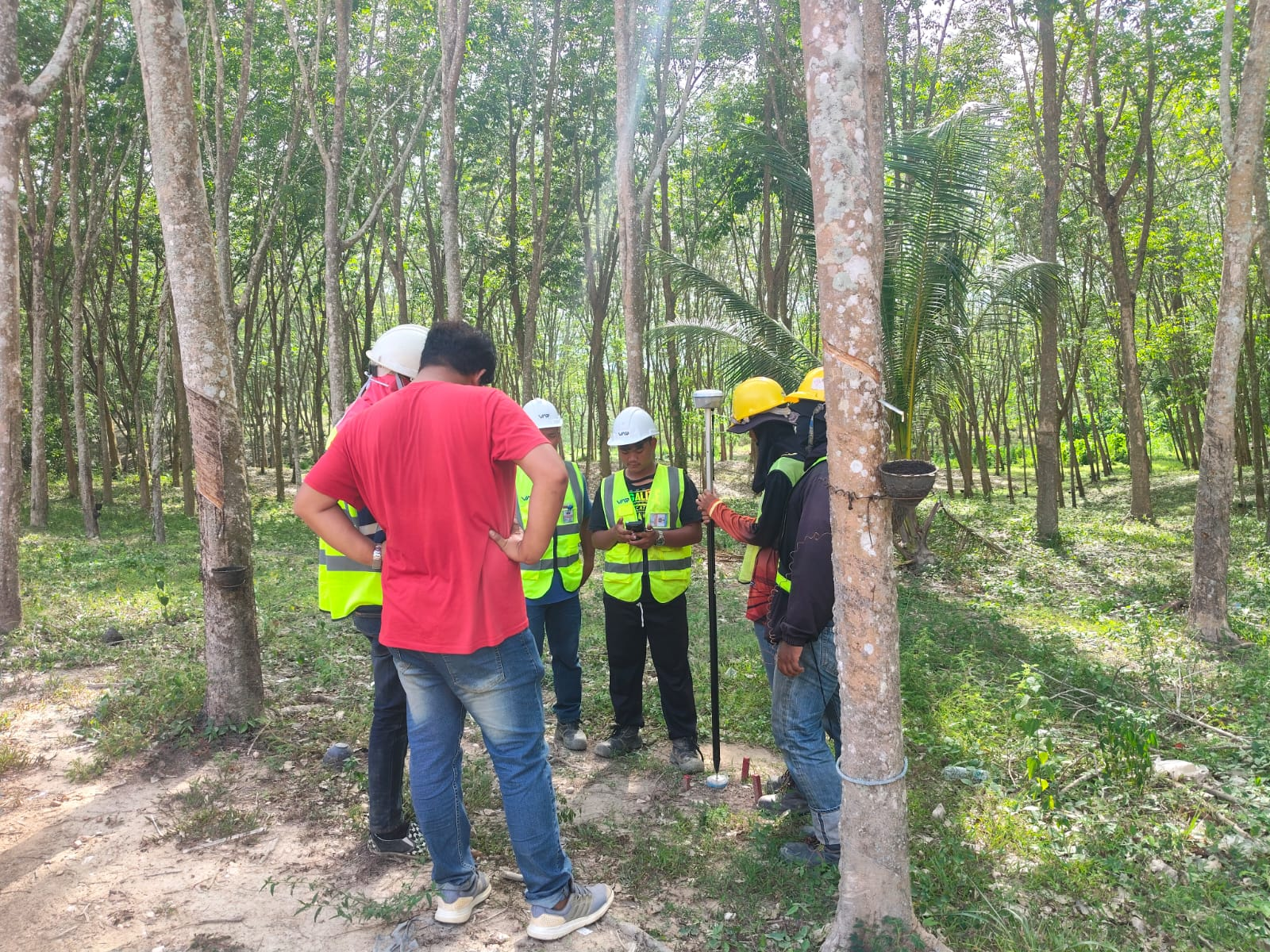

The 1408-Channel Advantage: As shown in the field deployment above, the survey team is operating deep within a typical Thai rubber plantation. The APEKS AP10 is equipped with a new-generation 1408-channel motherboard capable of full-frequency tracking across GPS, GLONASS, Galileo, and BDS. This massive redundant tracking capability allows the receiver's multipath mitigation algorithms to filter out reflected signal noise caused by the wet canopy, forcing a true lock on raw satellite data and maintaining reliable ±8mm Fixed precision where older 600-channel boards fail.
3. Scene B: Restricted Sky View in Deep Trench Earthworks
Civil earthworks often require precise elevation and centerline stakeouts inside deep excavations.

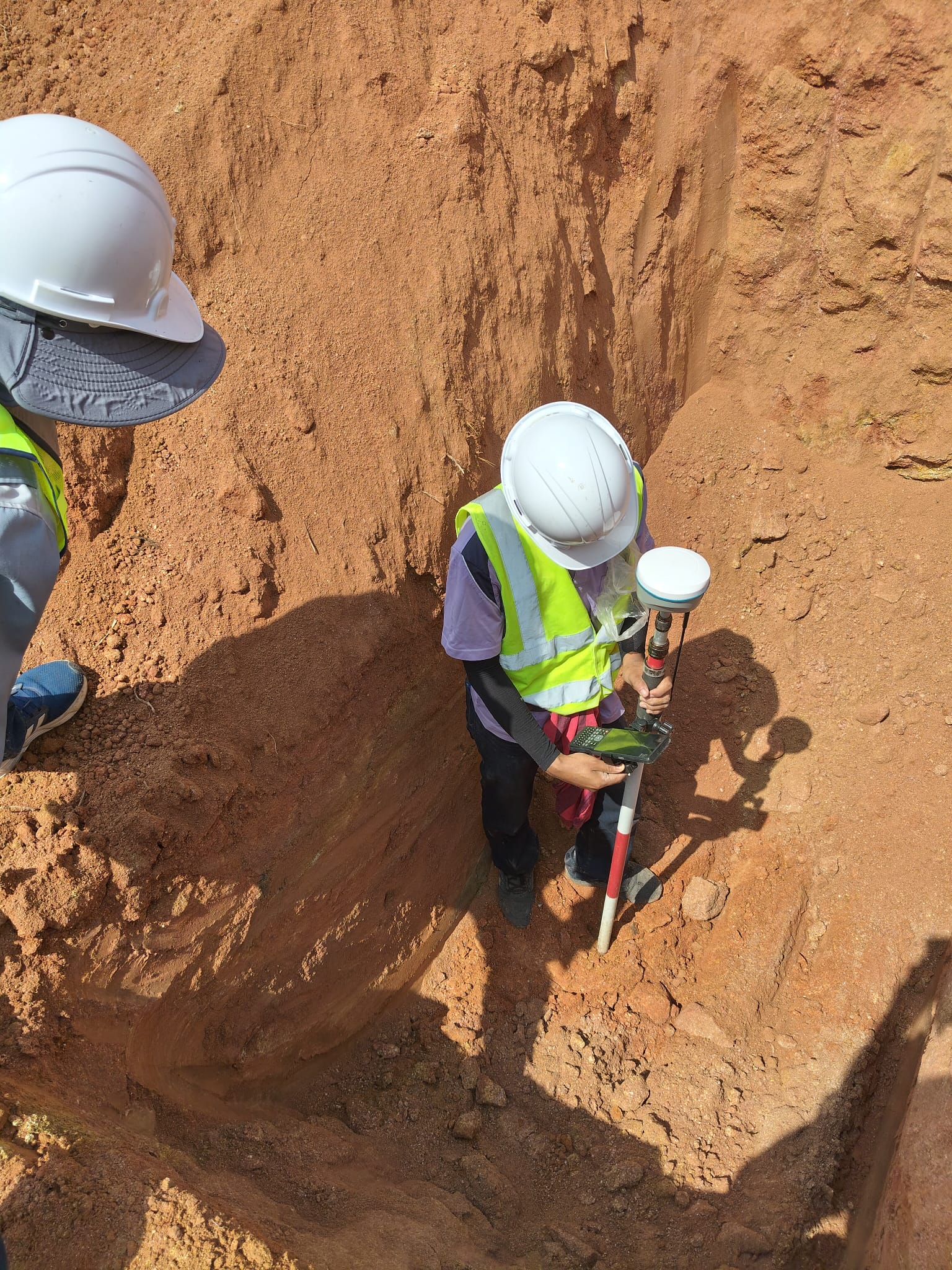

The 120° Cal-Free IMU Advantage: In this deep red-dirt trench, keeping the carbon fiber pole perfectly vertical forces the receiver head below the trench walls, completely cutting off its sky view. The AP10 solves this via its 120° calibration-free IMU. The surveyor places the pole tip exactly on the design point at the bottom of the trench and tilts the pole significantly to extend the receiver head out into the open sky. The IMU automatically compensates for the extreme angle without requiring the operator to level the bubble, capturing the point instantly.
4. Scene C: Base & Rover Setup in Off-Grid Hilly Terrain
Topographic surveys in remote agricultural or undeveloped sectors demand independence from cellular networks.

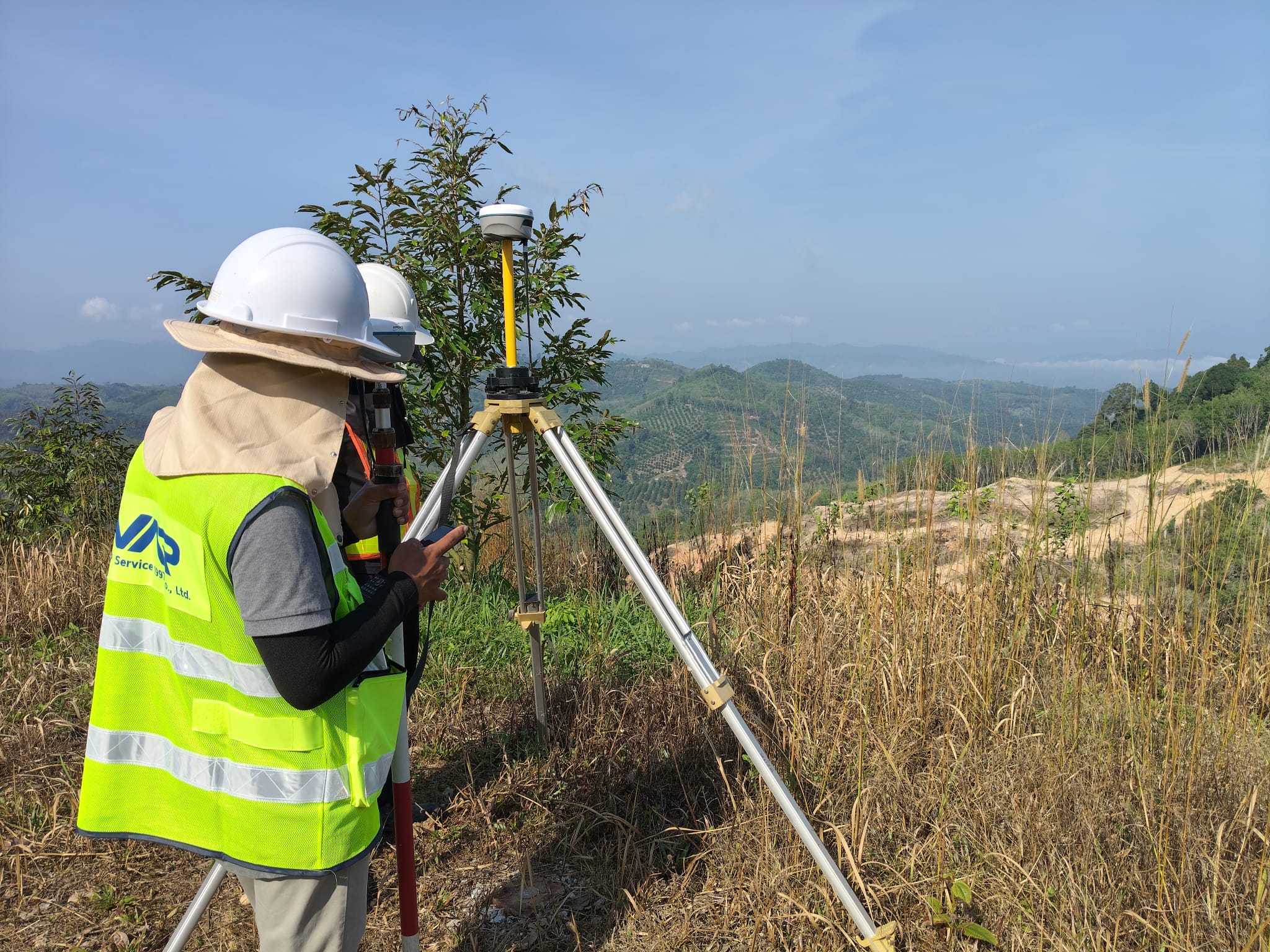

Internal 2W UHF Transceiver: In areas completely devoid of 4G/CORS coverage, the AP10 effortlessly converts into a high-precision local base station. The image demonstrates a base setup positioned on a high vantage point overlooking tropical hills. Utilizing its built-in 2W UHF radio, it broadcasts a stable correction data link over an 8 to 15-kilometer radius. This allows the mobile rover team to work fluidly through the valleys without relying on external internet infrastructure.
5. Why AP10 is the Cost-Effective Choice for SE Asia
Not every earthwork or boundary survey requires the premium expense of AR visual stakeout cameras or 120m laser rangefinders.
For independent contractors and survey agencies operating in Southeast Asia, the APEKS AP10 delivers the exact same underlying positioning accuracy (±8mm) and structural durability (IP67) as top-tier flagship models. It strips away specialized visual hardware to maximize return on investment (ROI), making it the most powerful, purely GNSS-focused productivity tool for daily field operations.
6. Key Specifications
| Feature | Specification |
|---|---|
| Channels | 1408 |
| RTK Accuracy | H: ±8mm + 1ppm / V: ±15mm + 1ppm |
| IMU Tilt Sensor | Up to 120° (Calibration-Free) |
| UHF Radio | Internal 2W Tx/Rx (8-15km range) |
| Network | 4G Cellular / Wi-Fi / Bluetooth / NFC |
| Battery | 7.4V 7000mAh (Up to 18 hours Rover) |
| Ruggedness | IP67 Water/Dustproof, IK08 Shock |
7. Field Results from Thailand
Thailand Deployment Summary (2026):
- Location: Southern Thailand

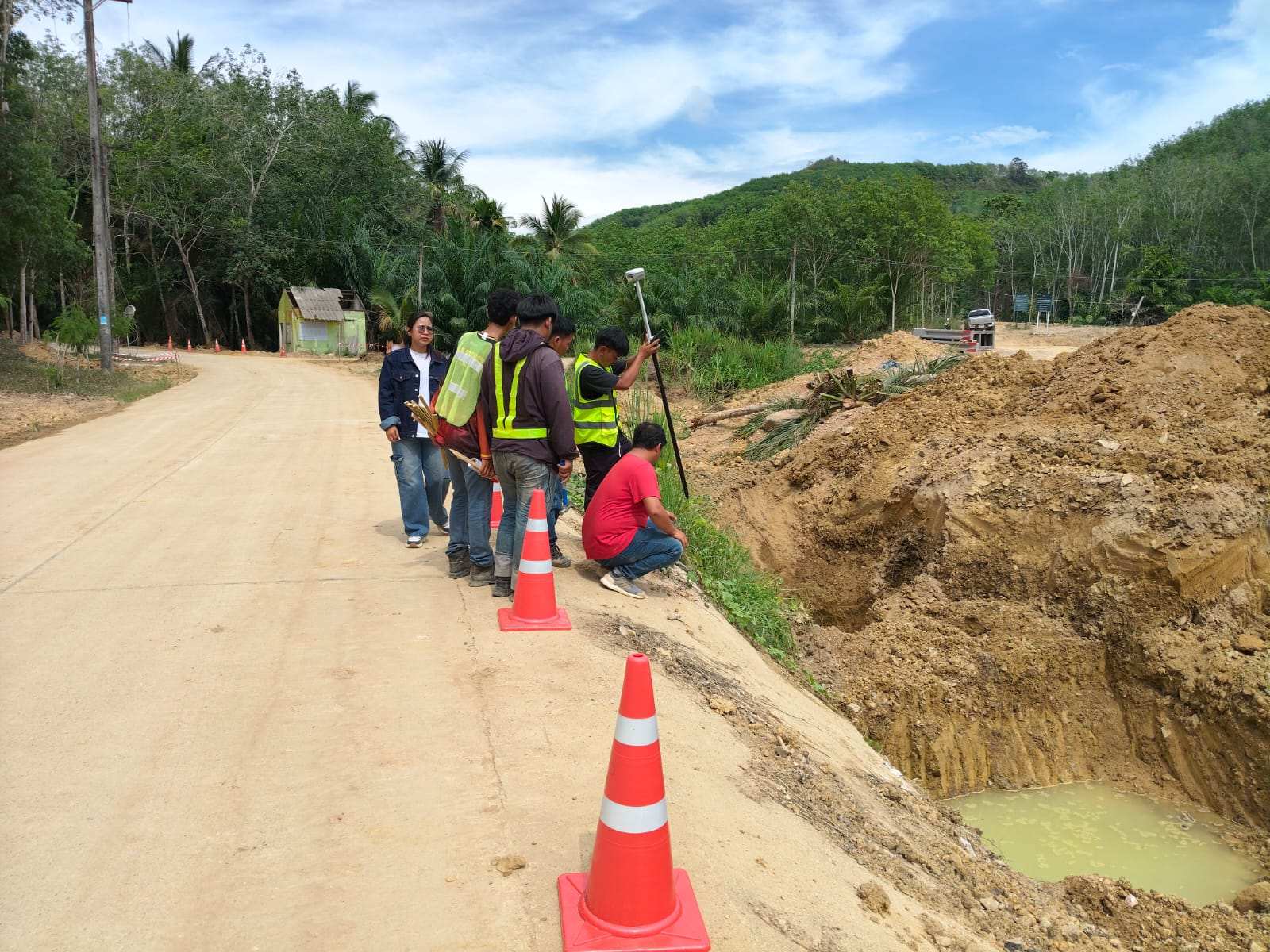

- Application: Rural road earthworks and rubber plantation cadastral survey
- Equipment: APEKS AP10 GNSS Receiver (Base & Rover configuration)
- Field conditions: High-humidity dense forestry, restricted-sky excavations, and off-grid hills
- Outcome: Continuous centimeter-level precision maintained; deep trench points captured securely utilizing extreme IMU tilt angles.
8. Risk Warning: Tropical Heat & Humidity
Southeast Asia is characterized by extreme year-round heat and severe humidity, especially during the monsoon season. Low-quality equipment often suffers from motherboard condensation and thermal throttling under these conditions. The AP10 mitigates these risks via industrial IP67 hermetic sealing and a magnesium-aluminum alloy chassis. This design not only resists sudden torrential downpours but guarantees exceptional heat dissipation, allowing the internal core to operate flawlessly even when internal temperatures reach 75°C, ensuring zero downtime in the field.
9. FAQ
How does the AP10 handle satellite signals under dense trees?
The AP10 utilizes a 1408-channel processing core capable of tracking all major satellite constellations simultaneously. This vast tracking redundancy, combined with advanced multipath-mitigation algorithms, allows it to filter out bounced signal noise and maintain a reliable Fixed RTK status even under heavy tropical canopies like rubber and palm plantations.
Why is a 120° IMU important for deep trench surveying?
In deep trenches, maintaining a perfectly vertical pole restricts the GNSS receiver's sky visibility. The 120° calibration-free IMU enables the operator to place the pole tip on the target point and tilt the carbon fiber rod at extreme angles to push the receiver head into open sky space. It automatically calculates and corrects the offset without needing a leveled bubble.
Can the AP10 work in areas without mobile internet?
Yes. In remote areas without 4G or public CORS networks, the AP10 can operate via an independent Base-and-Rover configuration. The built-in 2W UHF radio broadcasts proprietary correction data over an 8 to 15-kilometer radius, providing complete off-grid reliability.
Is the AP10 completely waterproof for tropical rainy seasons?
The AP10 features IP67 industrial ingress protection, making it highly resistant to dust and capable of withstanding heavy tropical downpours and humid monsoon conditions without risking internal motherboard condensation.
