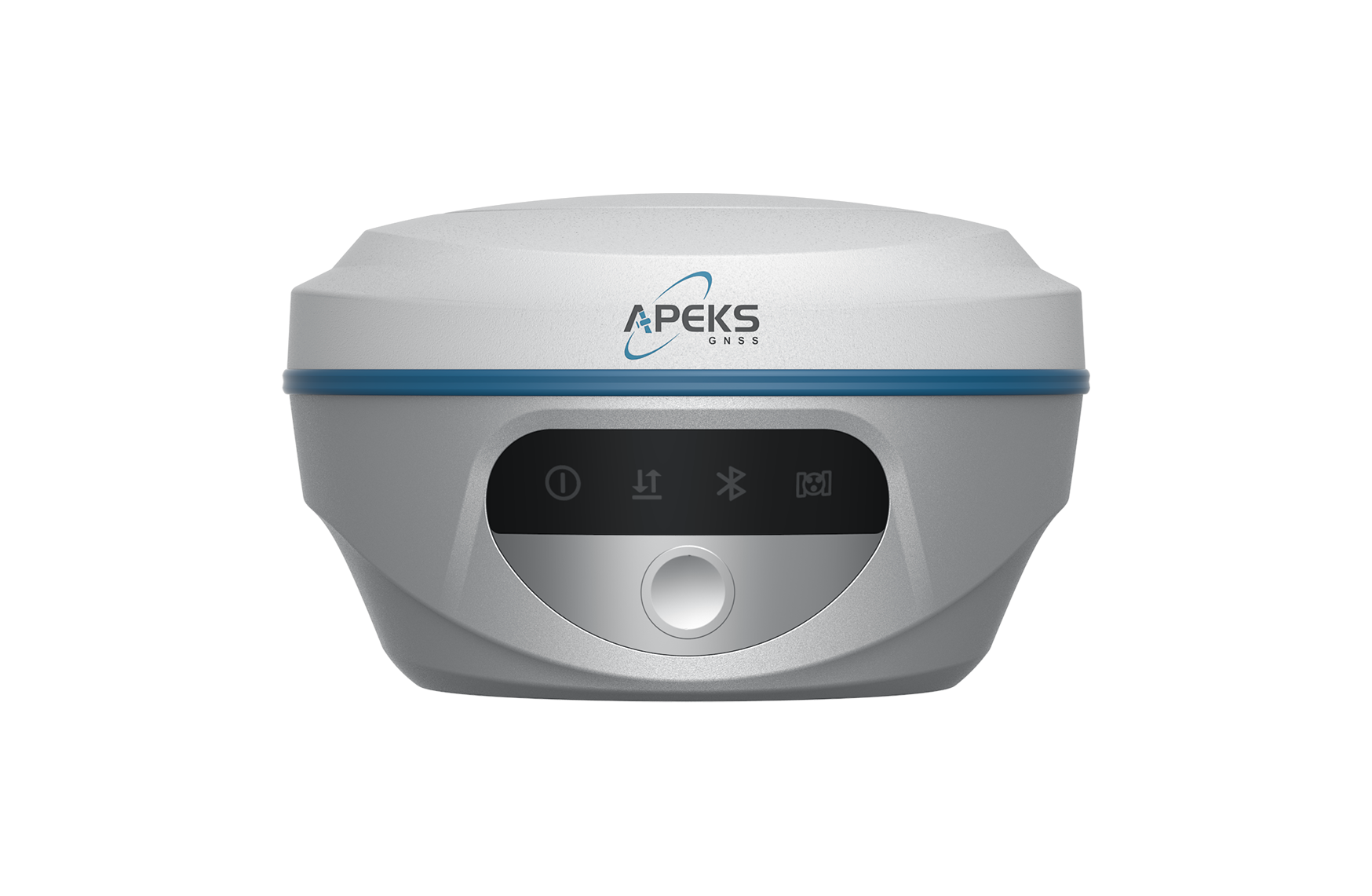

Powerful AP10 GNSS Receiver from China Suppliers | Cost-effective RTK for Surveying & Construction Applications
Satellites Tracking
Channels
1408
GPS
L1C/A, L2C, L2P(Y), L5
GLONASS
L1, L2, L3*
Galileo
E1, E5a, E5b, E6*
BDS
B1I, B2I, B3I, B1C, B2a, B2b*
QZSS
L1C/A, L1C, L2C, L5
NavIC/IRNSS
L5
SBAS
L1, L5*
PPP
B2b-PPP/E6-HAS
Accuracy
Real time kinematics (RTK)
H: 8 mm + 1 ppm RMS
V: 15 mm + 1 ppm RMS
Initialization time: <5s (typical)
Initialization reliability: >99.9%
Post-processing kinematics (PPK)
H: 2.5 mm + 0.5 ppm RMS
V: 5 mm + 0.5 ppm RMS
PPP
H: 10cm RMS | V: 20cm RMS
DGPS
H: 0.4 m RMS | V: 0.8 m RMS
Single Point
H: 1.5 m RMS | V: 2.5 m RMS
Position Frequency
1HZ 2HZ 5HZ 10HZ 20HZ 50HZ
Time to first fix
Cold start: <45s
Hot start: <10s
Signal re-acquisition: <1s
IMU tilt angle
0-120°
IMU tilt survey accuracy
≤2cm within 60° tilt angle
Communication
UHF radio
2W Tx/Rx, 410-470 MHz
Working range is 8-15km in ideal environments
Protocol
TT450, TRIMMARK3, SOUTH, SATEL
Link rate: 9600bps to 19200bps
Wifi
802.11b/g/n/ac
Hotspot / Data Link
Bluetooth
Bluetooth 5.2 classical/BLE proprietary dual-mode
NFC
NFC touch pairing
WebUI
Accessible via Wi-Fi
4G Cellular
Integrated full frequency multi band 4G modem
supports LTE-TDD/LTE-FDD/WCDMA/CDMA2000/UMTS/HSPA+/GSM/GPRS/EDGE
I/O port
1x USB Type-C port (Data download / Charging)
1x Antenna port (UHF antenna interface)
1x Sim card slot (Supports Nano-sim)
Data formats
RTCM 2.X, RTCM 3.X, RINEX, NMEA 0183 output, NTRIP
Data storage
32GB high speed memory
Electrical
Battery
Internal Li-ion Battery 7.4V 7000mAh
Charging specs
USB Type-C fast charging
Operation time
Rover mode: 18 hours
Base mode: 7 hours
Static mode: 20 hours
Hardware
Size
129mm(W) x 77mm(H) (5inch(W) x 3inch(H))
Weight
800g (1.76lb)
Front panel
1x Data Link, 1x Satellite, 1x Bluetooth, 1x Power
Environments
Working temperature
-45°C to +75°C
Storage temperature
-55°C to +85°C
Humidity
100% non-condensation
Waterproof & Dustproof
IP67
Drop
Survive a 2-meter pole-drop
Vibration
IK08
Frequently Asked Questions (FAQ)
1. How many channels does the receiver support, and which constellations can it track?
The receiver features 1408 channels and supports tracking for GPS, GLONASS, Galileo, BDS, QZSS, NavIC/IRNSS, SBAS, and PPP (B2b-PPP/E6-HAS) constellations.
2. What is the RTK positioning accuracy and typical initialization time?
The Real Time Kinematics (RTK) accuracy is Horizontal: 8 mm + 1 ppm RMS and Vertical: 15 mm + 1 ppm RMS. The typical initialization time is less than 5 seconds with a reliability of over 99.9%.
3. Does the receiver support tilt measurements, and how accurate is it?
Yes, it features an IMU supporting a tilt angle of 0-120°. The tilt survey accuracy is ≤2cm within a 60° tilt angle.
4. What are the battery capacity and runtime specifications?
The device is equipped with an internal 7.4V 7000mAh Li-ion battery supporting USB Type-C fast charging. It runs up to 18 hours in Rover mode, 7 hours in Base mode, and 20 hours in Static mode.
5. What is the working range of the integrated UHF radio?
The integrated 2W Tx/Rx UHF radio operates within the 410-470 MHz frequency band and provides a working range of 8-15km under ideal environmental conditions.
6. How durable is the hardware against dust, water, and drops?
The hardware features an IP67 waterproof and dustproof rating, an IK08 vibration resistance rating, and is built to survive a 2-meter pole-drop. It operates in temperatures ranging from -45°C to +75°C.
