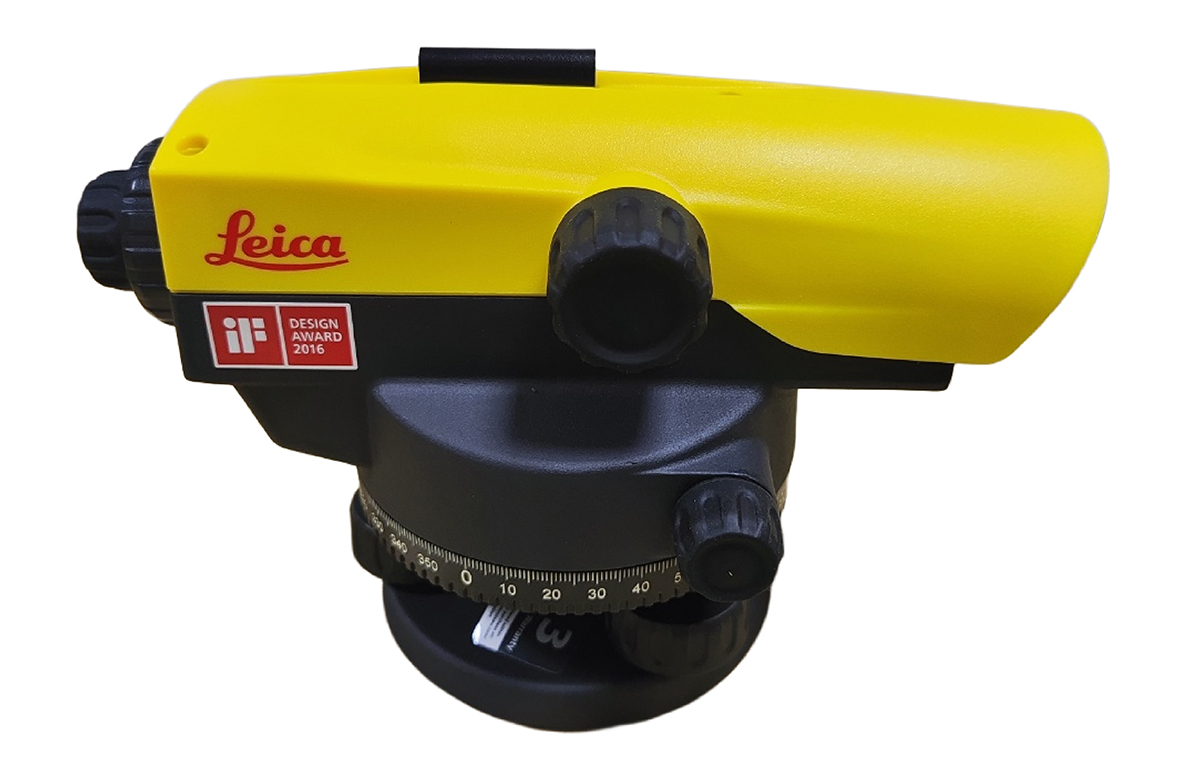

Leica Original Air Damping NA500 Series NA520 NA524 NA532 Auto Level
On your terms, on your site, Leica Geosystems is your trusted partner.
The Leica NA500 Series provides you with reliable levels for accurate measurements and high quality results.
UNIQUE. FOCUSED. PROTECTED.
Leica Geosystems is a pioneer in manufacturing levels and understands the needs of construction workers.
Whatever your need, basic or more, Leica Geosystems levels are your answer.
With a unique design, these levels produce the highest quality results at the best price value.
The unique design of the Leica NA500 Series reflects the high quality of technology featured inside each level.
The NA500 Series is ruggedly made to withstand the harshest elements.
These levels, while highly accurate, provide quick and easy measurements.
Rely on the known expert knowledge of Leica Geosystems with service centers worldwide ready to support you.
Unbeaten warranty and service offering.
Leica Geosystems offers solutions for all your construction needs.
Specification
| Leica NA520 | Leica NA524 | Leica NA532 | |
| Technical Data | |||
| Standard deviation for 1 km double levelling (ISO17123-2) | 2.5mm | 1.9mm | 1.6mm |
| Telescope | |||
| Telescope image |
Upright |
||
| Magnification | 20x | 24x | 32x |
| Objective aperture |
36mm |
||
| Shortest target distance from instr. axis |
<1.0 m |
||
| Field of view at 100 m |
<2.1 m |
||
| Multiplication factor |
100 |
||
| Additive constant |
0 |
||
| Compensator | |||
| Working range |
± 15’ |
||
| Setting accuracy (standard deviation) |
<0.5’’ |
||
| Sensitivity |
8’/2 mm |
||
| Horizontal Circle | |||
| Graduation |
360° |
||
| Graduation interval |
1° |
||
| Weight (net) |
1.5 kg |
||
| Operating temperature range |
–20° C to +50° C |
||
