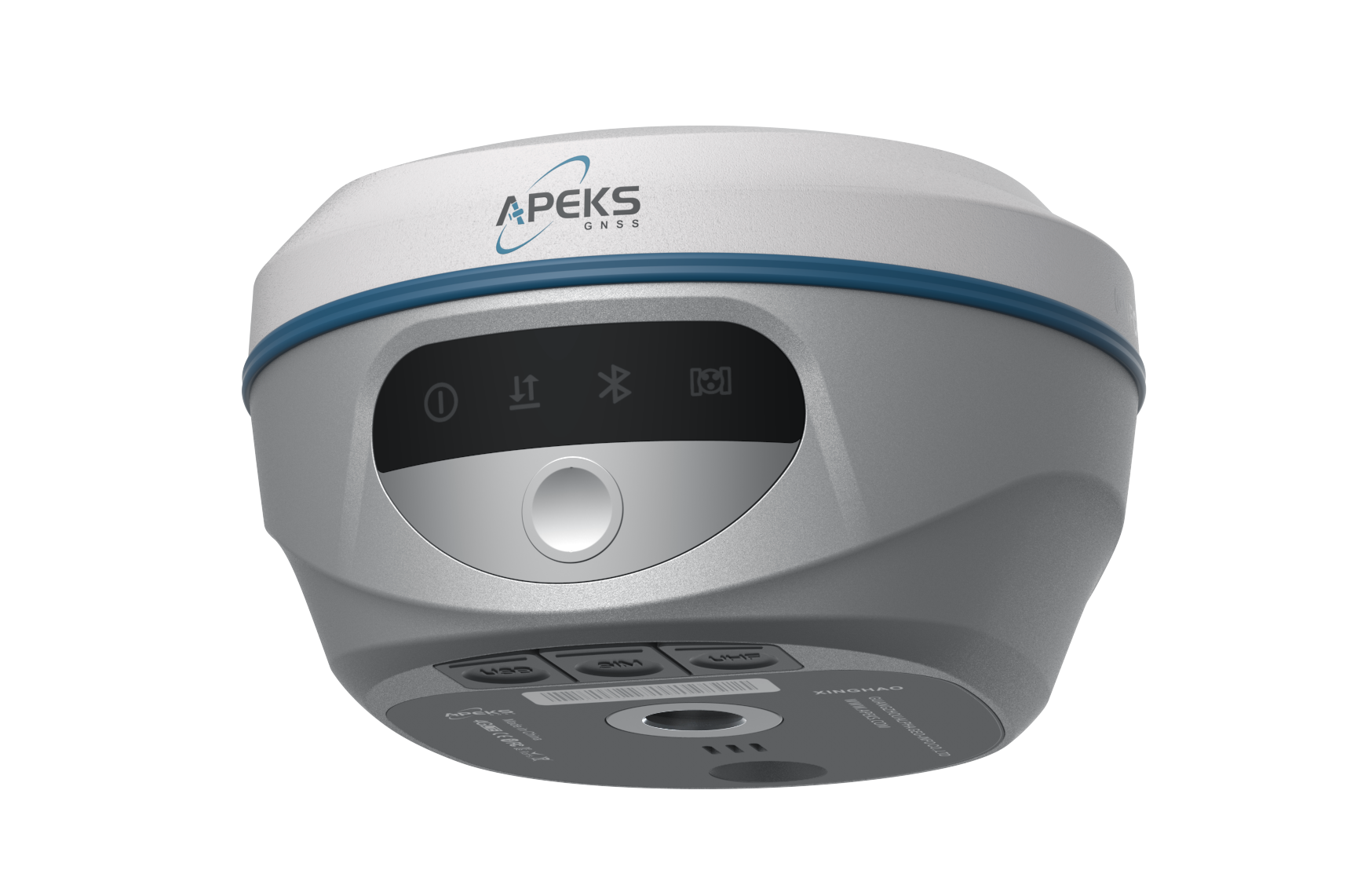

GNSS Receiver 1.png

High-End GNSS Receiver AP30 Laser Dual-Cameras RTK - Advanced Technology from China Suppliers and Factory

The AP30 Laser Dual-camera RTK is a cutting-edge GNSS receiver designed for precision applications. Produced by leading suppliers in China, this high-end device integrates the latest GNSS and super IMU technologies, ensuring millimeter-level accuracy. With its advanced green laser technology, the AP30 is perfect for various industrial applications. As a reliable factory manufacturer, we prioritize high-quality engineering to meet the demands of modern surveying and mapping tasks. Experience unparalleled performance with the AP30 Laser Dual-camera RTK, tailored for professionals seeking the best in GNSS technology
    Contact us
    Product Details

    Satellites Tracking

    Channels
    1408
    GPS
    L1C/A, L2C, L2P(Y), L5
    GLONASS
    L1, L2, L3*
    Galileo
    E1, E5a, E5b, E6*
    BDS
    B11, B21, B3l, B1C, B2a, B2b*
    QZSS
    L1C/A, L1C, L2C, L5
    NavIC/IRNSS
    L5
    SABAS
    L1, L5*
    PPP
    B2B-PPP/E6-HAS

    Accuracy

    Real time kinematics (RTK)
    H: 8 mm + 1 ppm RMS V: 15 mm+ 1 ppm RMS Initialization time: <5s (typical) Initialization reliability: >99.9%
    Post-processing kinematics (PPK)
    H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS
    PPP
    H: 10cm RMS | V: 20cm RMS
    DGPS
    H: 0.4 m RMS | V: 0.8 m RMS
    Single Point
    H: 1.5 m RMS | V: 2.5 m RMS
    AR stakeout
    H: 8 mm + 1 ppm RMS V: 15 mm+ 1 ppm RMS
    Position Frequency
    1HZ 2HZ 5HZ 10HZ 20HZ 50HZ
    Time to first fix
    Cold start <45s Hot start <10s Signal re-acquisition < 1 s
    IMU tilt angle
    0-120°
    IMU tilt survey accuracy
    ≤2cm within 60° tilt angle

    Laser

    Type
    Class3.0 Green
    Range
    10m
    Laser survey
    ±8mm + 5mm/m ( Tilt angle within 30° )

    Camera

    Number of cameras
    2
    Pixel
    Global shutter with 5MP
    Frame rate
    30fps
    Field of view
    84°
    Features
    5MP bottom camera achieve AR stakeout 5MP front camera auxiliary laser measurement and aiming

    Communication

    UHF radio
    2W Tx/Rx, 410-470 MHz Working range is 8-15km in ideal environments
    Protocal
    TT450, TRIMMARK3, SOUTH, SATEL Link rate: 9600bps to 19200bps
    Wifi
    802.11b/g/n/ac Hotspot/Data Link
    Bluetooth
    Bluetooth 5.2 classical/BLE proprietary dual-mode
    NFC
    NFC touch pairing
    WebUI
    Accessible via Wi-Fi
    4G Cellular
    Integrated full frequency multi band 4G modem supports LTE-TDD/LTEFDD/WCDMA/CDMA2000/UMTS/HSPA+/GSM/GPRS/EDGE
    I/O port
    1xUSB Type-C port (Data download / Charging) 1xAntenna port(UHF antenna interface) 1xSim card slot (Supports Nano-sim)
    Data formats
    RTCM 2.X, RTCM 3.X, RINEX, NMEA 0183 output, NTRIP
    Data storage
    32GB high speed memory

    Electrical

    Battery
    Internal Li-on Battery 7.4V 7000mAh
    Charging specs
    USB Type-C fast charging
    Operation time
    Rover mode: 18 hours Base mode: 7 hours Static mode: 20 hours

    Hardware

    Size
    129mm(W) 77mm (H) 5inch(W) 3inch(H)
    Weight
    800g(1.76Ib)
    Front panel
    1x Data Link, 1x Satellite, 1x Bluetooth, 1xPower

    Environments

    Working temperature
    -45°C to +75°C
    Storage temperature
    -55°C to +85°C
    Humidity
    100% non-condensation
    Waterproof & Dustproof
    IP67
    Drop
    Survive a 2-meter pole-drop
    Vibration
    IK08

    Frequently Asked Questions (FAQ)

    How many channels does this GNSS receiver support for satellite tracking?

    This receiver features 1408 channels and supports tracking a wide range of satellite constellations including GPS, GLONASS, Galileo, BDS, QZSS, NavIC/IRNSS, SBAS, and PPP signals.

    What is the accuracy of the RTK and PPK measurements?

    Real-Time Kinematics (RTK) accuracy is H: 8 mm + 1 ppm RMS and V: 15 mm + 1 ppm RMS. Post-Processing Kinematics (PPK) accuracy reaches H: 2.5 mm + 0.5 ppm RMS and V: 5 mm + 0.5 ppm RMS.

    How do the dual cameras assist in surveying?

    The receiver is equipped with two 5MP global shutter cameras running at 30fps with an 84° field of view. The bottom camera enables precise AR stakeout, while the front camera assists with auxiliary laser measurement and aiming.

    What is the range and accuracy of the integrated laser?

    The receiver uses a Class 3.0 Green laser with a working range of up to 10 meters. The laser survey accuracy is ±8mm + 5mm/m when the tilt angle is within 30°.

    What is the battery life and charging capability?

    It features an internal 7.4V 7000mAh Li-ion battery supporting USB Type-C fast charging. It provides up to 18 hours of operation in Rover mode, 7 hours in Base mode, and up to 20 hours in Static mode.

    How durable is the device under harsh environmental conditions?

    The hardware is built to survive a 2-meter pole-drop, features an IP67 waterproof and dustproof rating, has IK08 vibration resistance, and operates in extreme temperatures ranging from -45°C to +75°C.
