RTK GNSS for Solar Power Plant Survey: 2026 Field Guide
Solar power plant construction requires precise boundary survey, cable corridor routing, and PV array layout verification across large, often remote desert or open-land sites. RTK GNSS handles this efficiently where traditional total station methods would be too slow for the scale involved. This approach has been field-verified across projects on two continents — from full lifecycle deployment in 45°C+ desert heat in Oman to site survey work at Los Venados Solar Park in Colombia — utilizing high-power MAX5 base stations paired with AP40 Laser+ and AP20 AR rovers.
1. Why Solar Projects Need Efficient Large-Area Survey
Solar power plant construction typically spans vast open-land or desert sites covering tens to hundreds of hectares. Managing spatial positioning across areas of this scale demands a fast, continuous surveying workflow.
Core surveying requirements include verifying land concession boundaries, planning trenching routes for underground cabling corridors, laying out thousands of individual photovoltaic (PV) tracker pile positions, and marking internal access roads.
Traditional optical total station methods are unsuited for repetitive, large-area stakeout due to line-of-sight constraints and slow setup times. Single-operator RTK GNSS provides the positioning speed and efficiency needed to keep civil installation teams on schedule.
2. Field Cases: Two Continents, One Solution
2a. Oman: Desert Solar Plant, Full Lifecycle

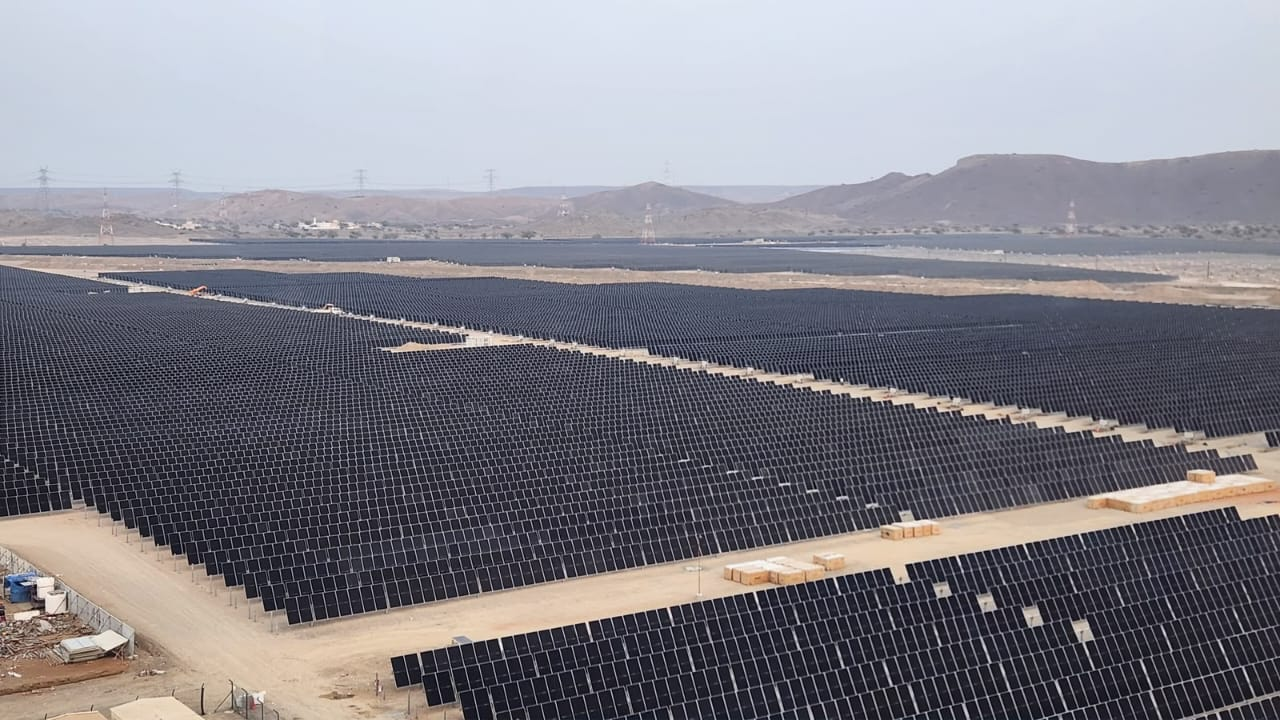

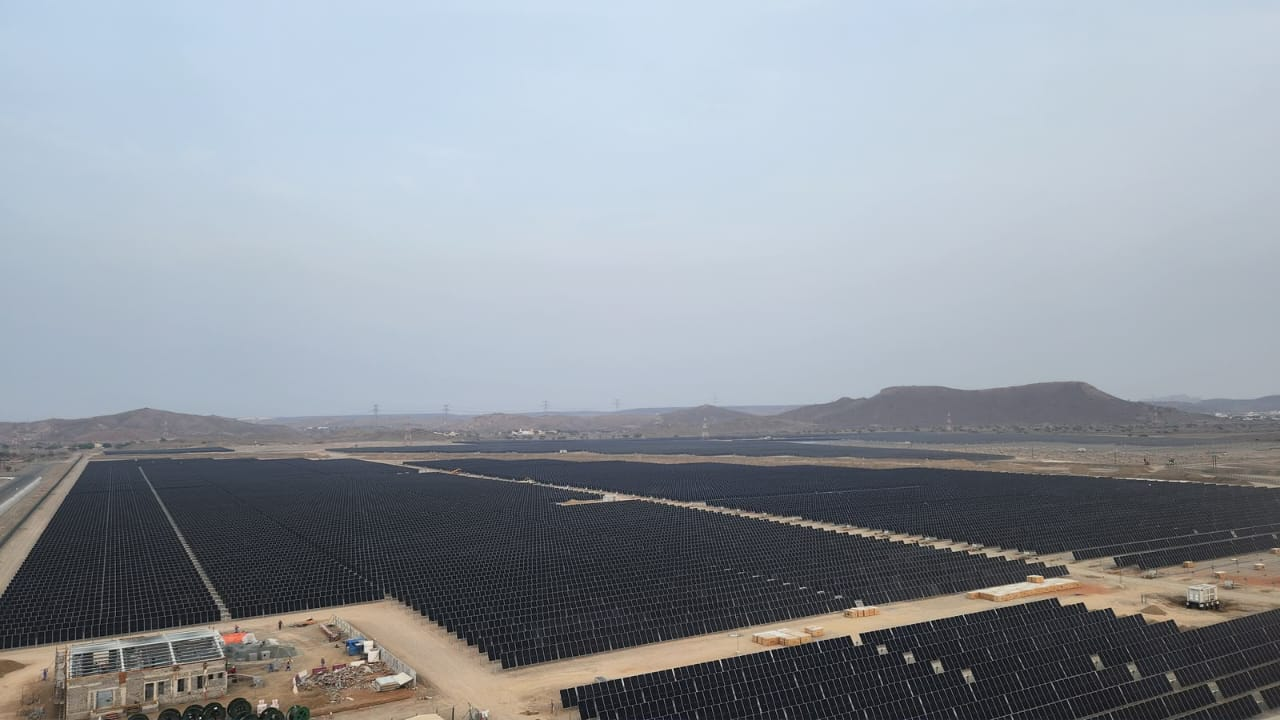

This solar power plant project in Oman has been completed entirely using APEKS equipment — from initial boundary survey and cable corridor layout through to final PV array installation verification. The MAX5 + AP40 Laser+ configuration used throughout the desert survey phase supported every stage of the project without requiring a change of equipment or vendor. Field conditions included sustained desert heat exceeding 45°C, where a survey umbrella was used to maintain all-day operational continuity.
👉 Read the complete project case study: APEKS GNSS Oman Solar Survey Case Study
2b. Colombia: Los Venados Solar Park

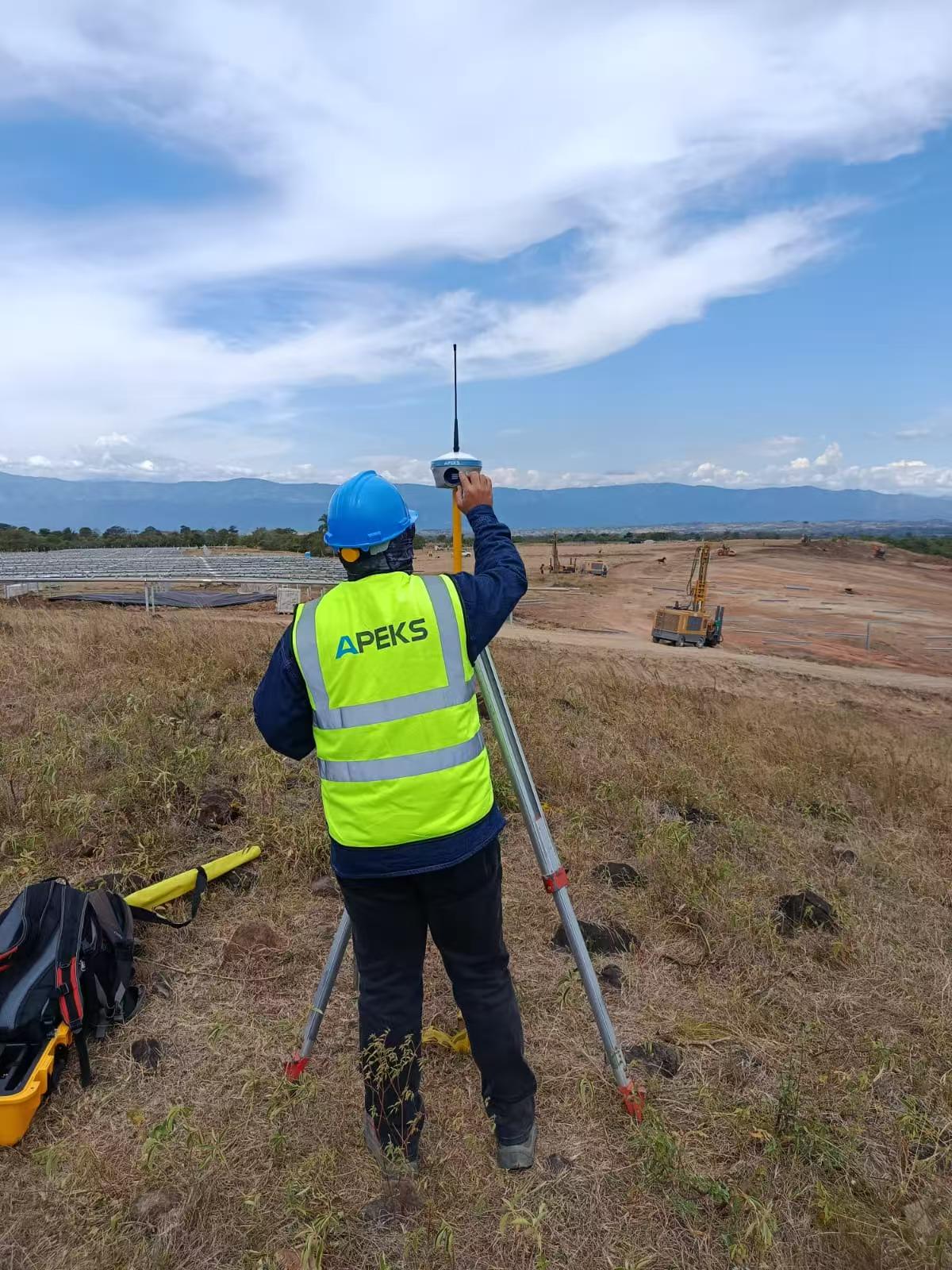

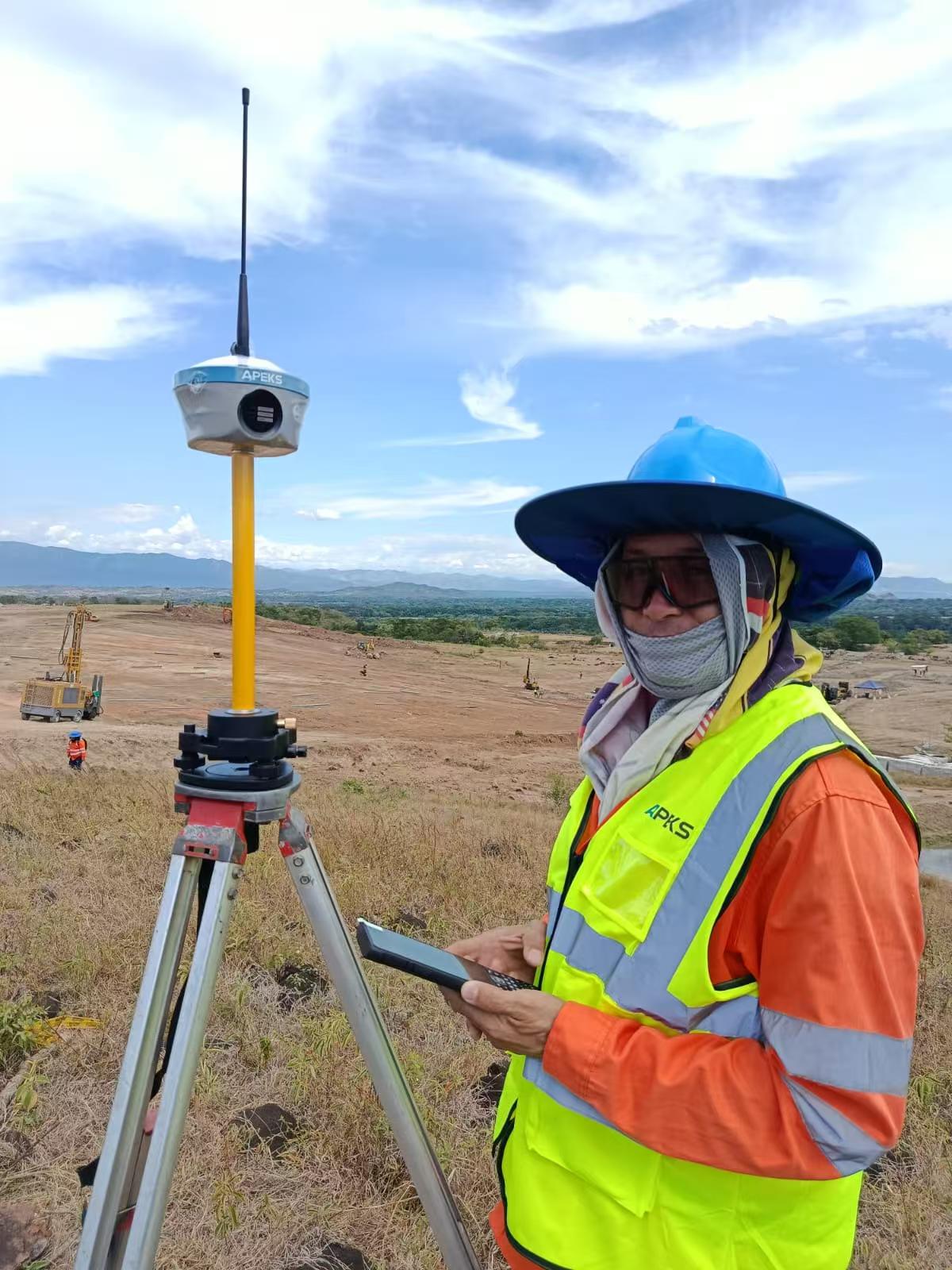

At the Los Venados Solar Park in Colombia, field teams deployed a MAX5 base station paired with an AP20 AR rover for site survey work. This configuration — a high-power 5W LoRa base station combined with a standard AR-enabled rover — reflects a different equipment tier than the Oman deployment, suited to solar projects where AR stakeout efficiency matters more than long-range laser measurement. Together, the Oman and Colombia deployments demonstrate APEKS equipment supporting solar infrastructure survey across two continents and two distinct project configurations.
3. Core Survey Tasks on a Solar Project
Executing a utility-scale solar project involves several distinct surveying milestones throughout construction:
- Concession Boundary Verification: Confirming precise property corners and land use limits prior to fence installation or grading.
- Cable Corridor Routing: Marking alignments and depth targets for underground DC string cables and main AC feeder lines.
- PV Array Pile Stakeout: Setting out precise pile anchor locations for thousands of solar tracker support structures according to engineering drawings.
- Access Road & Perimeter Fencing Survey: Staking internal maintenance roads, inverter skid pads, and security perimeter lines.
- As-Built Acceptance Survey: Verifying installed PV array alignment, table tilt accuracy, and electrical infrastructure positions against design models for final handover.
4. Desert and Tropical Field Conditions
Symptom: Solar construction sites in desert and tropical regions subject surveying crews and instruments to continuous ambient temperatures above 45°C or high humidity, causing extreme thermal stress and risk of thermal shutdowns.
Cause: Solar farms are deliberately built in open, unshaded terrain without natural cover, exposing receivers and field controllers to unmitigated solar radiation and harsh environmental elements all day.
Fix: Deploy receivers built with rugged IP67 dust-and-waterproof casings rated for high operating temperatures (+75°C); pair base station setups with a portable survey umbrella to shade sensitive electronics and allow survey crews to maintain unbroken all-day productivity.
5. From Survey to Completion: The Full Project Lifecycle
Verify site boundaries and capture baseline digital terrain models (DTM) to inform earthwork grading, drainage design, and table orientation.
Stake out primary AC/DC cable trenches, internal access roads, and foundation pads for central inverters and transformer sub-stations.
Stake out tracker pile positions row by row using high-throughput RTK workflows, leveraging wide-angle IMU tilt compensation to eliminate pole-leveling time on rough ground.
Measure installed PV table positions and cable trench positions to generate final as-built documentation and confirm compliance with engineering tolerances.
6. Recommended Equipment
| Receiver Model | Core Feature Highlight | Solar Project Application |
|---|---|---|
| AP40 Laser+ | 120m green laser + 120° IMU | Array pile stakeout and steep/irregular terrain boundary verification. |
| MAX5 | 5W LoRa base station with 25km range | Central base station broadcasting stable corrections across the entire solar farm footprint. |
| AP20 AR | 120° IMU + AR visual stakeout | Standard PV pile stakeout, road layout, and rapid point marking. |
| APS1 | UM980 board with PPP/HAS support | Initial site reconnaissance, GIS mapping, and perimeter survey (~$450 entry cost). |
7. FAQ
What survey tasks are required for solar power plant construction?
Solar power plant construction requires boundary verification, topographic mapping for earthworks, underground cable corridor layout, row-by-row tracker pile foundation stakeout, internal road layout, and final as-built verification for handover.
How does RTK GNSS handle large-scale PV array layout efficiently?
RTK GNSS provides instant centimetre-level positioning without requiring clear optical line-of-sight between points. Combined with calibration-free IMU tilt compensation, operators can stake out hundreds of pile positions per day on foot without stopping to level the range pole.
Can GNSS equipment operate reliably in extreme desert heat?
Yes. Industrial-grade GNSS receivers with IP67 ingress protection and operating ratings up to +75°C are engineered for hot, dusty desert environments. Using a survey umbrella over stationary base stations prevents thermal buildup from direct solar radiation during extended field sessions.
Has APEKS equipment been used to complete a full solar project?
Yes. APEKS RTK GNSS equipment — specifically the MAX5 base station and AP40 Laser+ rovers — was used to complete 100% of the surveying tasks on a major solar power plant project in Oman, from initial ground survey through to final PV array installation verification.
