GNSS RTK Surveying in Mongolia: Remote Off-Grid & UHF Radio Guide
GNSS RTK surveying in Mongolia's remote terrain requires complete independence from cellular infrastructure due to the total absence of a national public CORS network. Field crews must utilize a localized Base and Rover configuration. High-power internal UHF radios (2W to 5W LoRa) are essential to maintain stable correction data links across expansive open grasslands and deep mining concessions. Selecting a 1408-channel receiver pre-loaded with the local MSK-42 or modern MONREF97/ITRF coordinate parameters allows surveyors to maintain centimeter-level precision under harsh, high-latitude conditions without internet reliance.
- 1. The Mission: Surveying the Open Steppe and Remote Mining Concessions
- 2. Coordinate Systems & Geodetic Datums in Mongolia
- 3. Overcoming the CORS Deficit: Long-Range UHF Solutions
- 4. Technical Performance: Thermal Resilience and Signal Redundancy
- 5. Key Field Applications & Best Practices
- 6. Key Hardware Specifications for Off-Grid Environments
- 7. FAQ
Mongolia represents one of the world's most geographically demanding environments for precision geodetic measurement. Its vast, sparsely populated territory features massive mining operations, expansive linear infrastructure corridors, and nomadic agricultural lands that require absolute coordinate accuracy. However, the lack of widespread cellular networks and public NTRIP infrastructure presents unique operational challenges. Successful deployment requires a shift away from network rover assumptions toward robust, self-sustained hardware configurations that can endure the climatic and logistical realities of the high-latitude East Asian steppe.
1. The Mission: Surveying the Open Steppe and Remote Mining Concessions
Surveying crews operating across Mongolia must adapt to specific regional hurdles that test both equipment endurance and workflow planning:
- Vast Spatial Scale: Project areas for mining boundary demarcation, infrastructure layout, and state land allocation frequently span hundreds of square kilometers of uninterrupted terrain.
- Zero Cellular Connectivity: Outside major urban areas like Ulaanbaatar, Erdenet, and Darkhan, mobile network coverage is virtually non-existent, rendering standard GPRS/4G network rovers entirely obsolete.
- Climatic Extremes: Equipment must operate flawlessly across severe temperature fluctuations, requiring premium thermal regulation and robust dust shielding against severe windstorms.
2. Coordinate Systems & Geodetic Datums in Mongolia
Navigating coordinate systems accurately is vital for regulatory legal compliance within Mongolia's land management frameworks:
Geodetic Frames: Historically, Mongolia utilized the legacy MSK-42 (System 42) coordinate system referenced to the Krasovsky 1940 ellipsoid and Gauss-Kruger projection. Modern national mapping programs led by the Agency for Land Administration and Management, Geodesy and Cartography (ALAMGC) have transitioned to the unified MONREF97 datum, which is aligned with the global International Terrestrial Reference Frame and GRS80 ellipsoid.
UTM Grid Projections: Due to its extensive east-west expanse, Mongolia spans multiple Universal Transverse Mercator (UTM) zones—specifically from UTM Zone 46N to UTM Zone 50N. Selecting the precise localized zone inside your field data collection software is critical to prevent coordinate distortion over long baselines.
3. Overcoming the CORS Deficit: Long-Range UHF Solutions

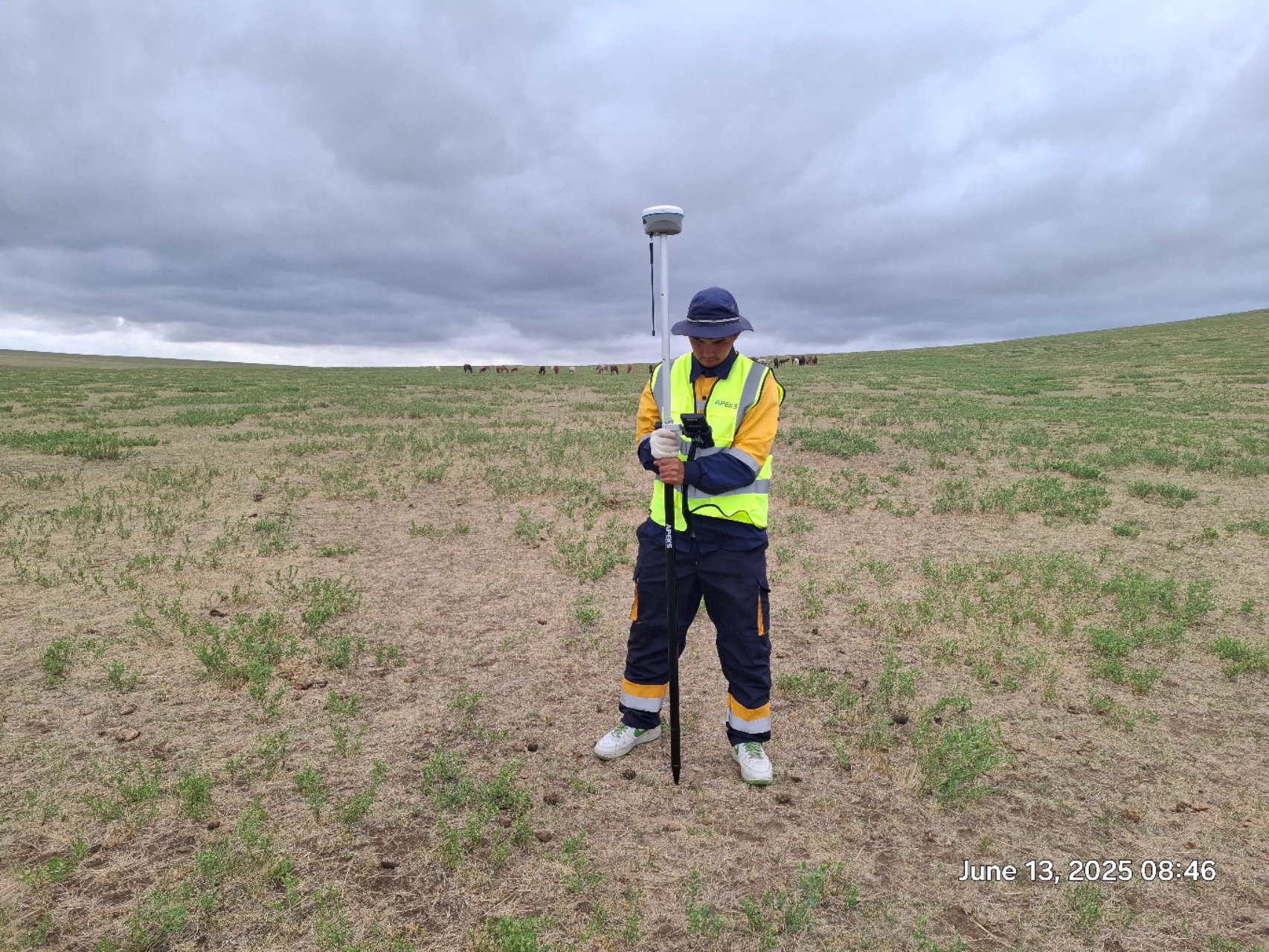

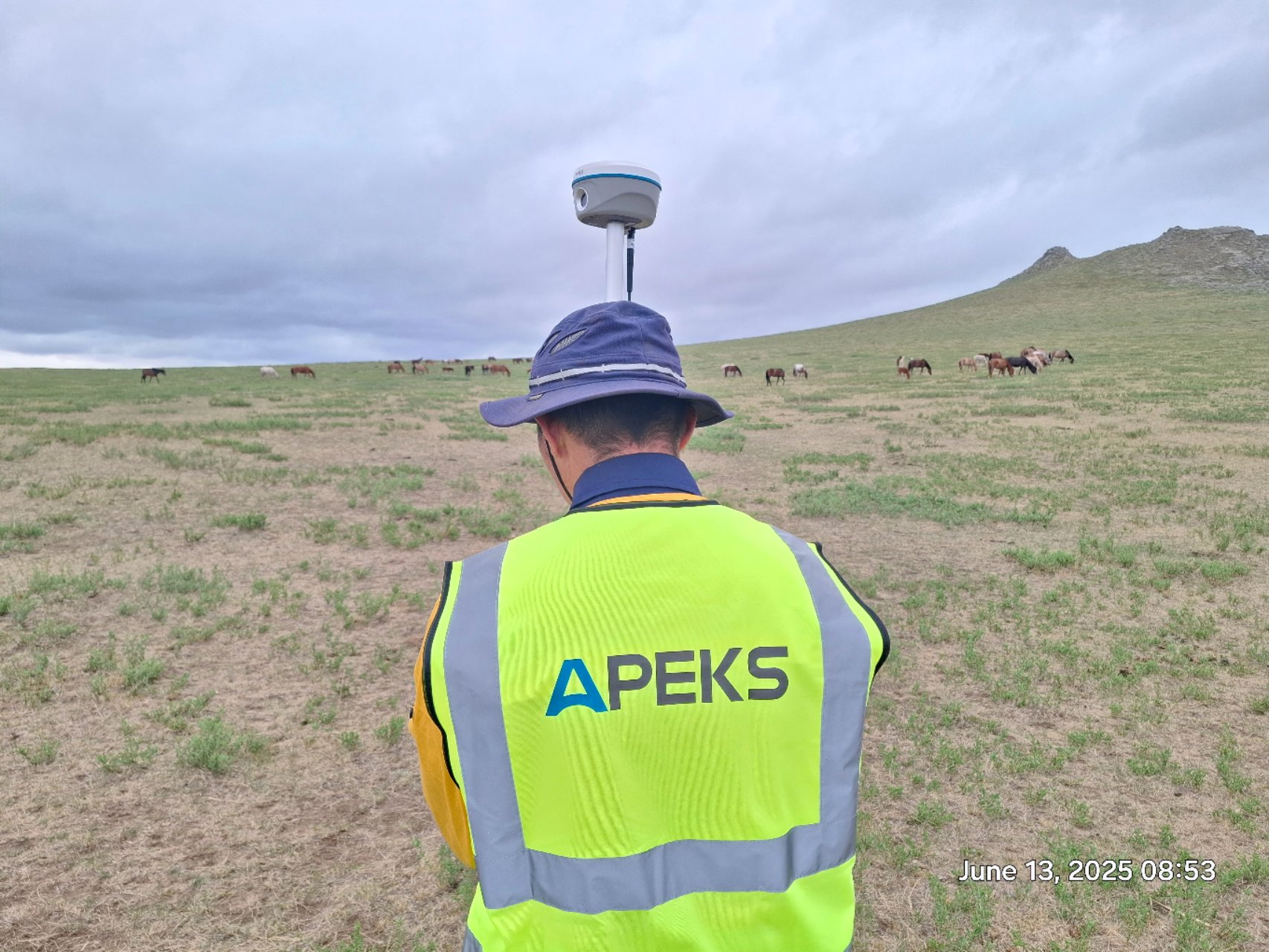

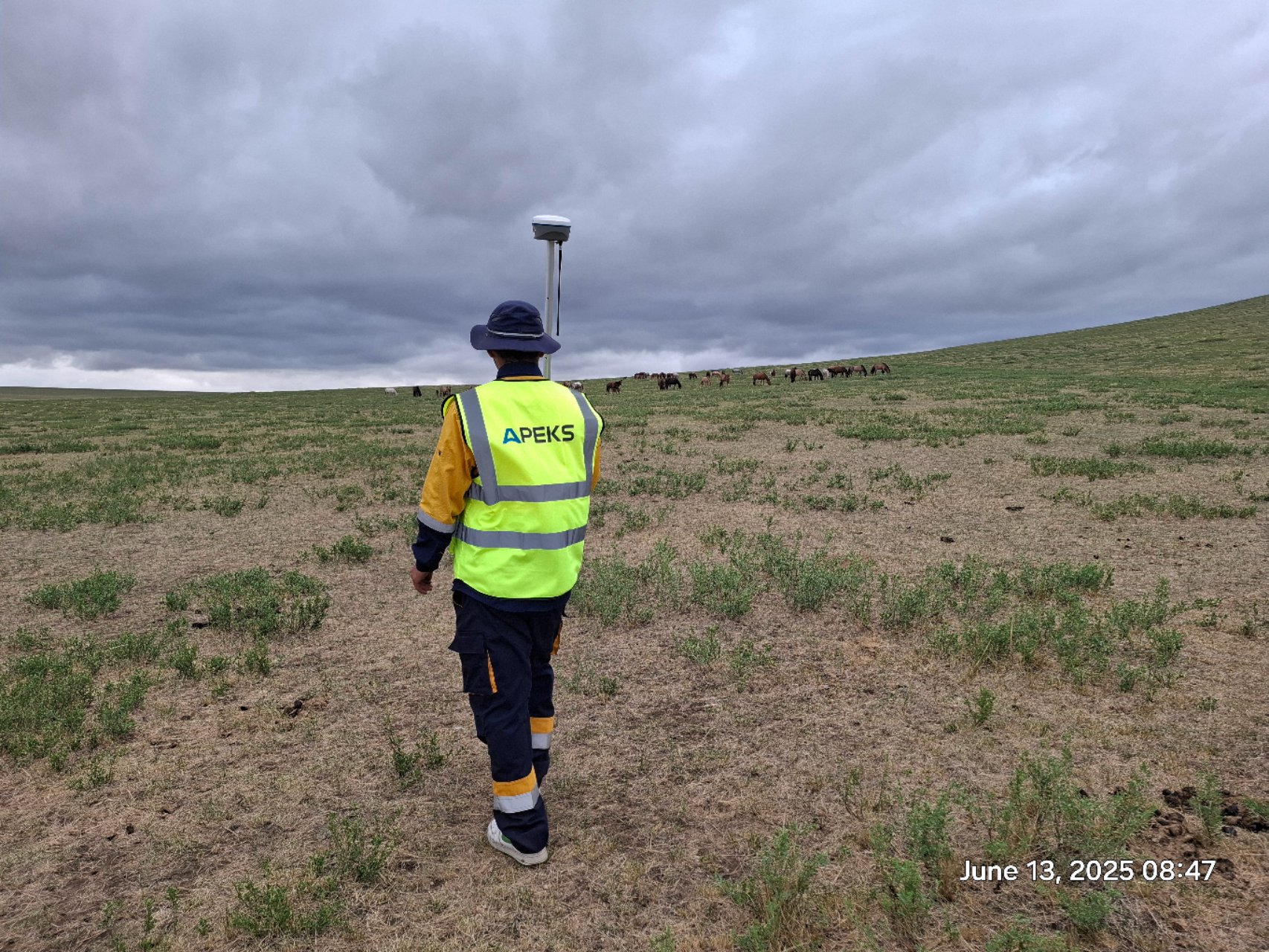

Because Mongolia completely lacks a unified, nationwide public CORS network, setting up a localized Base and Rover system is mandatory for real-time kinematic centimeter accuracy. The field crew shown above leverages this approach to secure precise data links across wide, open pastures.
UHF Radio Optimization: To maximize the operational footprint on the steppe, the Base receiver must be paired with an efficient internal or external UHF radio data link. APEKS receivers feature internal 2W radios capable of broadcasting stable RTK corrections over an 8 to 15-kilometer range in open terrain. For massive mining blocks or linear road developments, deploying a heavy-duty base unit equipped with an internal 5W LoRa radio expands this baseline up to 25 kilometers, guaranteeing continuous coverage without mid-day base repositioning.
4. Technical Performance: Thermal Resilience and Signal Redundancy
In high-latitude, high-altitude regions, signal tracking stability can be compromised by atmospheric scintillation. Resolving this requires maximizing satellite visibility through multi-constellation aggregation.
Advanced Satellites Acquisition: Modern field deployments utilize an advanced 1408-channel GNSS core architecture. This allows the rover to simultaneously track signals from all active global constellations—including GPS, GLONASS, Galileo, and BeiDou. Even during overcast weather conditions or at high northern latitudes, full-constellation tracking guarantees a consistent, reliable "Fixed" solution with sub-centimeter horizontal accuracy.
5. Key Field Applications & Best Practices
The practical application of precision GNSS in Mongolia spans several major industrial and public sectors, each demanding distinct hardware capabilities:
- Mineral Exploration & Mining Concessions: Locating and marking the exact boundaries of mining leases in remote desert or steppe zones requires high-accuracy equipment that functions completely independent of communication networks.
- Nomadic Cadastral Mapping: Modern land tenure programs require mapping massive tracts of pastureland. The integration of 120° Calibration-Free IMU tilt sensors allows field operators to capture points instantly without stopping to level the pole, accelerating large-scale boundary surveys.

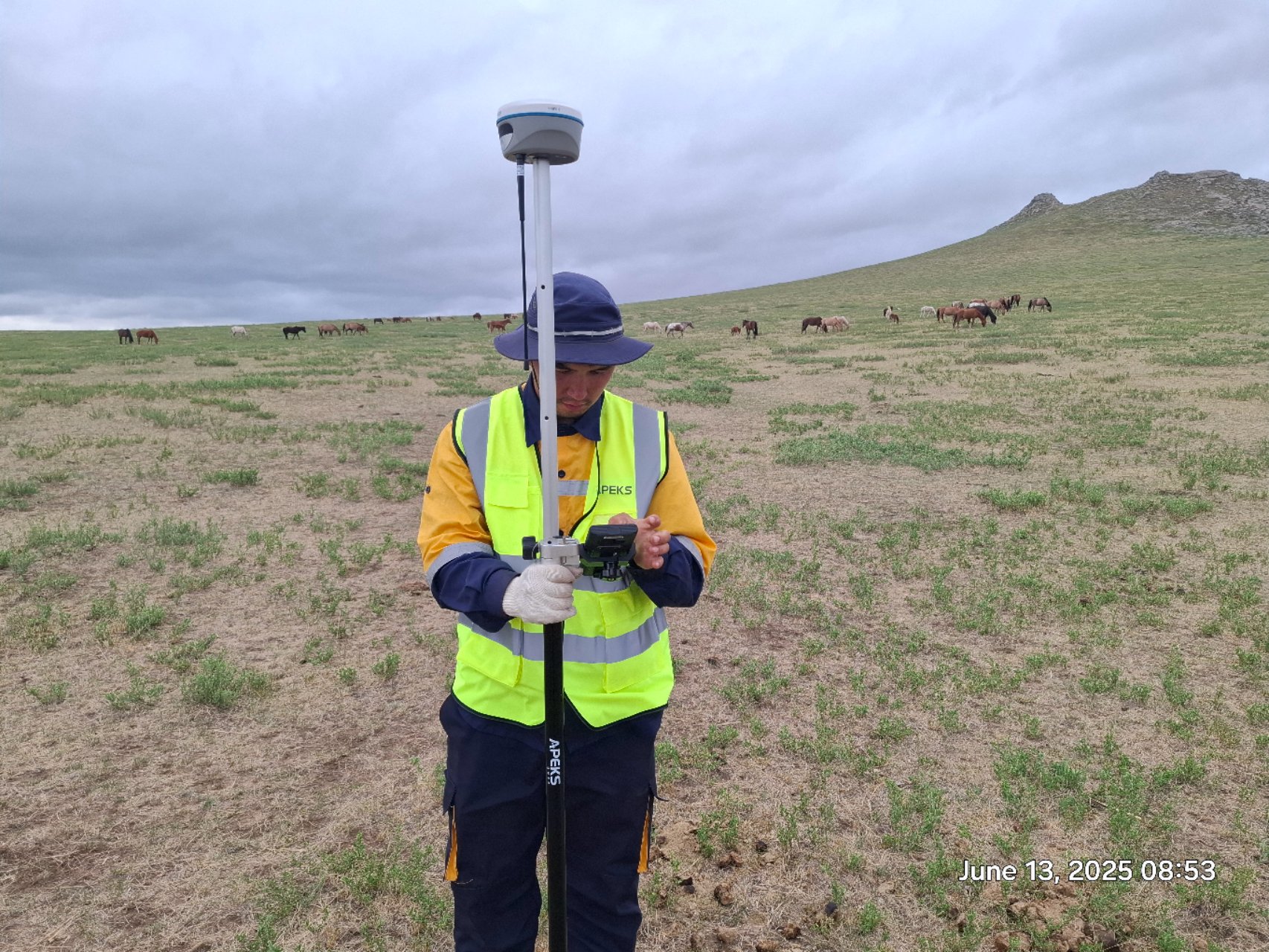

- Linear Infrastructure Layout: Developing long-distance rail links and highways connecting remote mines to industrial hubs relies on robust data collectors running professional software like ApekSurv, which flawlessly handles localized coordinate transformation grids and heavy CAD files in the field.
6. Key Hardware Specifications for Off-Grid Environments
| Hardware Feature | Field Requirement for Mongolia | APEKS Performance Standard |
|---|---|---|
| Channel Count | High northern latitude tracking redundancy | 1408 Channels (Full Constellation) |
| Internal Radio | Long baseline without network CORS access | 2W UHF / 5W LoRa (Up to 25km Range) |
| Battery System | Extended operation in isolated remote camps | Up to 13200mAh (Over 18 Hours Continuous Base) |
| Enclosure Rating | Resistance to dust storms and rain exposure | IP67 Water & Dust Ingress Protection |
| Tilt Compensation | Rapid coordinate acquisition on irregular terrain | 120° Calibration-Free IMU Tilt System |
7. FAQ
Can APEKS receivers work without any CORS or cellular networks?
Yes. APEKS receivers are engineered for full off-grid operational autonomy. By setting up one unit as a local Base station and utilizing the built-in high-power UHF or LoRa radio data link, you can transmit real-time centimeter corrections to your Rover across vast distances without needing any internet connection or SIM card.
How does extreme cold or heat affect the battery life in remote areas?
APEKS hardware utilizes advanced low-power processing boards alongside premium, thermally insulated lithium-ion cells. Heavy-duty models feature capacities up to 13,200 mAh, ensuring full-day field productivity even under intense high-latitude climatic conditions.
Are Mongolian coordinate systems pre-loaded in the field software?
Yes, the professional ApekSurv field software includes a comprehensive international geodetic library. Surveyors can easily select modern global datums or input localized seven-parameter transformation grids for historic national coordinate systems directly on the controller.
Is the equipment adequately protected against severe dust and sand storms?
Absolutely. APEKS GNSS receivers are manufactured with an IP67-rated sealed enclosure made from rugged magnesium-aluminum alloys, providing complete protection against fine dust penetration and high-velocity wind-driven particles common on open plains.
