GNSS RTK Surveying in Indonesia: SRGI2013 & Bogor Field Guide
Precision GNSS RTK surveying in Indonesia is anchored to the SRGI2013 (Sistem Referensi Geospasial Indonesia 2013) geodetic datum, maintained by BIG (Badan Informasi Geospasial). Real-time positioning relies on local Base-Rover setups or connection to the national InaCORS NTRIP network via port 2101. For operations on Java Island, specifically the Bogor and Western Java corridors, surveyors deploy within UTM Zone 48S. Utilizing a 1408-channel receiver equipped with advanced multipath mitigation ensures centimeter-level coordinates over complex, highly reflective inland water bodies and dense tropical vegetation environments.
- 1. The Mission: Tropical Topography and Infrastructure Inquiries
- 2. Geodetic Framework: SRGI2013 and UTM Zone 48S
- 3. Overcoming Multipath: Aquaculture Surveying in Bogor
- 4. Base Station Setup and Known Point Benchmarking
- 5. Field Performance under Dense Tropical Canopy
- 6. Key Specifications for Indonesian Field Conditions
- 7. FAQ
Indonesia is currently witnessing an unprecedented wave of regional infrastructure modernization, industrial corridor mapping, and community land parcel regularization (PTSL) programs. Executing high-precision engineering and cadastral measurements across the Indonesian archipelago requires strict adherence to localized geodetic standards and rugged hardware choices. From the rural aquaculture centers of West Java to complex suburban development zones, field crews encounter severe multipath signal reflections, intense ionospheric interference, and remote, off-grid scenarios. This comprehensive guide leverages direct field data collected in Bogor, Jawa Barat, to outline core setup steps, geodetic datum compliance, and practical solutions for maximizing RTK initialization speed and data traceability in equatorial climates.
1. The Mission: Tropical Topography and Infrastructure Inquiries
Surveying applications throughout Indonesia present rigorous field challenges that demand robust geodetic workflows:
- Inland Water Topography: Developing agricultural networks and aquaculture zoning projects requires surveying boundaries immediately adjacent to expansive fish ponds and swampy lowlands, which create significant satellite signal scattering.
- CORS Infrastructure Deficits: While the national InaCORS network expands through urban sectors, rural engineering blocks often sit outside stable cellular baselines, making independent Base-Rover radio data links crucial.
- Equatorial Scintillation: High atmospheric humidity paired with severe solar ionospheric activity near the equator often degrades signal quality during mid-day tracking windows, demanding receivers with high tracking redundancy.
2. Geodetic Framework: SRGI2013 and UTM Zone 48S
To secure state approval from the Indonesian Geospatial Information Agency (BIG) and the Ministry of Agrarian Affairs and Spatial Planning (ATR/BPN), all survey data must align with legal geodetic baselines:
The National Coordinate Reference System: Indonesia officially utilizes SRGI2013 (Sistem Referensi Geospasial Indonesia 2013). This datum accounts for the tectonic velocity models of the Sunda plate, transitioning from the older DGN95 reference frame. It is geodetically aligned to ITRF2008 with a reference epoch of January 1, 2013.
Map Projection Selection: For local surveying projects in West Java, including the districts of Bogor, Depok, and Jakarta, field data collectors must be configured to the Universal Transverse Mercator (UTM) projection system within UTM Zone 48S. Projects spanning eastern regions or neighboring islands will transition to adjacent zones (e.g., Zone 49S for Central Java and Bali).
3. Overcoming Multipath: Aquaculture Surveying in Bogor

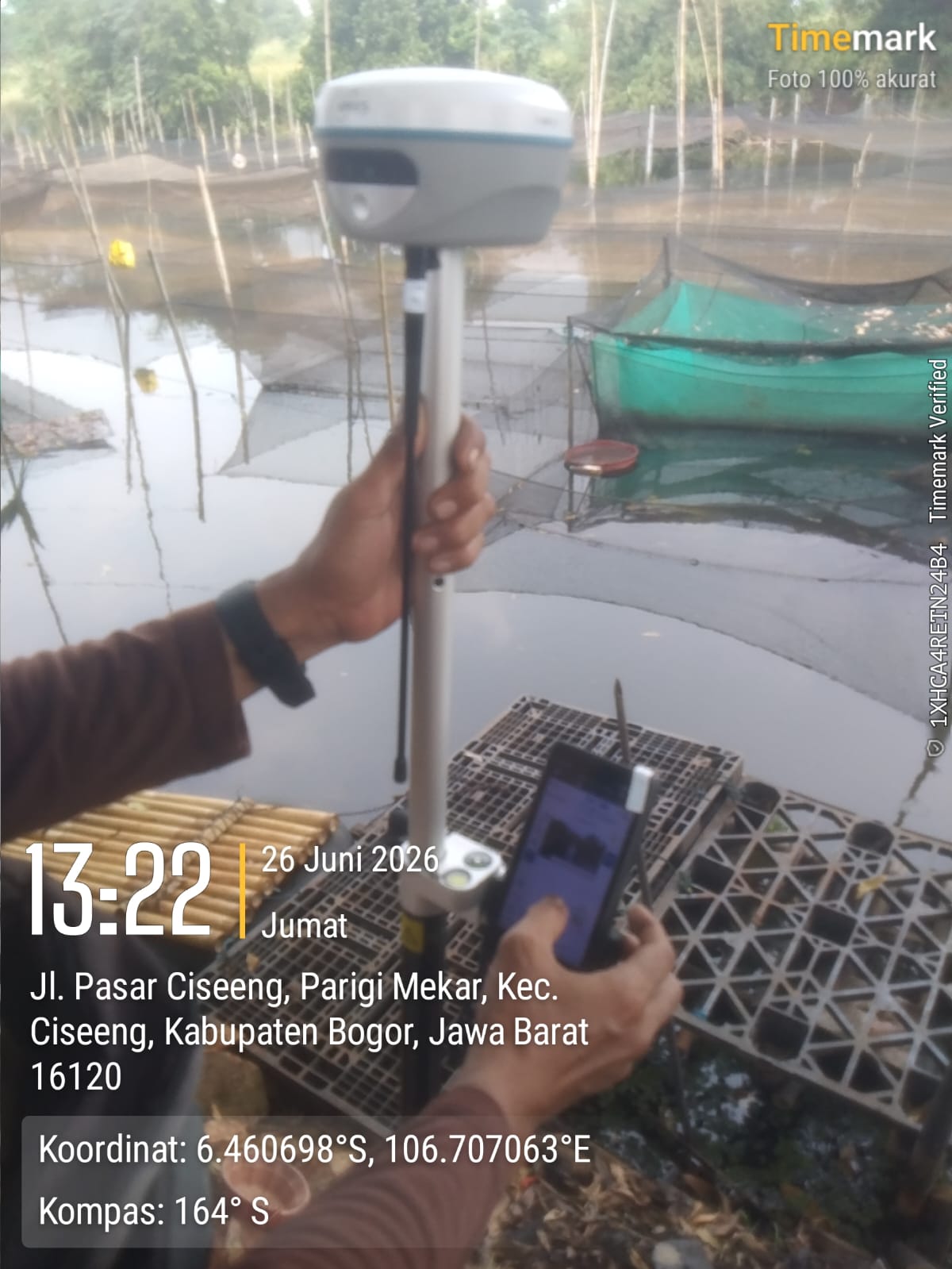

Inland water body mapping and aquaculture zoning projects in regions like Ciseeng, Bogor, present a highly reflective surface profile. As illustrated above, the field engineer must capture precise parcel boundaries directly over water retention basins and fish farming networks.
The Technical Advantage: Water surfaces behave like mirrors for satellite signals, causing severe multipath interference that triggers false initializations or prolonged "Float" statuses on legacy single-frequency receivers. The APEKS AP10 rover addresses this with a 1408-channel GNSS tracking architecture that tracks all active frequencies (GPS L1/L2/L5, BeiDou B1I/B2I/B3I/B1C/B2a, Galileo, and GLONASS). Coupled with an integrated narrow-correlator multipath rejection algorithm, the AP10 filters out the reflected water-surface signals, ensuring a stable, centimeter-level horizontal "Fixed" status within seconds right at the water's edge.
4. Base Station Setup and Known Point Benchmarking

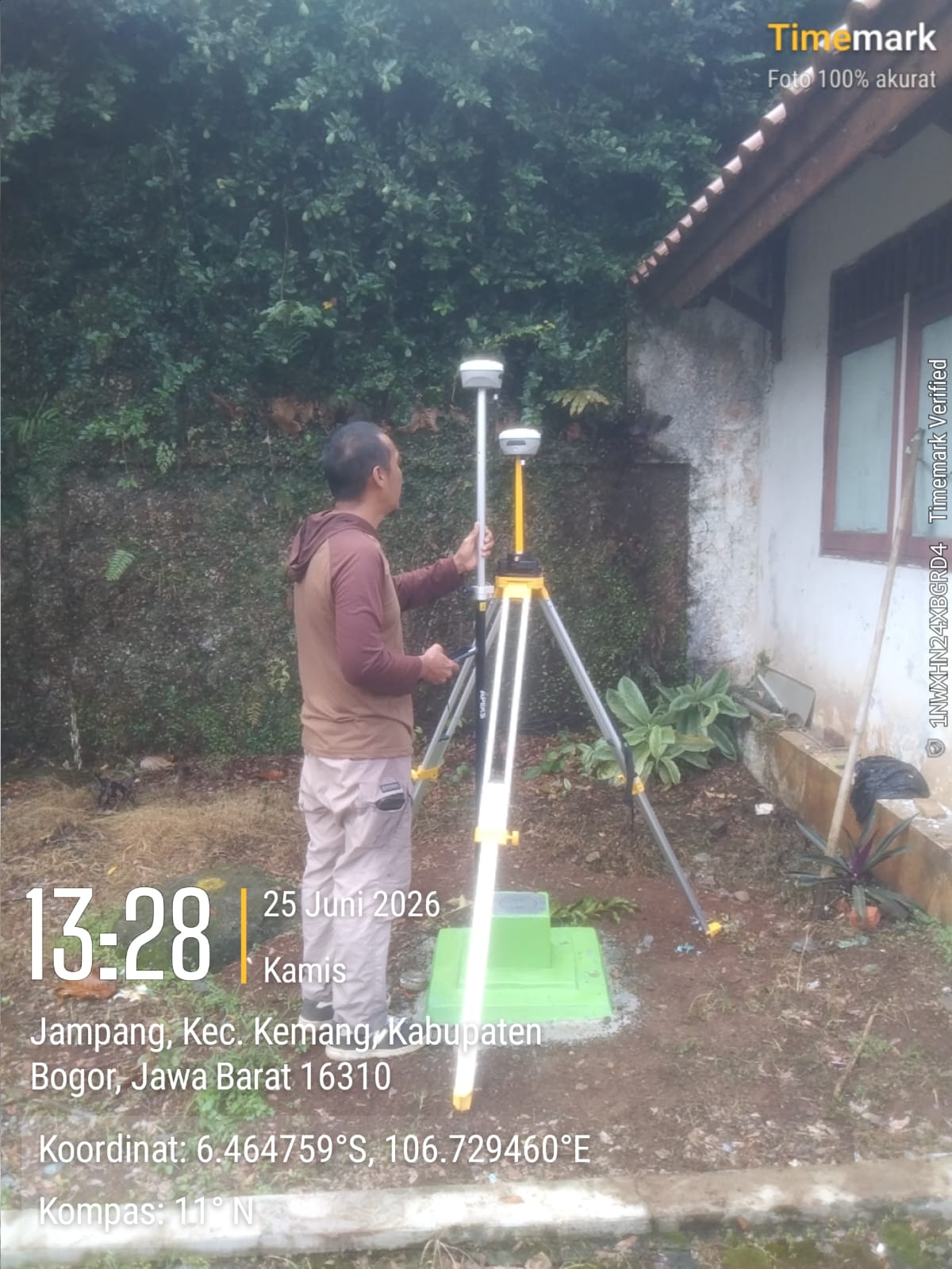

For large-scale construction or legal subdivision work, relying solely on network RTK can introduces baseline risks. Establishing a localized, highly secure geodetic control loop requires binding field data to a verified national benchmark pillar, as displayed in the Bogor municipality location above.

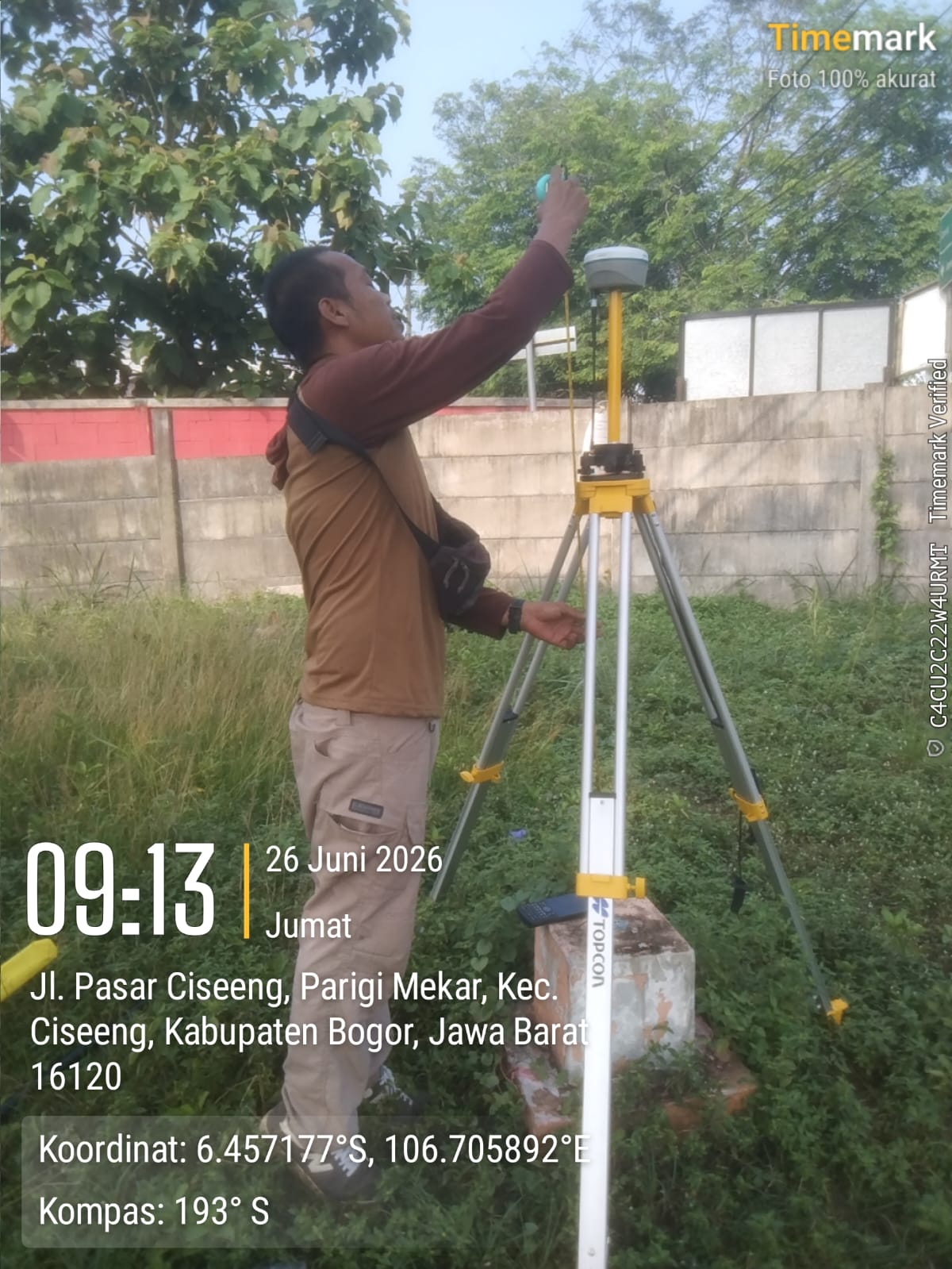

Rigorous Field Calibration: Field crews position the primary Base station directly over a cast concrete geodetic marker monument. For precise horizontal and vertical control, the team performs a physical measurement of the instrument height. As demonstrated below, using a heavy-duty steel tape rule to record the exact slant or true vertical distance from the marker's top surface to the receiver's center plane is mandatory. This mechanical offset value is entered into the ApekSurv interface to calibrate ellipsoidal-to-orthometric height calculations accurately across the entire project footprint.
5. Field Performance under Dense Tropical Canopy

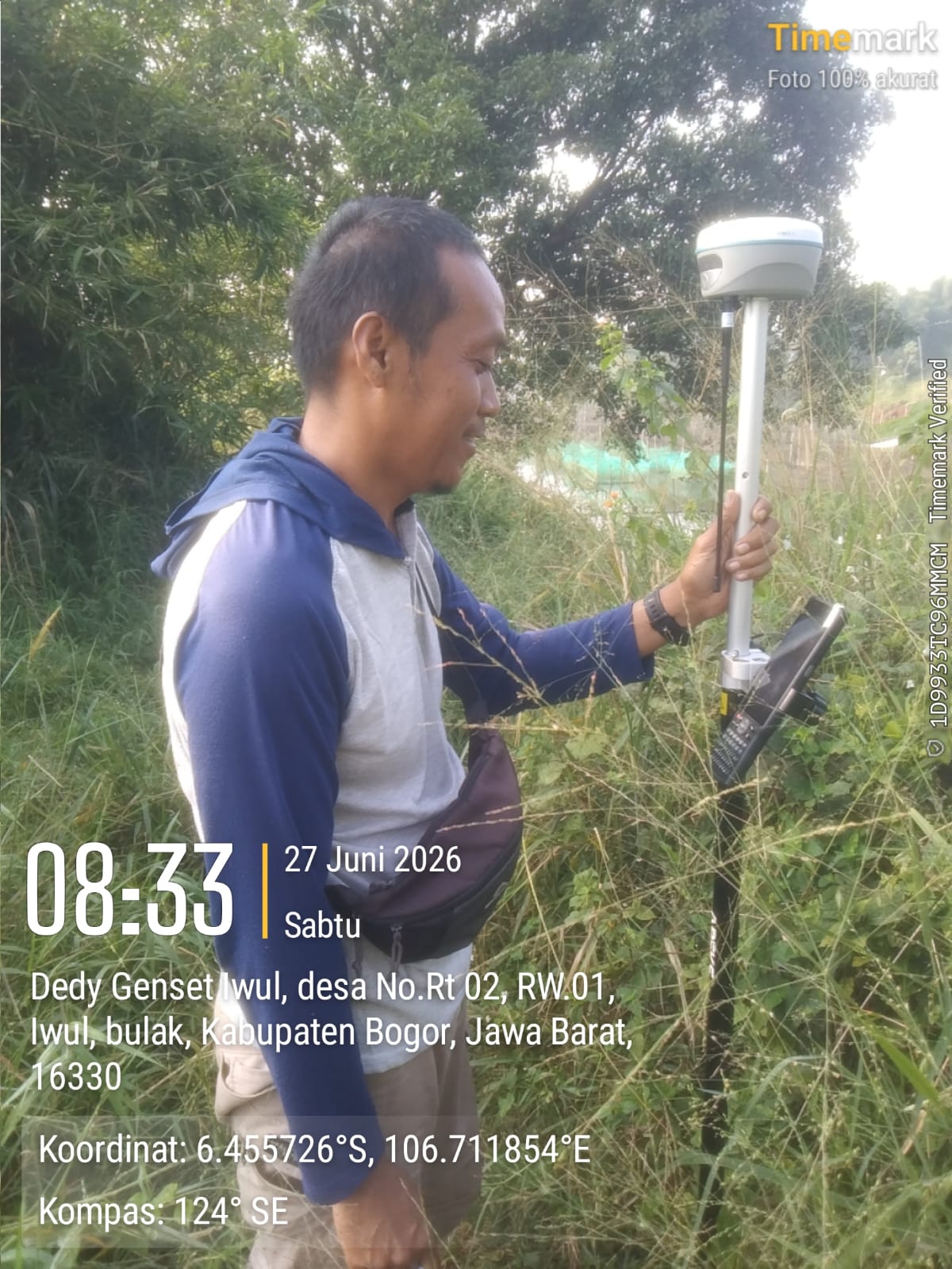

Cadastral land parcel verification programs frequently force field crews away from cleared development sites into dense, multi-tiered tropical brush and thick grass pastures typical of rural West Java.
The Technical Advantage: Heavy forest canopy and thick foliage absorb and attenuate standard satellite signals, often causing traditional rovers to drop their positional fix. The integration of a 120° Calibration-Free IMU Tilt Compensation system alters the field approach entirely. Instead of spending valuable time clearing vegetation or searching for an elusive level bubble position directly under branches, the surveyor tilts the pole up to 120 degrees to bypass immediate foliage blockages. This positions the receiver module in a more open sky window while keeping the precision tip firmly locked on the legal property corner boundary marker below.
6. Key Specifications for Indonesian Field Conditions
| Regional Environmental Challenge | Critical Hardware Metric | APEKS AP10 Field Capability |
|---|---|---|
| Aquaculture & Wetland Multipath | Channel capacity & frequency tracking | 1408 Channels (All Constellations Fixed) |
| Off-Grid Remote Regions | UHF Radio transmission power | Internal 2W UHF transceiver (8-15km range) |
| Tropical Rain & Mud Ingress | Enclosure sealing standard | IP67 Sealed Waterproof & Dustproof Rating |
| Heavy Foliage Boundary Corners | Tilt sensor operating angle | 120° Calibration-Free IMU Tilt System |
| High Equatorial Temperatures | Battery capacity & operational limits | Premium lithium-ion architecture (Up to 18 hrs operation) |
7. FAQ
Does the APEKS receiver natively support the Indonesian SRGI2013 coordinate system?
Yes. The pre-installed ApekSurv field software contains a comprehensive global geodetic library. Users operating within Indonesia can select or define SRGI2013 datums alongside the appropriate localized UTM zones (such as Zone 48S for Java) directly from the project setup menu.
Can the equipment connect directly to Indonesia's InaCORS network?
Yes. By utilizing an internal 4G SIM card from local providers such as Telkomsel or Indosat within the controller, the APEKS system operates seamlessly as a Network Rover. Simply enter the InaCORS IP address, server port 2101, and your BIG-issued credentials to receive multi-constellation RTCM corrections.
How does high tropical humidity affect instrument reliability during long field campaigns?
The AP10 receiver features an IP67-certified magnesium-alloy shell designed to prevent internal moisture condensation and seal out heavy torrential rainfall, guaranteeing stable electronics performance during prolonged deployments in equatorial environments.
What is the advantage of using a local Base-Rover setup over CORS in rural Indonesia?
Local Base-Rover setups using the built-in UHF radio require zero cellular internet connectivity. This eliminates downtime caused by weak mobile network signals in remote agricultural zones or mining tracts, providing a highly reliable and independent centimeter-accurate surveying loop.
