APEKS RTK GNSS & Total Station in Panama: Coastal Development Survey
Surveying coastal real estate developments and heavy earthworks in Panama demands extreme equipment reliability due to high humidity, salt spray, and complex topography. Local engineering firms utilize the APEKS "Total Solution"—pairing the AP10 RTK GNSS for off-grid boundary control with the Android-based AM02i Total Station for millimeter-level retaining wall stakeouts. This synergistic workflow ensures continuous, high-precision construction data delivery in challenging marine and tropical environments.
- 1. The Panama Context: Coastal Boom and Terrain Challenges
- 2. Scene A: Coastal Boundary Control with Base-Rover Setup
- 3. Scene B: Heavy Earthworks & Retaining Wall Stakeout
- 4. Scene C: The RTK & Total Station Synergy (Total Solution)
- 5. Key Specifications: AP10 & AM02i
- 6. Field Results and Local Trust
- 7. FAQ
1. The Panama Context: Coastal Boom and Terrain Challenges
Panama's rapidly expanding real estate and infrastructure sectors present unique challenges for geodetic surveying:
- Harsh Marine Environment: Coastal development sites expose equipment to intense UV radiation, high tropical humidity, and corrosive salt spray, requiring strict IP67 hardware durability.
- Complex Topography: Projects often transition sharply from flat sandy beaches straight into massive, excavated red-dirt cliffs for retaining walls within less than 10 feet, demanding versatile measurement techniques.
- Connectivity Gaps: High-end remote resorts often lack reliable cellular coverage, making internet-dependent network rovers (CORS/NTRIP) completely dead on arrival and forcing teams to rely on internal UHF radio data links.
Developing coastal infrastructure along remote stretches of Panama requires field crews to operate with complete positional autonomy. When a project boundary moves directly from an open beach line into steep, vertical earthwork cuts, traditional single-instrument methods fail to maintain both data throughput and field safety standards.
2. Scene A: Coastal Boundary Control with Base-Rover Setup

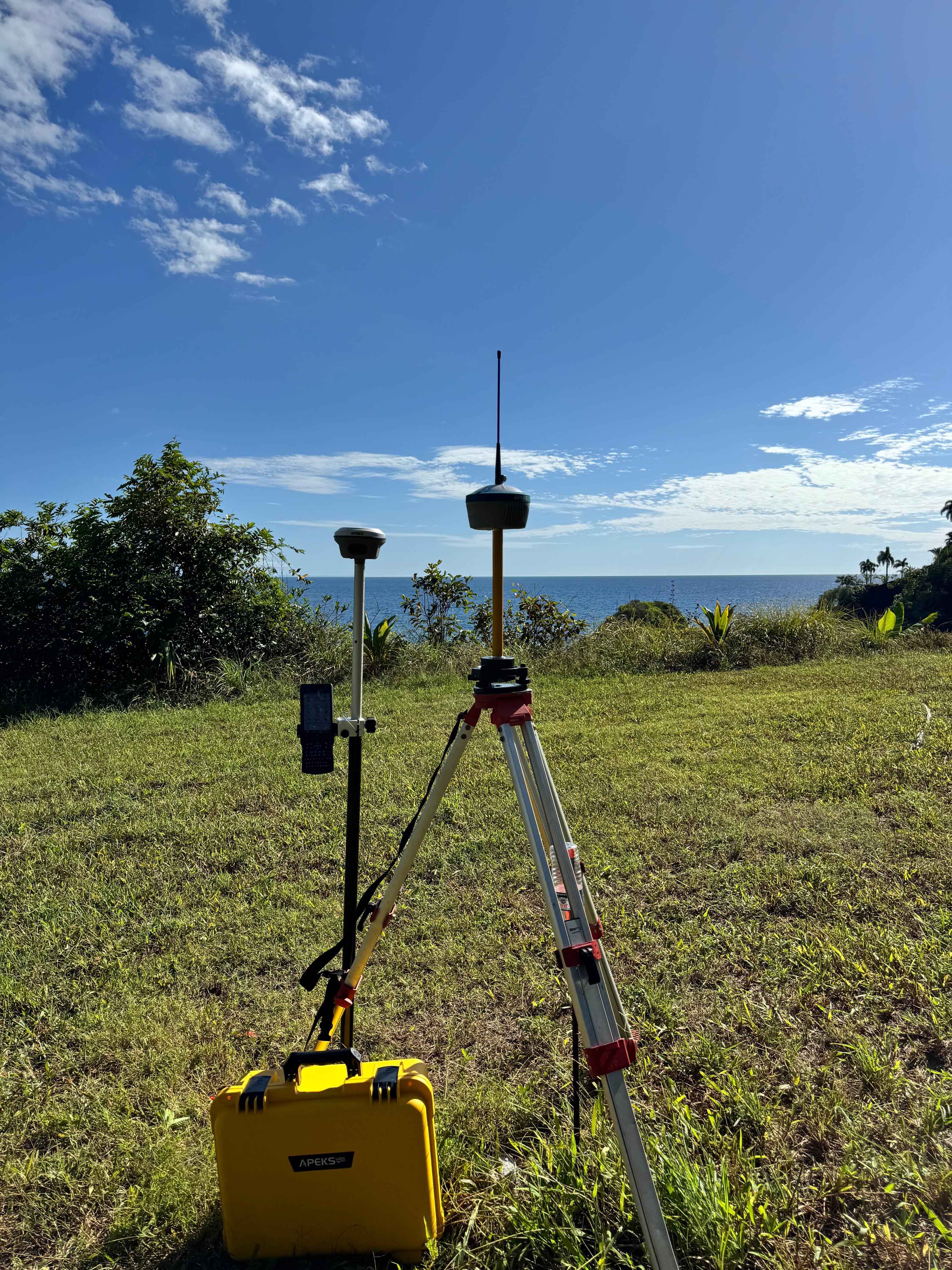

Establishing accurate control points is the critical first step for any large-scale coastal development. The image above shows an APEKS Base and Rover configuration deployed on an elevated coastal headland overlooking the Pacific Ocean.
The Technical Advantage: Operating entirely off-grid, the Base station utilizes its built-in 2W UHF radio to transmit RTK corrections directly to the Rover over several kilometers. Meanwhile, the 1408-channel GNSS board utilizes advanced multipath-mitigation algorithms to filter out signal reflections bouncing off the vast water surface, maintaining a reliable ±8mm Fixed status where older 600-channel receivers typically struggle. This autonomous data link ensures that primary control loops are securely tied to the geodetic reference frame before any heavy clearing or grading begins.
3. Scene B: Heavy Earthworks & Retaining Wall Stakeout

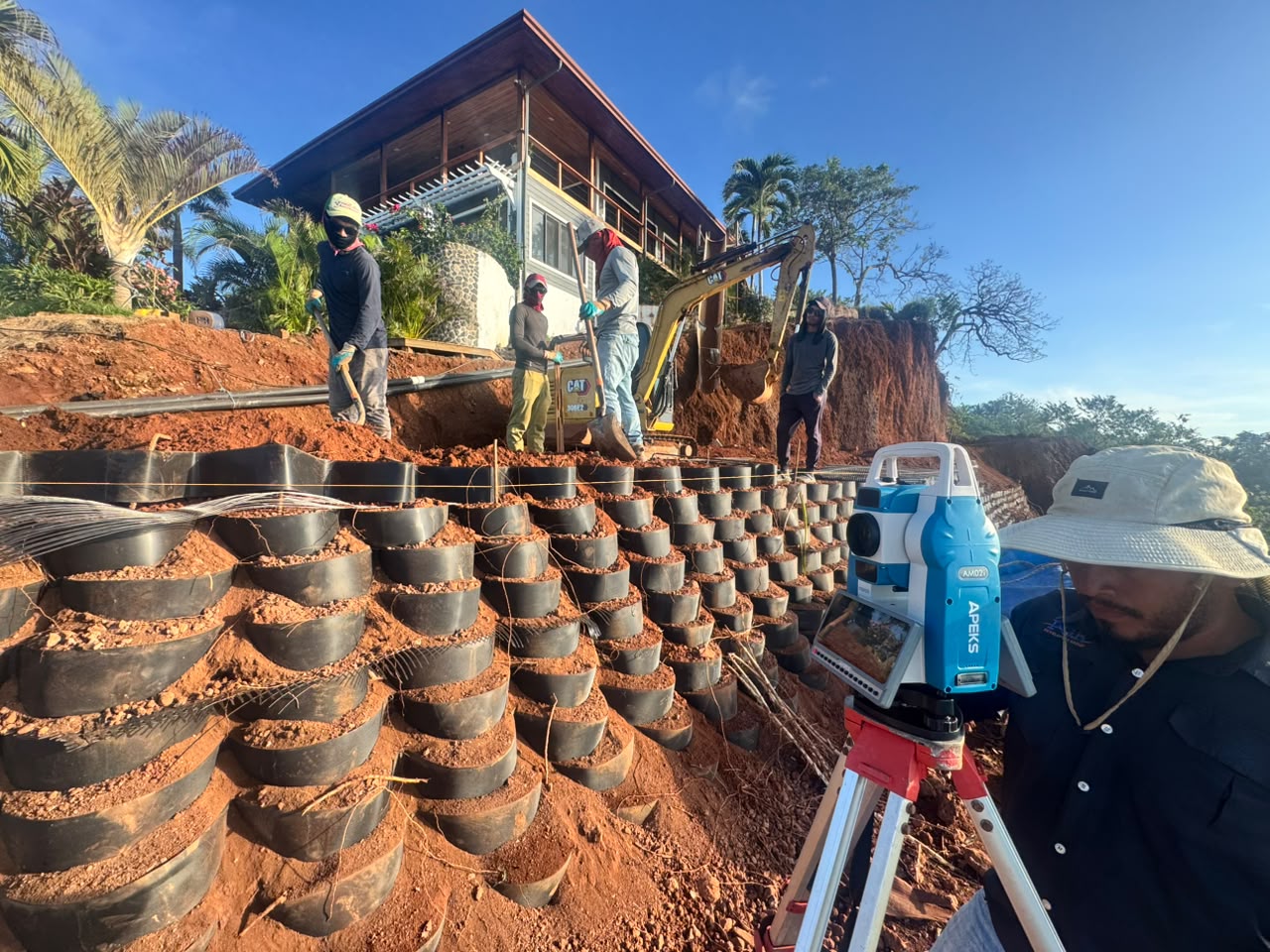

Once property boundaries are established, heavy machinery moves in to reshape the topography. The photo demonstrates the APEKS AM02i Total Station in action during the construction of a massive, tiered retaining wall on a steep red-dirt slope.
The Technical Advantage: While GNSS is excellent for open-sky boundaries, structural stakeouts require sub-millimeter precision unaffected by excavators or deep excavation walls. Near these steep cuts, satellite tracking becomes completely useless due to heavy machinery blocking the view and physical cliffs causing extreme signal blockage. The AM02i delivers 2" angular accuracy and a 1000m non-prism (reflectorless) EDM, allowing the surveyor to resection the instrument off the coastal control points and shoot directly onto the retaining wall tiers. This technical setup completely eliminates the need to send a rodman up a dangerous, unstable dirt wall, mitigating major safety liabilities in the field. Its Android-based operating system effortlessly handles heavy CAD files for real-time earthwork volume calculations.
4. Scene C: The RTK & Total Station Synergy (Total Solution)

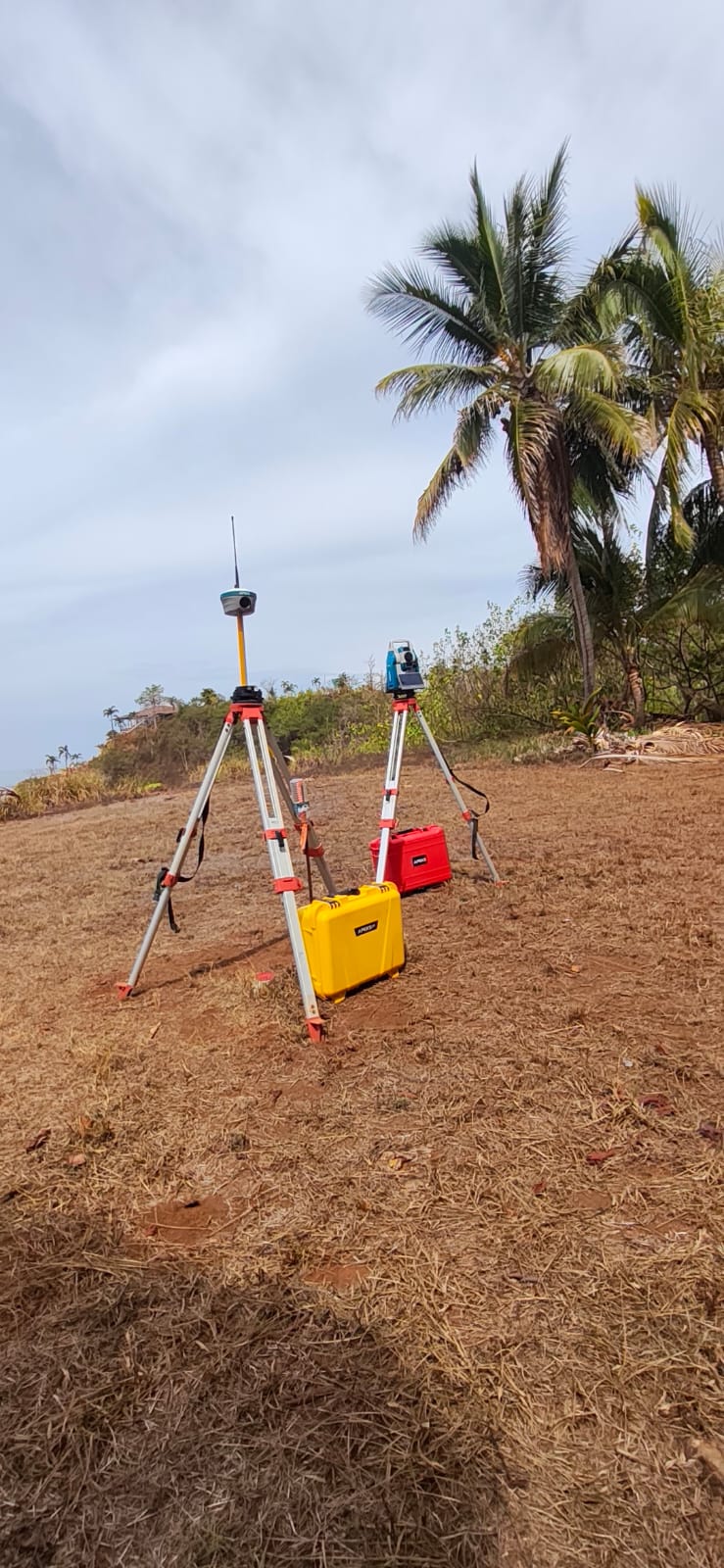

Professional engineering firms do not view GNSS and optical instruments as competitors; they are complementary tools. As seen above, deploying both the AP10 RTK and AM02i Total Station side-by-side guarantees project continuity.
The standard workflow in Panama involves using the AP10 RTK receiver to quickly establish georeferenced control points across the massive job site. The AM02i Total Station is then set up over these known points via resection to execute highly detailed, GNSS-denied tasks—such as laying out anchor bolts, verifying structural concrete pouring, or working directly under dense tropical tree canopies.
Industry Insights from the Global Surveying Community (r/Surveying):
When field notes from this Panama deployment were analyzed by field professionals on Reddit's r/Surveying community, the combination of an Android 14 interface, 2" optical precision, and a 1000m reflectorless EDM at an accessible $2,000–$2,500 USD price range sparked extensive technical interest. Traditional mechanical total stations running outdated Windows CE systems suffer from steep learning curves and slow serial file conversion workflows. Experienced surveyors noted that an instrument offering native onboard DXF/DWG CAD handling provides a massive cost-to-performance advantage in harsh off-grid sectors, provided its sealed enclosure holds up long-term against high UV index, pervasive tropical mud, and corrosive coastal salt air environments.
5. Key Specifications: AP10 & AM02i
| Feature | AP10 RTK GNSS | AM02i Total Station |
|---|---|---|
| Core Engine | 1408 Channels | 2" Angular Precision |
| Measurement Range | 8-15km (UHF Radio) | 1000m Reflectorless / 5000m Prism |
| Tilt / Compensator | 120° Cal-Free IMU | Dual-Axis Liquid Compensator |
| Operating System | ApekSurv (Android) | Android OS (6-inch Touchscreen) |
| Durability | IP67 / IK08 | IP55 (Dust & Jet Water Resistant) |
6. Field Results and Local Trust
Panama Coastal Deployment Outcomes:
- Achieved 100% operational uptime despite severe heat, humidity, and constant exposure to coastal salt environments.
- Drastically reduced retaining wall construction timelines by utilizing the AM02i's long-range reflectorless EDM.
- Empowered local survey teams with intuitive, Spanish-language Android software across both GNSS and optical platforms, streamlining the learning curve and field data collection.
7. FAQ
Can APEKS equipment handle tropical coastal environments?
Yes. The AP10 RTK receiver features an IP67 rating and a magnesium-aluminum alloy chassis, making it completely impervious to thick mud, driving tropical rain, and corrosive coastal salt spray.
Why use a Total Station when you have RTK GNSS?
While GNSS is perfect for open-sky boundary control, a Total Station like the AM02i is strictly required for sub-millimeter structural tasks (e.g., retaining walls, anchor bolts) and areas where satellite signals are blocked by dense tree canopies or deep excavations.
Does the AM02i require a prism for earthwork measurements?
Not always. The AM02i is equipped with a powerful 1000m reflectorless EDM, allowing surveyors to shoot precise measurements directly against soil, rock, or concrete retaining walls without sending a person into hazardous construction zones with a prism.
Are the APEKS GNSS and Total Station software available in Spanish?
Absolutely. Both the ApekSurv data collection software for GNSS and the onboard Android software for the AM02i Total Station feature complete Spanish localization, designed for seamless use by engineering teams across Latin America.
THE ULTIMATE TOTAL SOLUTION FOR LATIN AMERICA.
Bridge the gap between boundary control and structural precision. Equip your engineering firm with the IP67-rated AP10 GNSS and the Android-powered AM02i Total Station to dominate complex terrain and accelerate project delivery.
