In Chile's infrastructure and forestry projects, RTK GNSS fails in three critical environments: highway tunnels (zero satellite signal), high-canopy eucalyptus plantations (severe multipath and signal blockage), and high-voltage transmission corridors (electromagnetic interference). The APEKS AM02i Android total station — with 2" angular accuracy, 1000m non-prism range, 6-inch daylight-readable touchscreen, and dual 7000mAh hot-swap batteries — delivers the precision required where GNSS cannot. Chile's elongated Andean terrain makes this optical measurement capability non-negotiable for road infrastructure and forestry cadastral surveys.
1. Why Chile's Terrain Breaks RTK GNSS
Chile's geography stretches over 4,300 kilometres from the Atacama Desert in the north to Patagonia in the south, dominated longitudinally by the Andes mountains. This dramatic topography creates three specific environments where even the most advanced RTK GNSS receivers fail:
- Highway Tunnel Expansion: Zero satellite signal penetration. RTK is completely unusable underground, making optical total stations mandatory for interior stakeout and alignment.
- High-Density Eucalyptus Cadastral Survey: The dense forest canopy generates severe signal blockage and multipath effects, making it impossible to maintain a reliable RTK "Fixed" status.
- High-Voltage Transmission Corridors: Intense electromagnetic interference (EMI) from overhead lines disrupts the RTK's internal IMU compass and degrades carrier-phase observation quality.
Conclusion: In these three specific operational scenarios, an optical total station is the absolute baseline requirement to guarantee measurement precision and project continuity.
2. Scene A: Highway Tunnel Construction

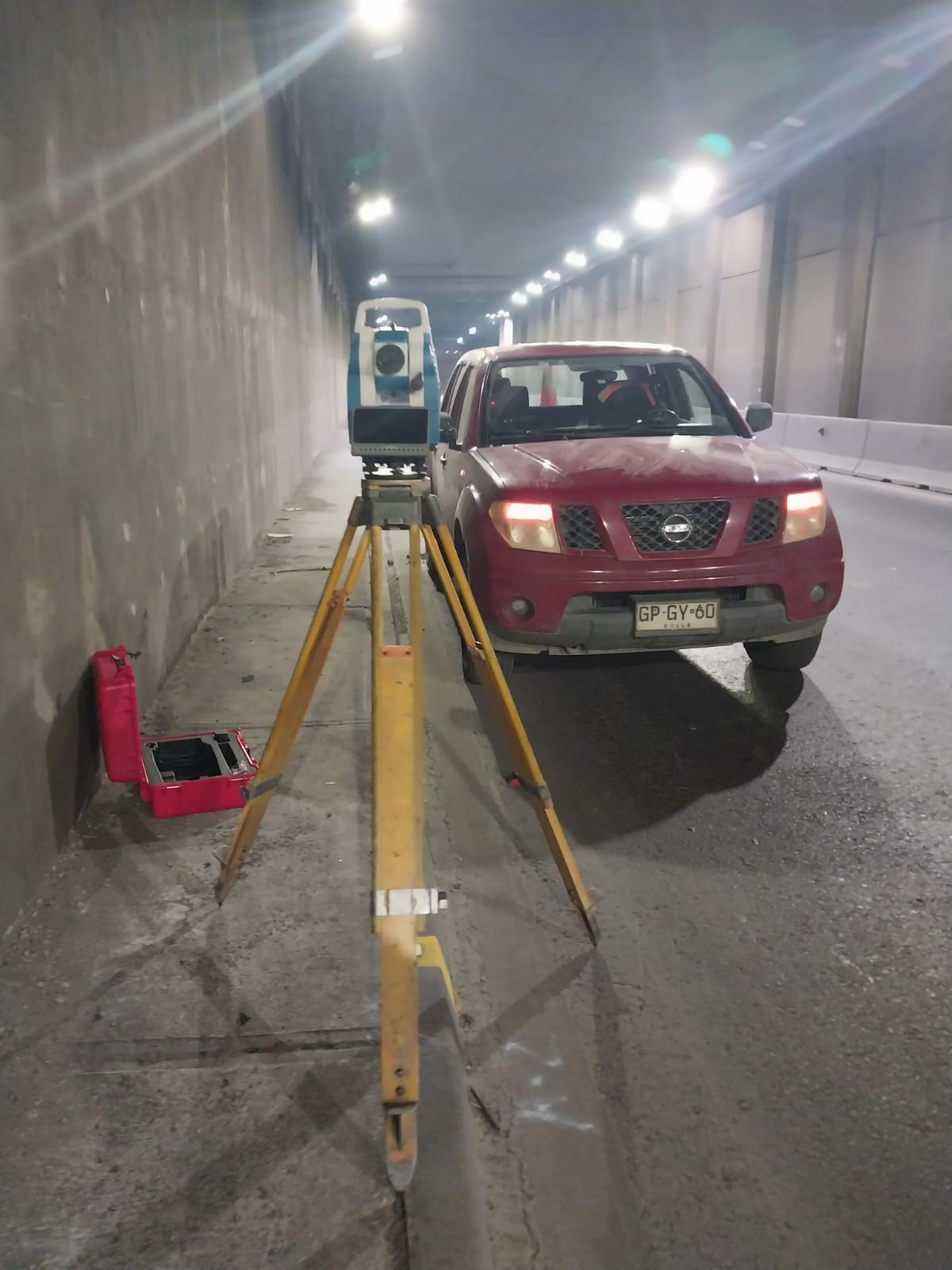

The deployment documented here took place along Chile's Ruta 5 (Pan-American Highway) near Santiago, one of South America's most critical arterial road corridors and a continuous site of tunnel expansion and highway maintenance surveys. Operating inside an active highway tunnel presents a brutal combination of low illumination, high humidity, and continuous traffic interference.
The APEKS AM02i delivers specific workflow advantages in this dark, enclosed environment:
- 6-Inch Self-Illuminating Color Screen: Unlike traditional monochrome total stations, the AM02i's large, bright display ensures CAD design blueprints are clearly visible in the dark tunnel interior without requiring an external flashlight.
- CAD Stakeout (DXF/DWG Import): Engineers can import native CAD files directly to the device. This allows for direct on-screen graphical stakeout of the tunnel centerline, vault control points, and sidewall lining offsets.
- Android 14 Operating System: The intuitive Android interface mimics standard smartphone operation, virtually eliminating the learning curve for field engineers transitioning from older optical equipment.
- 2" Angular Accuracy: Guarantees that tunnel axis deviations remain strictly within tight engineering design tolerances.
- Physical Full Keyboard: Provides a critical backup input method when operators are wearing heavy work gloves or when the touchscreen responsiveness drops due to tunnel condensation.
3. Scene B: High-Canopy Forestry Survey
Mapping cadastral boundaries through commercial timber plantations neutralizes satellite positioning. The dense eucalyptus canopy effectively creates a permanent GNSS-denied zone.
As seen in the field deployment, the surveyor is operating directly over a clearly marked yellow control point monument (designated DV-26). The dense tree cover above completely blocks the sky, illustrating the exact scenario where RTK initialization fails. The AM02i overcomes this through:
- 1000m Non-Prism Range: Allows the surveyor to shoot distant control points and property corners through narrow canopy gaps without requiring a prism operator to navigate the thick underbrush.
- Dual-Axis Compensator: Automatically corrects slight instrument tilts caused by setting up the tripod on the uneven, root-heavy forest floor, ensuring the vertical axis remains plumb.
- Control Point Traverse Closing: Establishes a highly accurate localized control network through rigorous angle closing and traverse calculations, completely independent of satellite geometry.
- Zero GNSS Reliance: Position derivation relies 100% on precise optical angle measurement and electronic distance measurement (EDM).
4. Scene C: Hillside Terrain with High-Voltage Lines

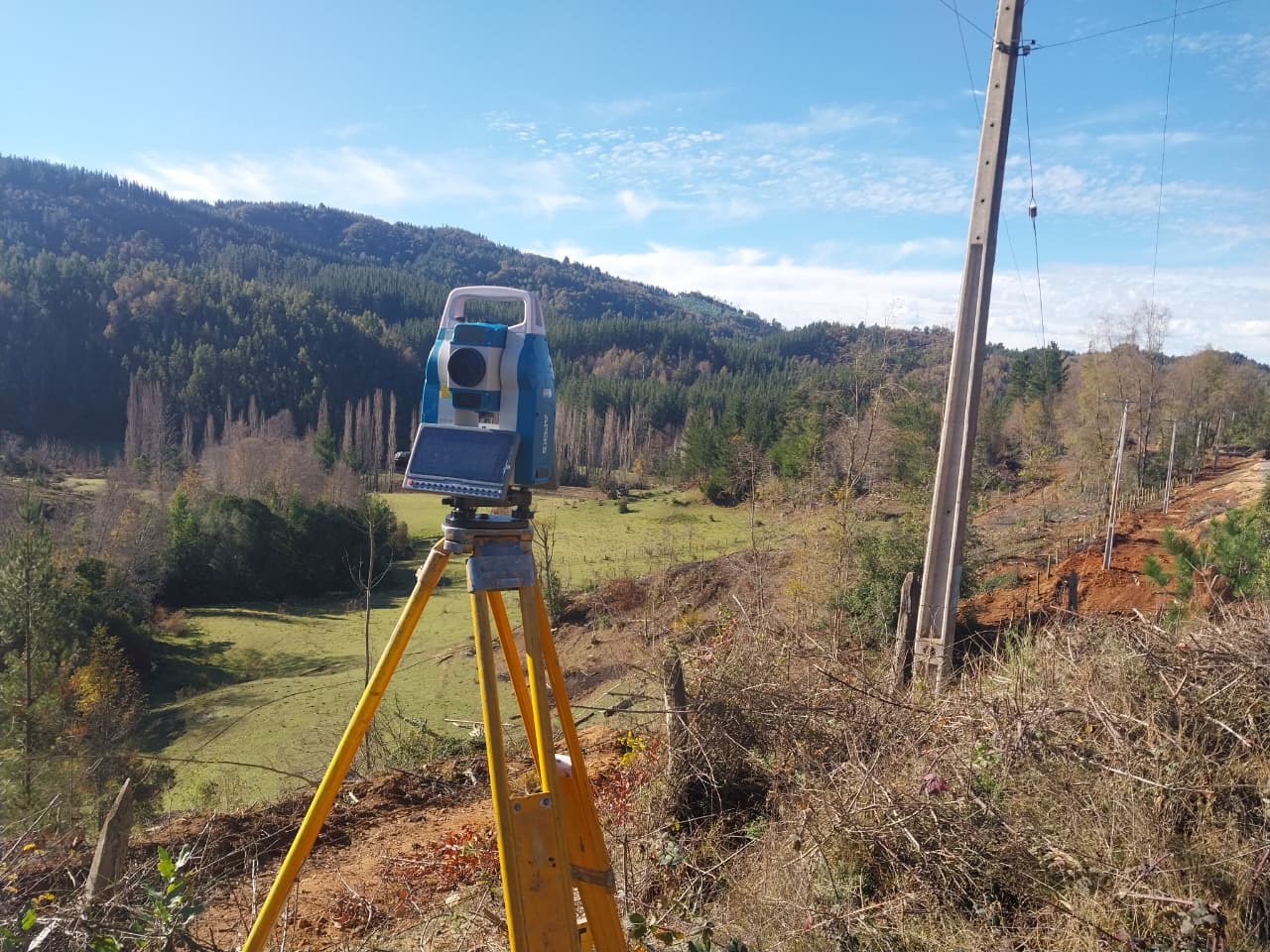

Running topographic surveys across rural Andean foothills frequently requires working directly underneath major high-voltage transmission infrastructure.
The RTK Vulnerability: Strong electromagnetic fields generated by these power lines severely disrupt the magnetic compass inside an RTK's IMU tilt sensor, forcing constant recalibrations. Additionally, the EMI degrades the carrier-phase signal, resulting in unstable FIX solutions and unpredictable coordinate jumps.
The AM02i Solution: The total station utilizes pure optical angle encoding and laser distance measurement, which are fundamentally immune to electromagnetic interference. The 1000m non-prism range allows field crews to measure topography safely from a distance, while the 30× optical magnification ensures precise targeting of distant landmarks across the deep, undulating Chilean hillsides.
5. AM02i vs RTK: When to Use Which
The AM02i and RTK GNSS receivers are complementary tools, not direct substitutes. Engineering firms maximize efficiency by equipping crews with both.
| Survey Scenario | RTK GNSS Receiver | AM02i Total Station |
|---|---|---|
| Open Terrain Topography | ✓ Preferred (High Speed) | Slower workflow |
| Highway Tunnel Stakeout | ✗ No Signal | ✓ Only Solution |
| High-Density Forestry Cadastral | ✗ Signal Blockage | ✓ 1000m Range |
| High-Voltage Corridors | ✗ EMI Disruption | ✓ Optical Immunity |
| CAD Design Stakeout | ✓ AR Assisted | ✓ Native Android UI |
| Single-Person Operation | ✓ Yes | ✓ Yes (Non-prism) |
| All-Day Battery Life | ✓ Approx. 18h | ✓ Dual 7000mAh |
6. Key Specifications
| Parameter | Specification |
|---|---|
| Angular Accuracy | 2″ |
| Non-Prism Range | 1000m |
| Prism Range | 4000m |
| Display | 6″ touchscreen |
| OS | Android 14 |
| Storage | 4GB RAM + 64GB ROM |
| Battery | 2 × 7000mAh hot-swap |
| Magnification | 30× |
| Compensator | Dual-axis |
| CAD Import | DXF / DWG via ApekSurv |
| IP Rating | IP55 |
Also Available: APEKS AM02 Total Station
For teams requiring a more compact and cost-effective optical instrument without Android capability, the APEKS AM02 delivers the same 2" angular accuracy and 1000m non-prism range, with a 2.8" color display, Bluetooth / USB / RS232 / SD card connectivity, and ApekSurv CAD stakeout support. Ideal for standard open-site topographic surveys where full Android functionality is not required.
7. Field Results from Chile
Chile Deployment Summary (2026):
- Location: Ruta 5 (Pan-American Highway), Santiago, Chile
- Application: Highway tunnel construction stakeout and forestry cadastral control network establishment.
- Equipment: APEKS AM02i Android Total Station.
- Field conditions: Low-light tunnel interior, dense eucalyptus canopy, and undulating Andean hillside terrain.
- Verification: True local deployment confirmed by Chilean vehicle plates visible in the field imagery (e.g., the red Nissan pickup with local registration).
- Outcome: Successful centimeter-level control point establishment across all three distinct GNSS-denied environments without project delays.
8. Risk Warning: Working in the Chilean Rainy Season
Field crews operating in central and southern Chile during the rainy season (May through August) face frequent precipitation and high humidity. Under these conditions, standard capacitive touchscreens can suffer from reduced responsiveness, especially when operators are wearing wet gloves. To mitigate this risk, the APEKS AM02i is engineered with dual input methods: it pairs the 6-inch touchscreen with a full physical alphanumeric keyboard and an included stylus. This ensures that rapid data entry, station setup, and code logging continue uninterrupted regardless of heavy moisture or cold weather constraints.
9. FAQ
Can the AM02i work inside road tunnels without GPS?
Yes. The AM02i is an optical total station that relies entirely on an internal absolute encoder for angle measurement and a laser distance meter for ranging. It does not require any satellite signals, making it the required instrument for underground tunnel alignments and stakeouts.
How does the AM02i compare to RTK GNSS for forestry survey?
In dense forestry, RTK GNSS suffers from severe signal blockage and multipath effects, often failing to initialize a reliable fixed position. The AM02i bypasses this limitation by establishing physical line-of-sight traverses through the forest canopy gaps, utilizing its 1000m non-prism range to record precise cadastral boundaries where GNSS cannot.
What is the non-prism range of the AM02i?
The AM02i features a high-performance EDM capable of measuring up to 1000 metres without a reflector prism. For extended survey traverses across open terrain, it can measure up to 4000 metres when targeting a standard single prism.
Does AM02i support CAD file import for stakeout?
Yes. Running on the Android 14 operating system with the integrated ApekSurv software, the AM02i allows direct import of standard DXF and DWG CAD files. Surveyors can view the project map directly on the 6-inch color touchscreen and select points, lines, or intersections graphically for immediate field stakeout.
