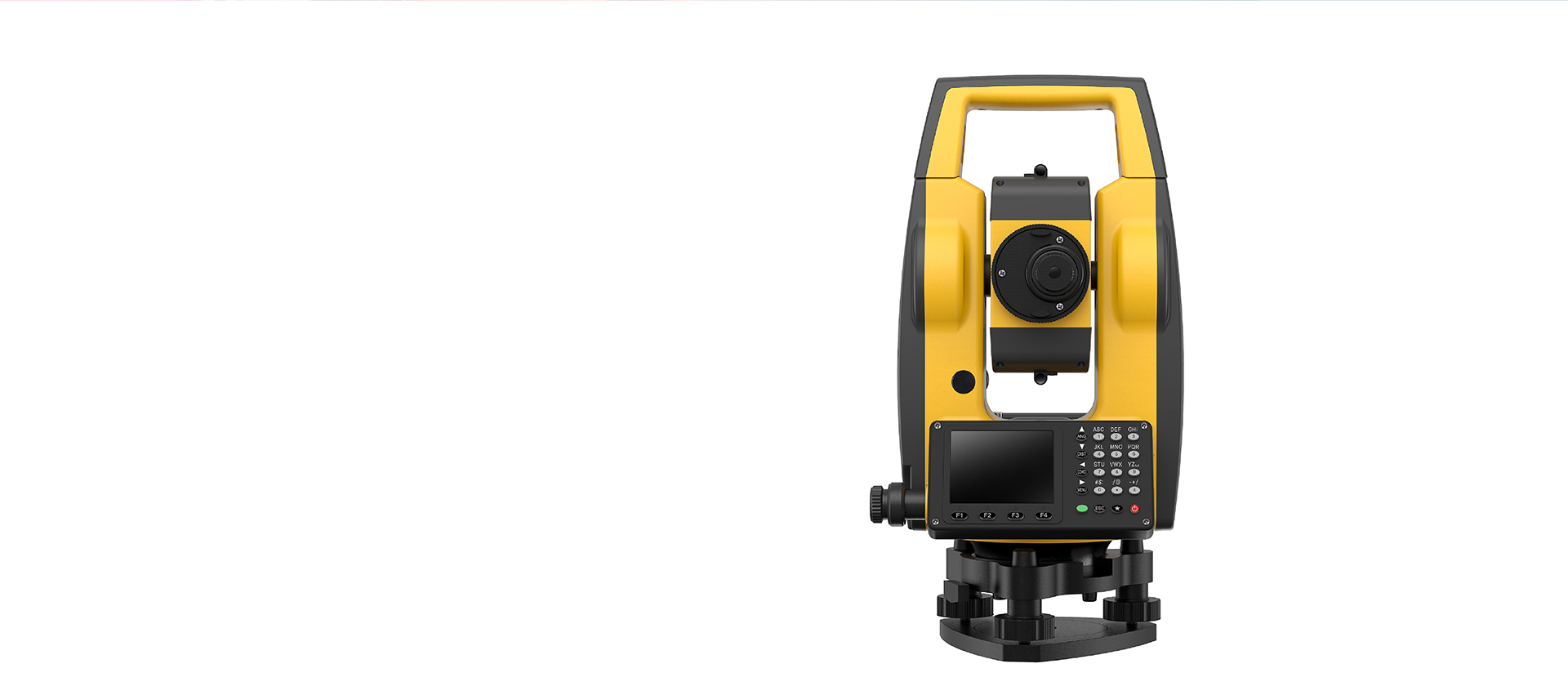

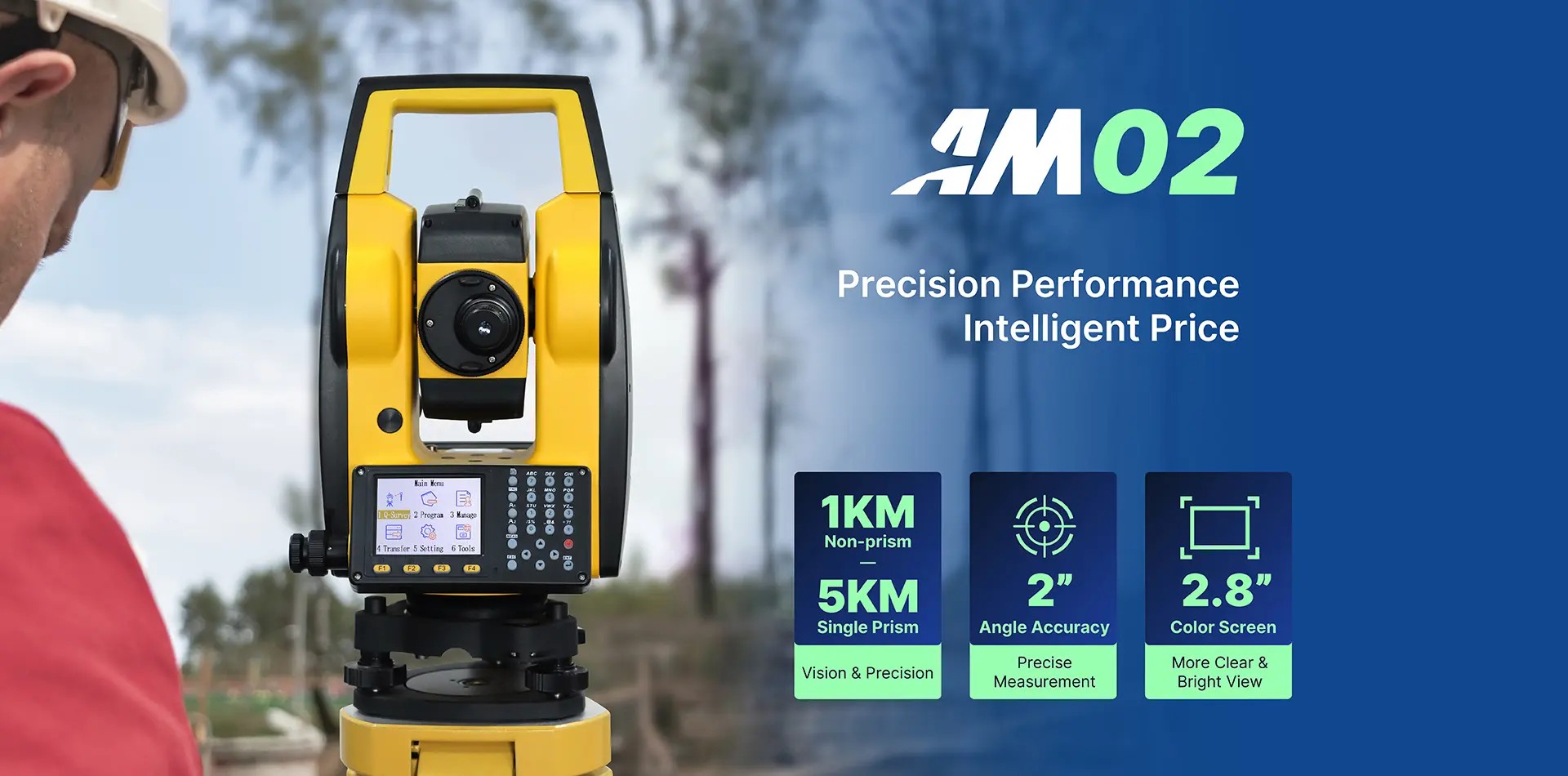

It achieves 2" angle accuracy and offers reflectorless measurement up to 1000 m (5000 m with a single prism). two battery can ensure 16 hours of continuous operation, it ensures reliable all-day productivity for demanding surveying applications.

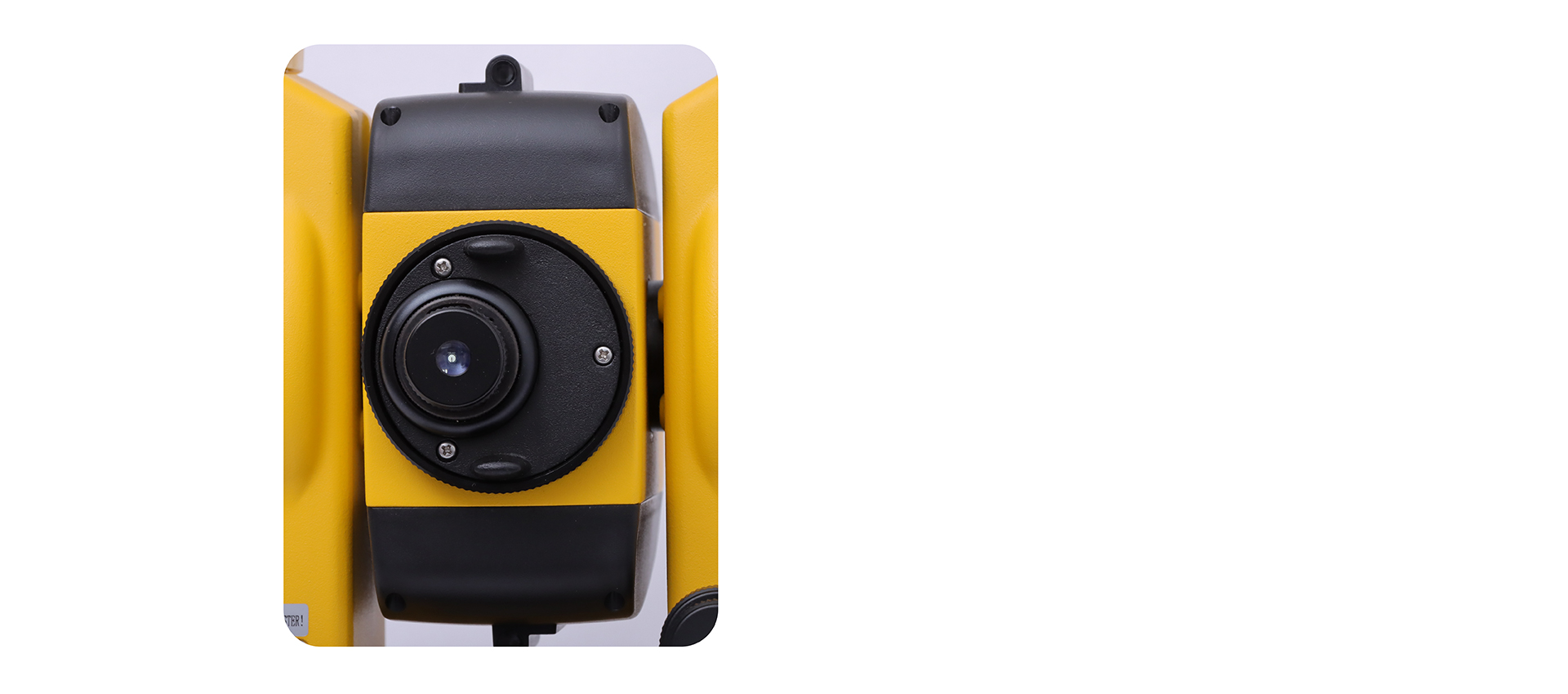

Dual-axis Compensation
This unit offers 0.8" precision with 0.3s tracking, supported by a dual-axis compensator. It provides 1000m prism-free ranging at ±(3mm+2ppm) accuracy and features a bright 2.8" color display with integrated laser plummet for eficient operation.

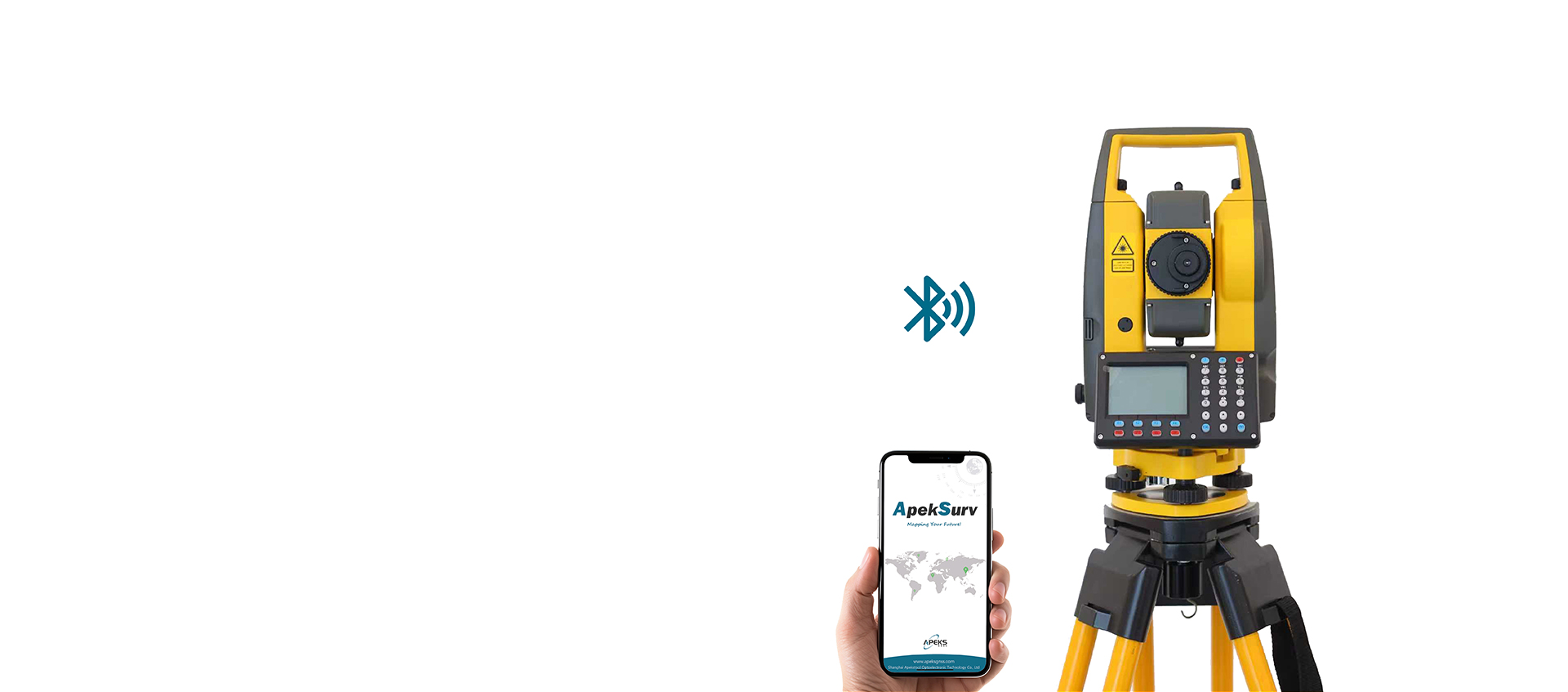

Measure Setout
by Android Software
The AM02 seamlessly connects to ApekSurv via Bluetooth, enabling direct CAD basemap import and graphical stakeout without manual coordinate entry. It unifies GNSS and optical surveys under one project with intuitive graphic guidance for points and lines, streamlining your workflow with unmatched ease.

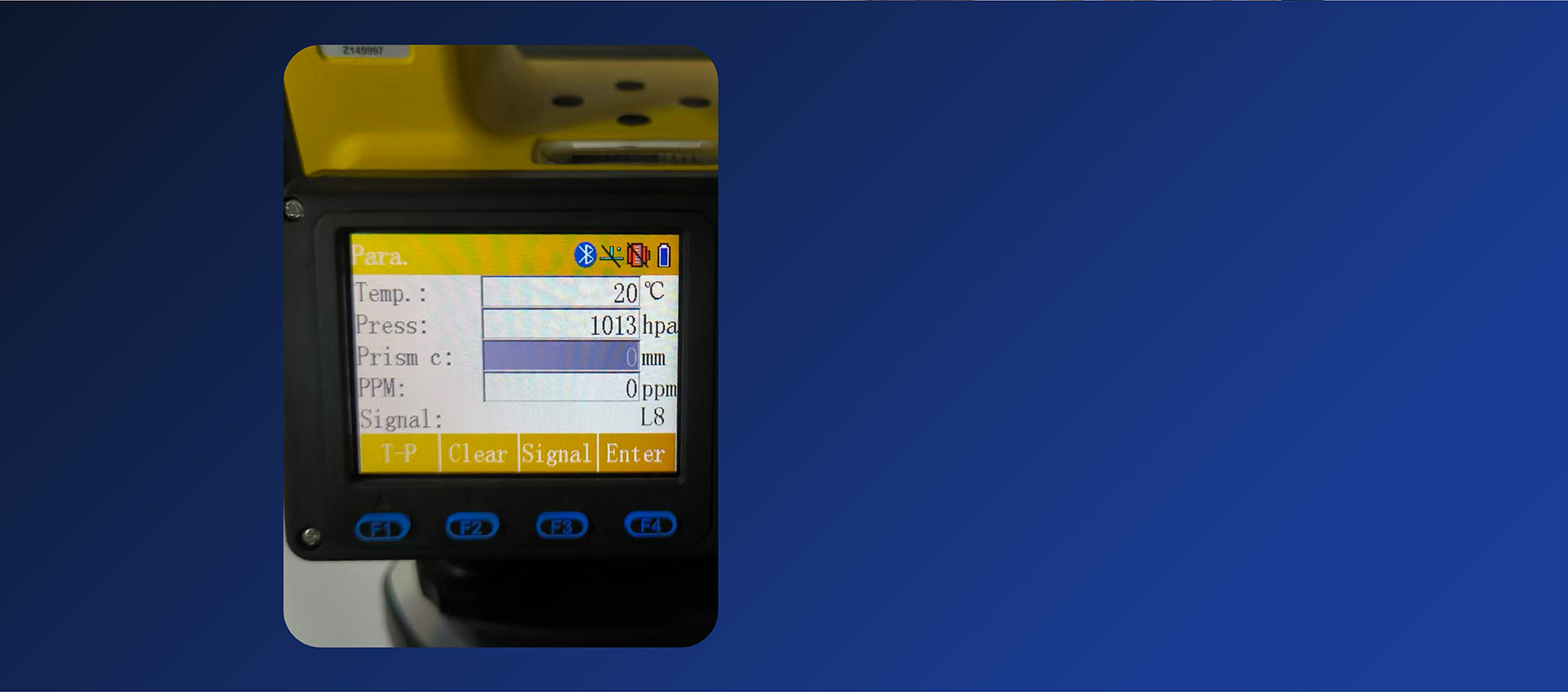

Temperature and
Pressure Sensor
The built-in Smart T-P Sensor automatically compensates for temperature and pressure changes in real-time, ensuring on-demand measurement accuracy by guaranteeing precise PPM correction.
Reference Line & Arc
Go beyond basic measuring. Define a reference line or arc directly on site (by two points, three points, or center+radius) and perform offset stakeout instantly no complex calculations. Ideal for straight structures, curved buildings, road bends, and tunnel arches.

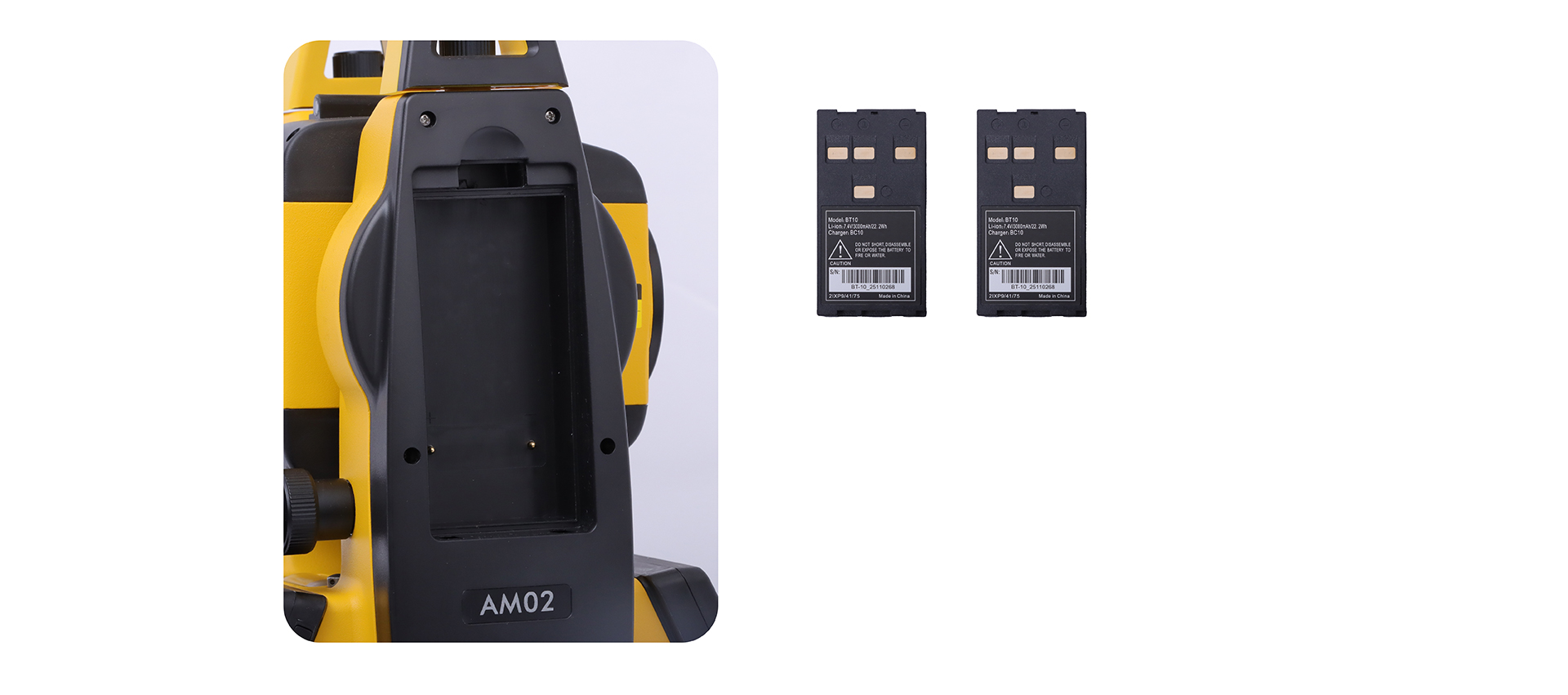

Long battery life
AM02 is powered by two 7.4V 30o0mAh batteries, each providing 8 hours of operation for a total of 16 hours of continuous fieldwork, supporting approximately 12,000 measurements per full cycle to meet demanding survey needs.

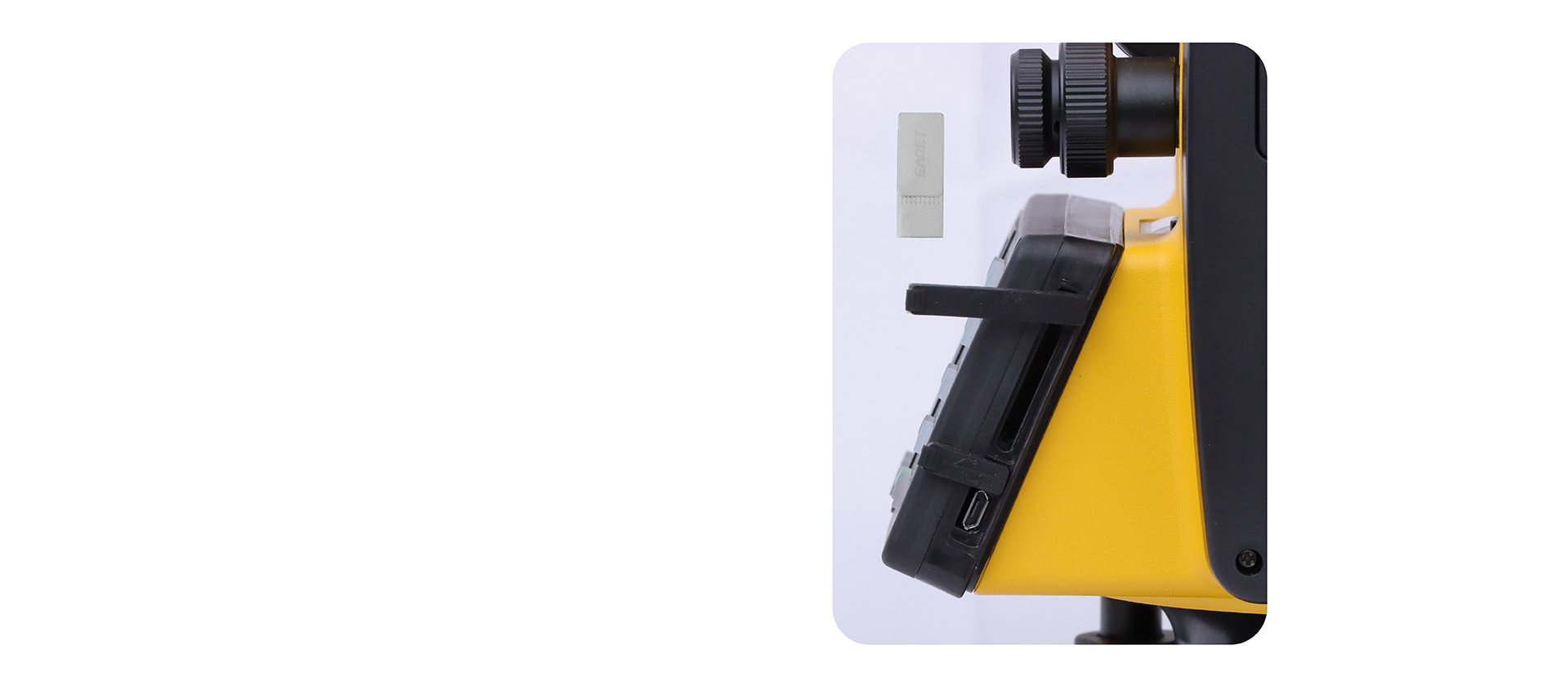

Flexible Connectivity
AMo2 total station features versatile connectivity including Bluetooth, RS232, and USB for seamless data transfer with ApekSurv, and offers substantial storage for up to 20,000 points to meet all field data needs.
| Angle measurement | |
| Angle measurement principle | Absolute Encoding |
| Minimum Reading | 1″/5″/10″(0.3mgon/1.5mgon/3mgon) optional |
| Angle Accuracy | 2'' |
| Distance measurement (Reflectorless) | |
| Range | 1000m |
| Accuracy | ±(3mm+2ppm) |
| Measurement time | Approximately 1.5s |
| Distance measurement (prism mode) | |
| Range | 5000m |
| Accuracy | ±(2mm＋2ppm) |
| Measurement time | Repeat/Tracking: 0.8s/0.3s |
| telescope | |
| Magnification | 30X |
| Field of View | 1°30′ (2.7m at 100m) |
| Minimum Focusing Distance | 1.5m |
| Reticle | illumination |
| compensator | |
| System | Dual-Axis Compensation |
| Compensation Range | ±3'' |
| Setting precision | 1'' |
| communication | |
| Internal Data Memory | Approx. 20,000 Points |
| interface | Standard RS232/SD card⁴ /Micro USB/USB flash drive |
| Wireless communication | Bluetooth |
| Data format | ASCII |
| operate | |
| Operating System | Real-Time Operating System |
| Display Screen | 2.8'' 240*320 pixel color display screen |
| Keyboard | 2 sides Alphanumeric backlit crystal keyboard |
| Plummet | |
| type | Laser point, 4 brightness levels adjustment |
| Centering Accuracy | 1mm at 1.5m instrument height |
| Power Supply | |
| Li-ion battery capacity | Rechargeable Li-ion battery 7.4V (DC) / 3000mAh |
| Working hours | 16 hours continuous angle measurement mode with 2 battery |
| Measuring Times | Approx. 12000 times |
| Environmental conditions | |
| Operating Temperature | -20℃ ~+50℃( -4℉ to +122℉) |
| Storage Temperature | -40℃ ~+70℃(-40℉ to + 158℉) |
| Temperature & pressure input | auto correction |
| Dust&Water Proof | IP55,95%, non-condensing |
| Size & Weight | |
| Size | 200 x 200 x 355 mm (7.68 x 7.28 x 14.37 in) |
| Weight | 5.6kg |
